SmartFusion2 SoC FPGA - Adaptive FIR Filter Demo

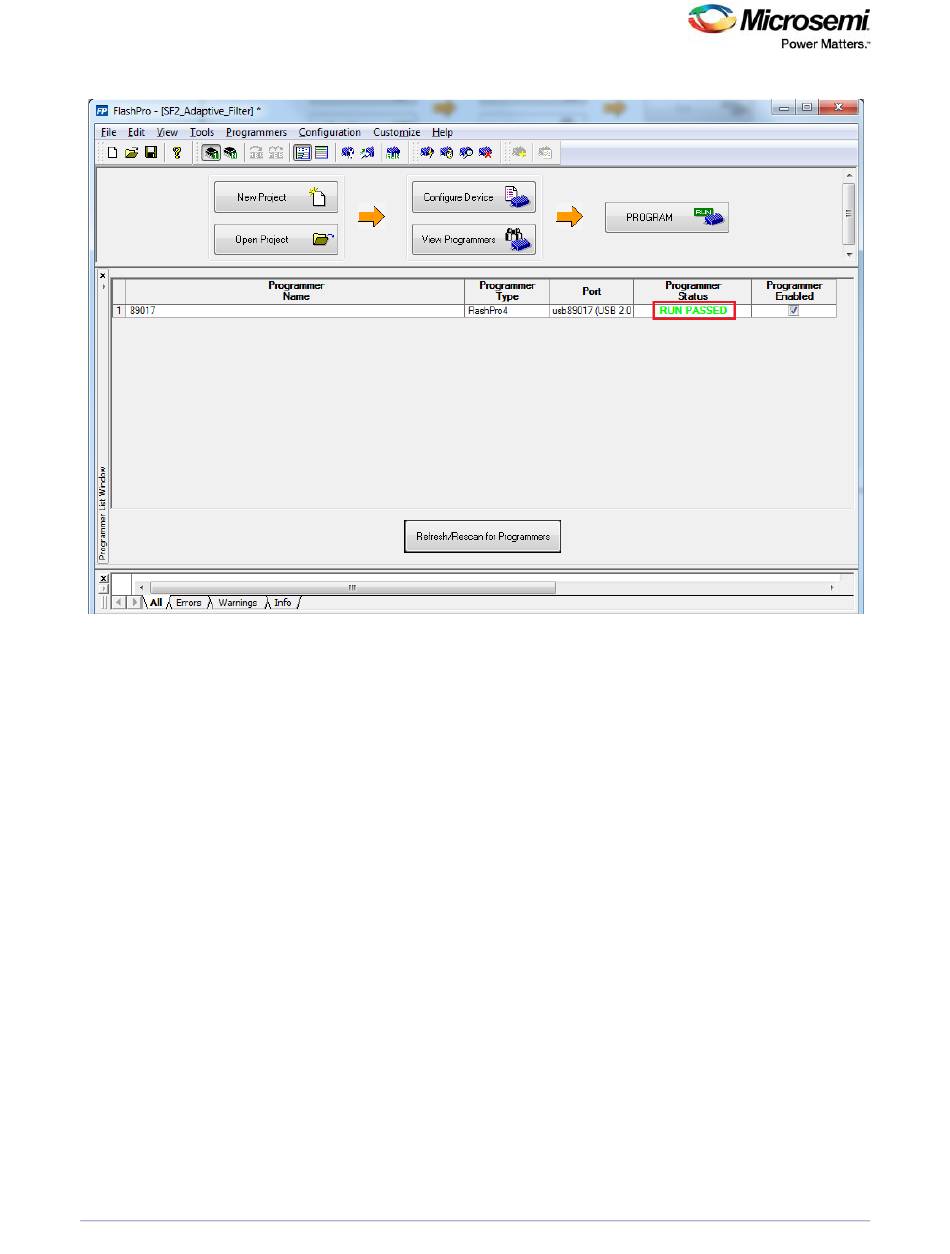

Figure 14 • FlashPro Project RUN Passed

2.6.3

Adaptive FIR Filter Demo GUI

The Adaptive FIR filter demo is provided with a user-friendly GUI that runs on the Host PC and

communicates with the SmartFusion2 Starter kit. The UART is used as the underlying communication

protocol between the Host PC and SmartFusion2 Starter kit or SmartFusion2 Security Evaluation kit.

The following figure shows the Adaptive FIR filter demo GUI.

DG0441 Demo Guide Revision 7.0
