SmartFusion2 SoC FPGA CoreTSE_AHB 1000 Base-T Loopback Demo
2.4.2
Connecting SmartFusion2 Security Evaluation Board to Host PC
The following steps describe how to connect the SmartFusion2 Security Evaluation Board to the host PC:
1.
After successful programming, switch OFF the SmartFusion2 Security Evaluation Board.
2.
Connect the host PC to the J13 connector on the SmartFusion2 Security Evaluation Kit using the
RJ45 cable.

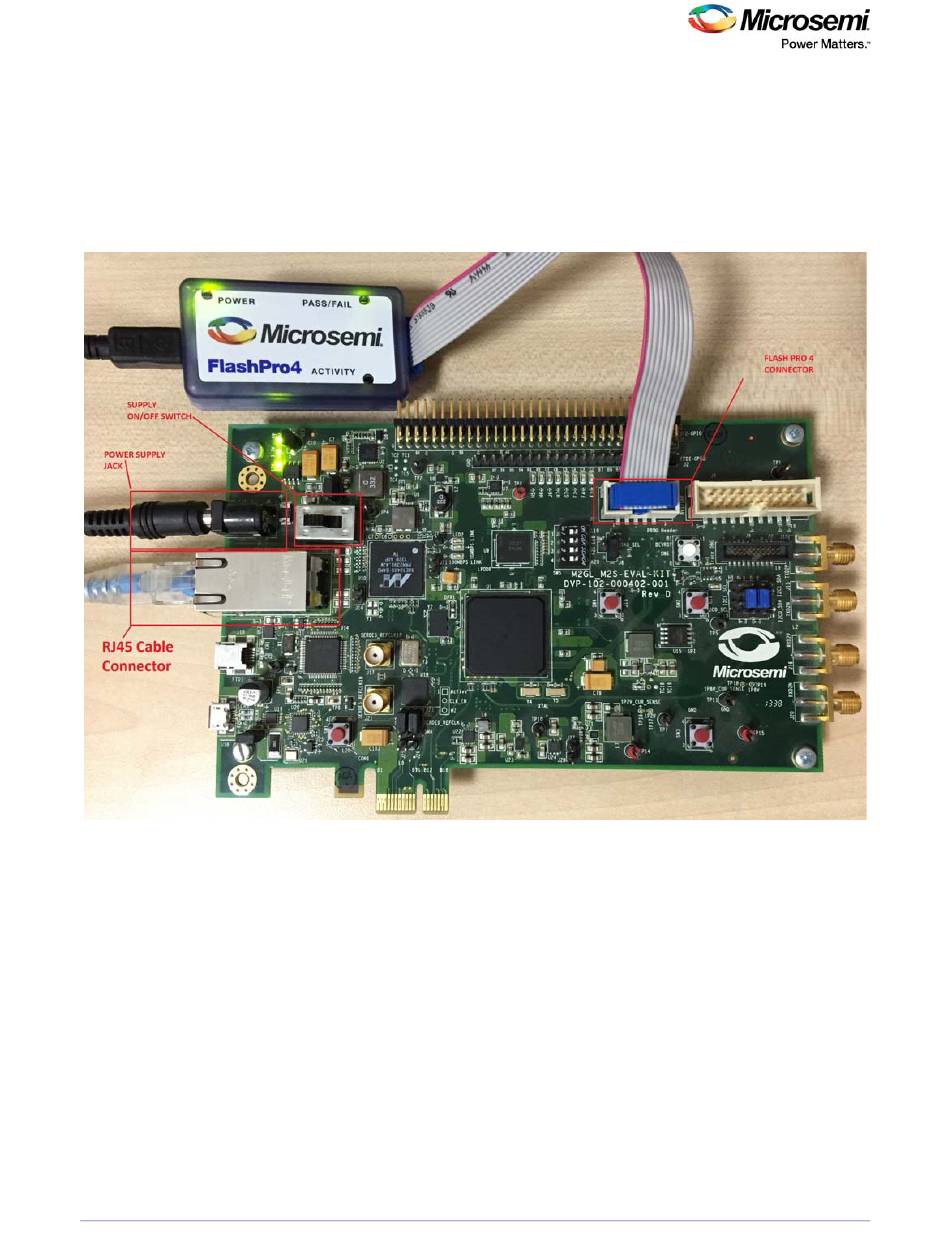

The following figure shows the SmartFusion2 Security Evaluation Kit board setup.
Figure 9 •
SmartFusion2 Security Evaluation Kit Setup
2.4.3
Running the Demo Design with Cat Karat and Wireshark on the
Hardware
1.
Switch ON the power supply switch, SW7.
2.
Install the Cat Karat packet software and Wireshark software on the host PC from the source files.
(<download folder>\ SF2_1000BaseT_loopback_demo_df \Source Files\)
DG0637 Demo Guide Revision 3.0
11
