SmartFusion2 SoC FPGA - Adaptive FIR Filter Demo

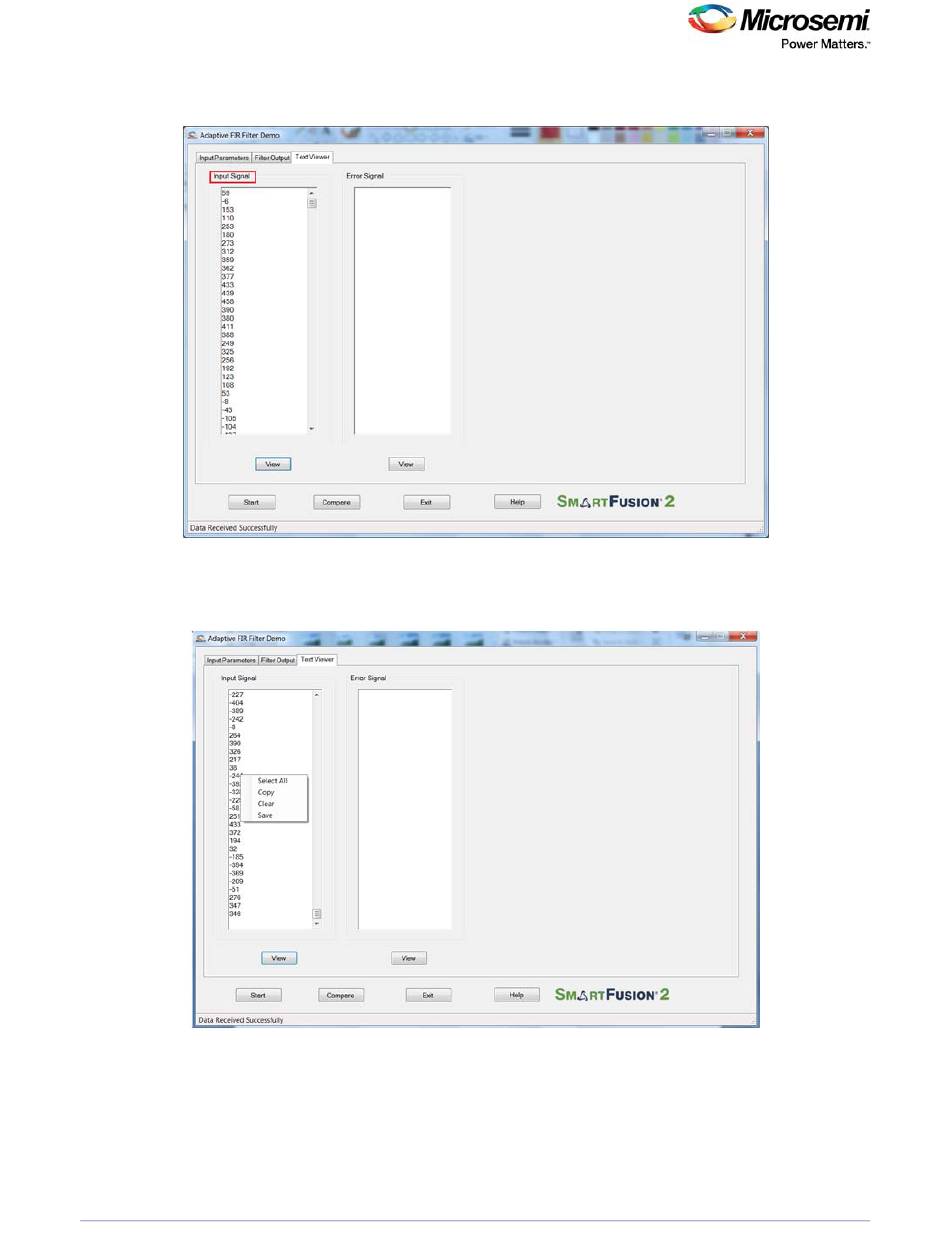

The following figure shows the Text Viewer tab showing the Input Signal values.
Figure 29 • Text Viewer: Input Signal Values
11. To save the Input Signal as a text file, right-click the Input Signal window. The Input Signal window
displays different options as shown in the following figure.
12. Click Save. Select OK to save the text file.
Figure 30 • Text Viewer - Coefficients Save Options
13. Click Exit to stop the demo, see the following figure.
DG0441 Demo Guide Revision 7.0 23
