SmartFusion2 SoC FPGA CoreTSE_AHB 1000 Base-T Loopback Demo
3.

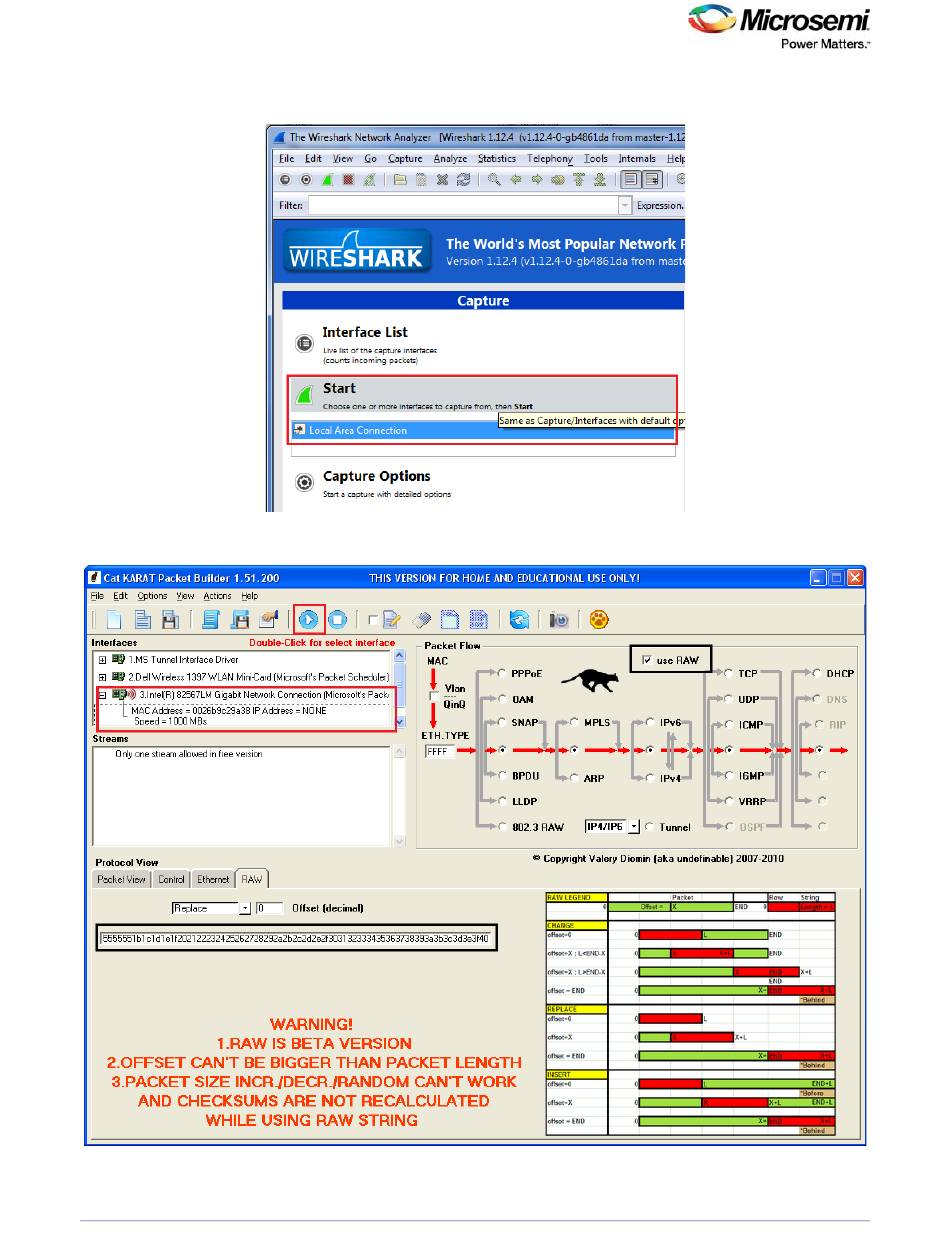

On the host PC, open the Wireshark network analyzer. Select Start as shown in
Figure 10 • Wireshark Network Analyzer
4.
On the host PC, open the Cat Karat software, as shown in the following figure.
Figure 11 • Cat Karat Packet Generate Window
DG0637 Demo Guide Revision 3.0
Figure 10,
page 12.
12
