Appendix: Running the Demo Design Using Spirent Test Center
3
Appendix: Running the Demo Design Using
Spirent Test Center
The following steps describe how to run the CoreTSE_AHB loopback demo using Spirent test center:
1.
Connect the SmartFusion2 Security Evaluation Kit to the slot 1 Ethernet port on the Spirent test
equipment using the RJ45 cable.
2.
On the host PC, open the Spirent test center configurator.
3.
Add port (Ethernet) in Spirent test center, as shown in the following figure.

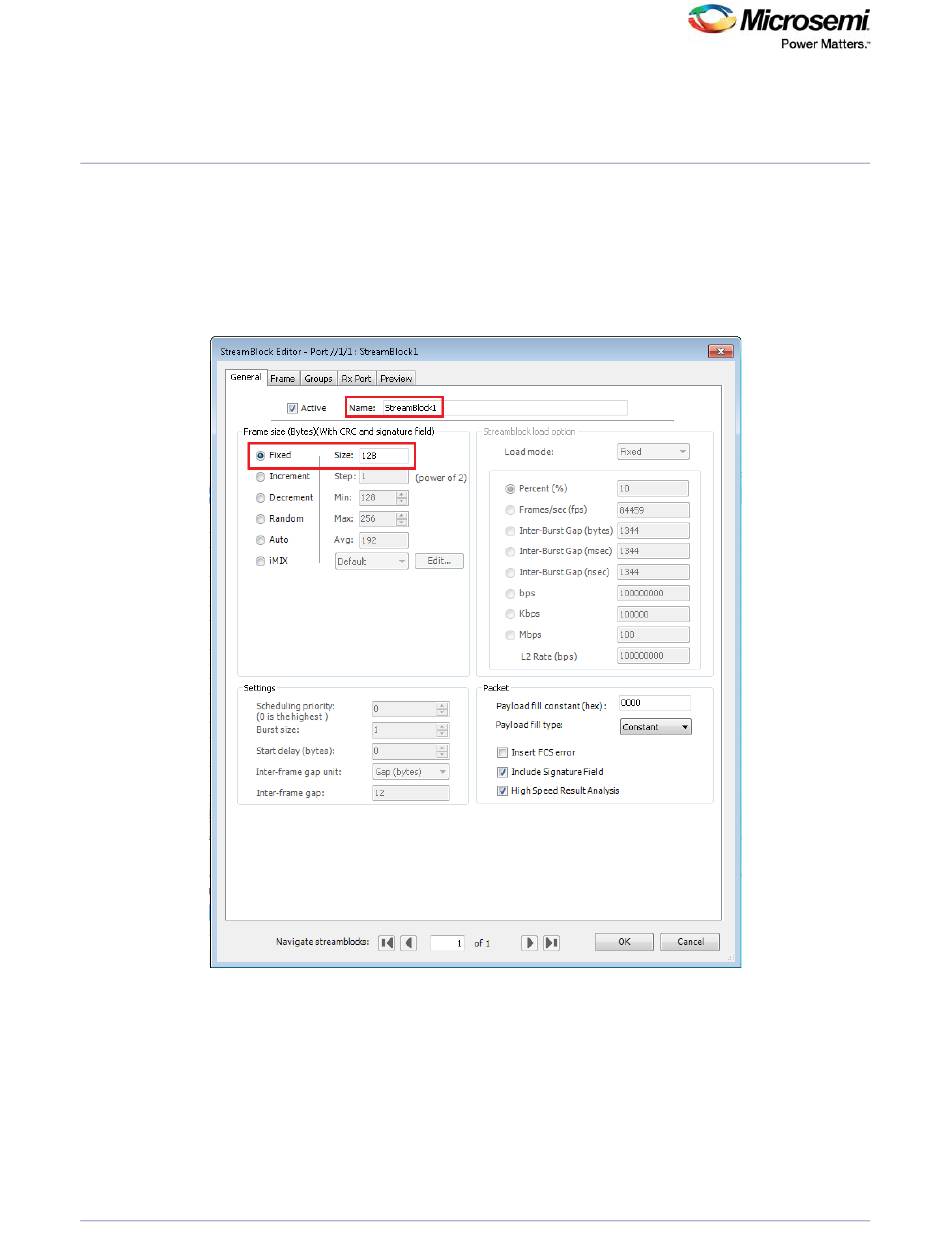

Figure 14 • Spirent Test Center Stream Block – General Tab
DG0637 Demo Guide Revision 3.0
14
