SmartFusion2 SoC FPGA CoreTSE_AHB 1000 Base-T Loopback Demo

Click Configure Device.

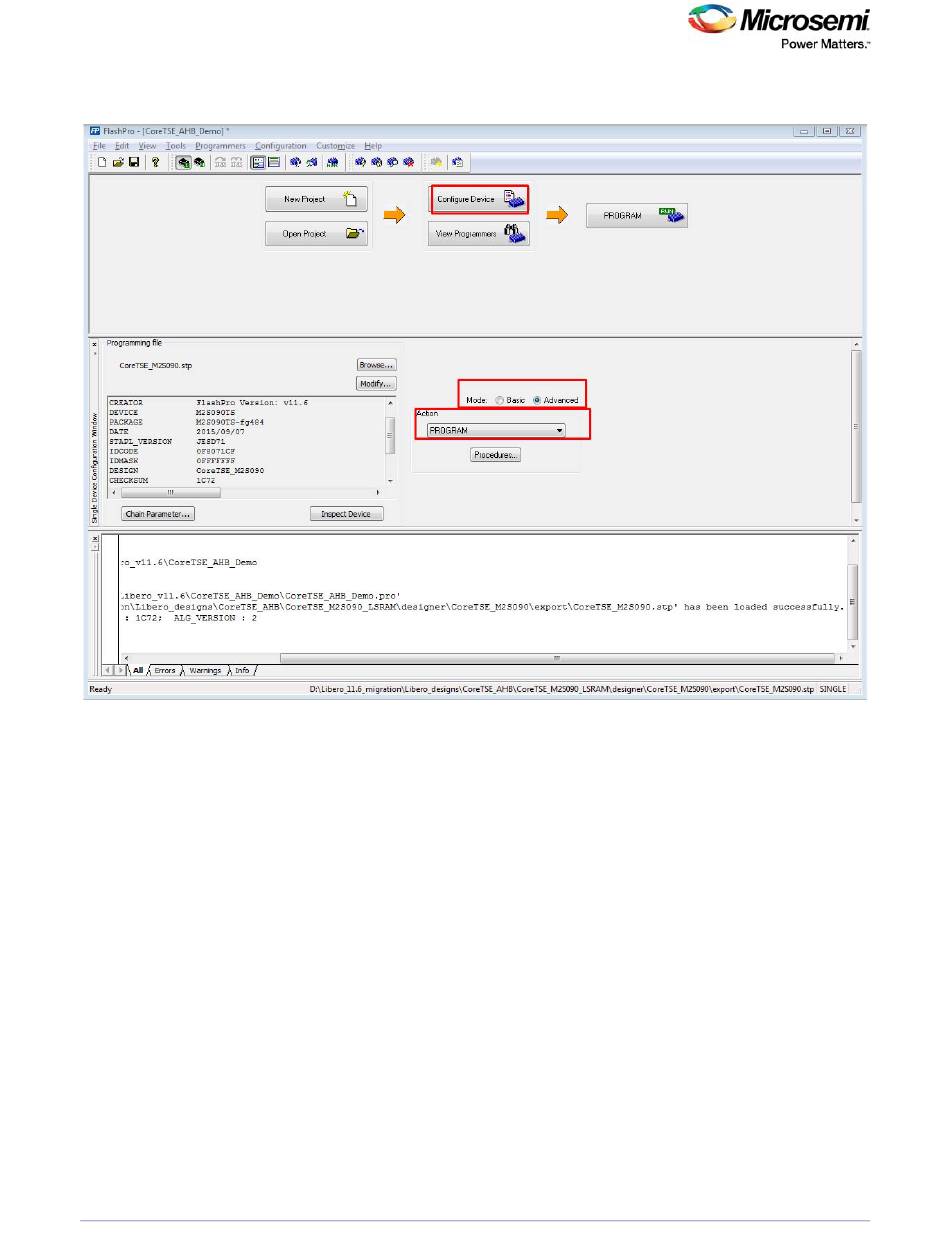

Figure 7 •

FlashPro Project Configuration

10. Click Browse, navigate to the location where the SF2_1000BaseT_Demo.stp file is located, and

select the file. The default location is:

<download_folder>\SF2_1000BaseT_loopback_demo_df\ProgrammingFile\

11. Select Advanced as the Mode, and select PROGRAM under Action.

DG0637 Demo Guide Revision 3.0
