SmartFusion2 SoC FPGA CoreTSE_AHB 1000 Base-T Loopback Demo
5. Under Protocol View, select the Control tab and enter the value 1 for Packets per Burst, as shown
in the following figure.

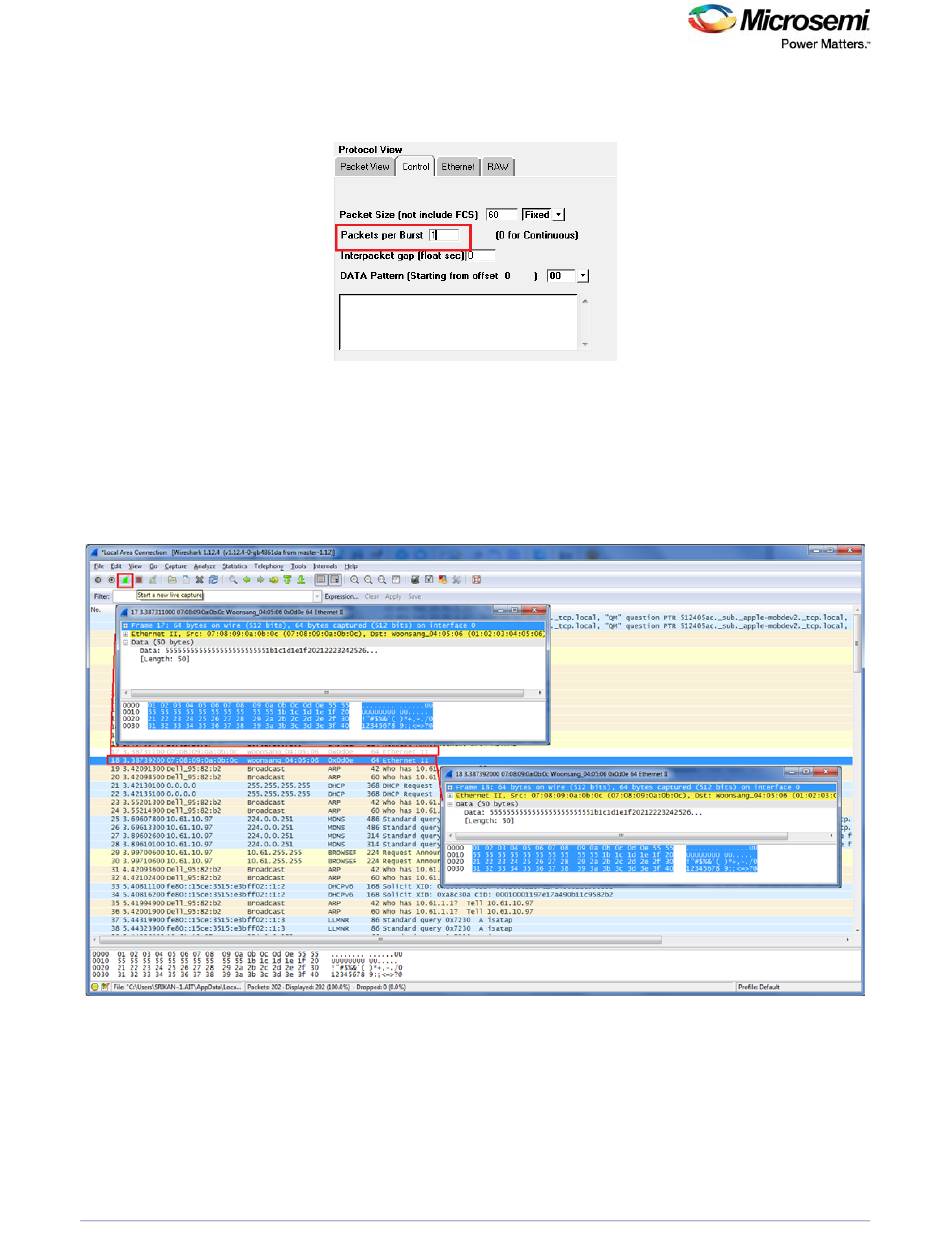

Figure 12 • Packet Flow Control
6. Under Packet Flow, select use RAW, as shown in
7. Under Protocol View, select the RAW tab and copy the Ethernet net packet from the source files
(<download folder>\ SF2_1000BaseT_loopback_demo_df \Source Files\Raw_packet.txt), as shown
in Figure 11,
8. Under Interfaces, select the Ethernet connection to the SmartFusion2 Evaluation board.
9. Select Start Transmit from the menu, as shown in
10. In the Wireshark software window, double-click Ethernet-II, as shown in the following figure. The
transmitted and received Ethernet packets are displayed.
Figure 13 • Wireshark Software Window
page 12.
DG0637 Demo Guide Revision 3.0
Figure 11, page 12.
Figure 11, page 12, to transmit the packet.
