11.1. Removal of the Lower Piston Assembly

Always remember to press
lower part of LABNET Excel electronic pipettor.
RESET
1. Press the
2. Loosen the lower part of LABNET Excel electronic pipettor by
unscrewing the connecting nut in counter-clockwise direction as shown
in Figure 11.
3. Pull the lower piston assembly downward slowly until the metal
cylinder lock appears as shown in Figure 12.
4. Lay the LABNET Excel electronic pipettor down on a flat surface.
Push the metal cylinder lock downward until you hear a click sound as
shown in Figure 13.
5. The lower piston assembly will come off easily and automatically as
shown in Figure 14.

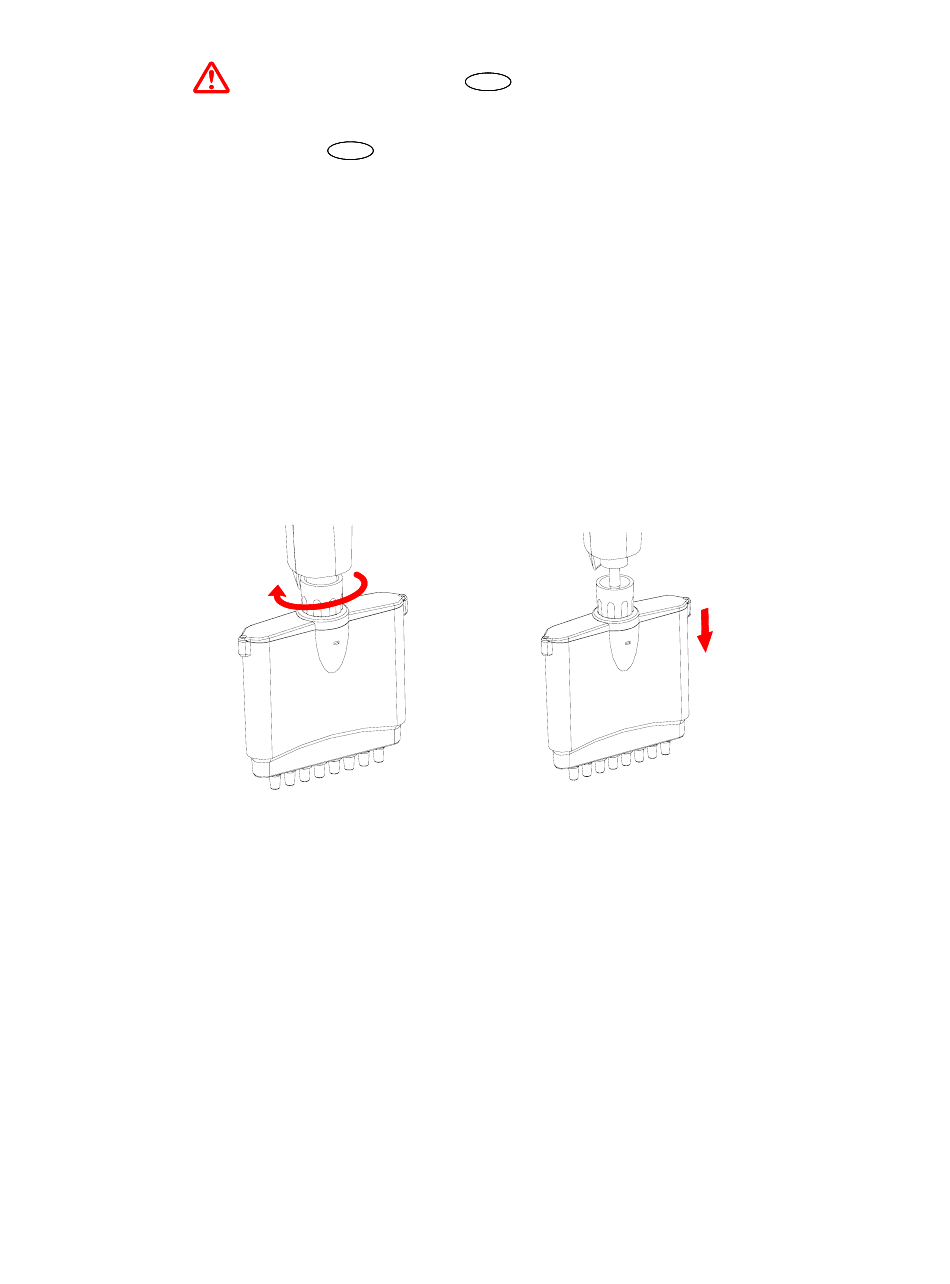

Figure 11: Loosen the connecting nut
by unscrewing counter-clockwise.
RESET
button before you disassemble the
button. Wait until you hear two beeps.
Figure 12: Pull the lower piston
assembly downward slowly until
the cylinder lock appears.
27
