- Page 1 Spectrafuge 16M Microcentrifuge User Manual C0160 C0160-100V C0160-230V Lit Code: M00001 Rev 2 August 2016...
- Page 2 About This Manual This manual is designed to assist you in the optimal usage of your Labnet 16M Microcentrifuge. The manual is available in English, French, German, Italian, Portuguese, and Spanish on our website at: www.labnetinternational.com/document-center Safety Precautions NEVER use the centrifuge in any manner not specified in these instructions.
-
Page 3: Table Of Contents
Table of Contents General Information Description Safety Precautions Technical Data Accessories supplied with unit Installation Unpacking the centrifuge Required space Installing the centrifuge Rotor and Rotor Maintenance Rotors and accessories Rotor maintenance Mounting and securing the angle rotors Removing the rotor Overloading rotors Operation Closing the lid... -
Page 4: General Information

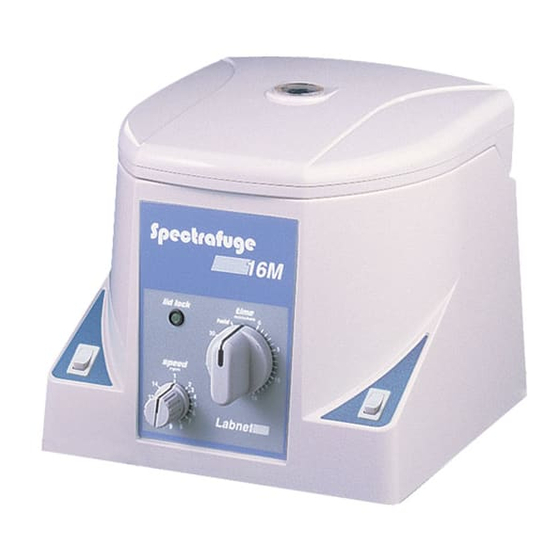

The Spectrafuge 16M is a small benchtop centrifuge designed for separation of various research samples. The motor is brushless and requires no routine maintenance. The Spectrafuge 16M is supplied with an 18 x 1.5ml rotor for micro samples. Adapters are available for tubes smaller than 1.5ml. The Spectrafuge 16M reaches speeds of up to 14,000rpm/16,000 x g. -
Page 5: Installation
Failing to place the timer in the off position may result in damage to the centrifuge and injury to personnel. Rotors and rotor maintenance Rotors and accessories The following accessories are available for the Spectrafuge 16M : Angle rotor for 18 x 1.5ml tubes Order no. Included with unit Tube measurement 1.5ml (10 x 40mm) -
Page 6: Rotor Maintenance
Adapter for 0.5ml tubes Order no. C1205 Tube measurement 8 x 30mm Max. speed 14,000rpm Centrifuging radius 6.6cm RCF (g-value) 14,462 x g Adapter for 0.4ml tubes Order no. C1206 Tube measurement 6 x 47mm Max. speed 14,000rpm Centrifuging radius 7.3cm RCF (g-value) 16,000 x g... - Page 7 Figure 1. Chamber and motor shaft Figure 2. Bottom of angle rotor Figure 3. Loading the rotor...
-
Page 8: Removing The Rotor
Never centrifuge strongly corrosive materials that may damage the rotors or accessories. Closing the lid After the rotor has been properly secured and loaded, close the centrifuge lid, making sure that the interlock has been engaged. Figure 4. Spectrafuge 16M Control panel layout... -
Page 9: Lid Release
Lid release Once the run has been completed and the rotor come to a stop, the lid will open automatically. If the lid does not open automatically, press the lid button. Note that the lid button will not operate while the rotor is spinning. WARNING: Do not attempt to open the lid of any centrifuge until the rotor has come to a complete stop. -
Page 10: Service And Maintenance
Service and Maintenance Centrifuge service The brushless motor in the Spectrafuge 16M requires no routine maintenance. Any required service should be performed by authorized, qualified personnel only. Repairs performed by unauthorized personnel may void the warranty. Cleaning the centrifuge Always keep the centrifuge housing, rotor chamber, rotor and rotor accessories clean. -
Page 11: Troubleshooting
Set speed and/or time Where to call Should you have any questions about the Spectrafuge 16M or its accessories, please call Labnet’s Customer Service Department at 732 417- 0700. Customer Service is staffed from 8:30am to 5:30pm, EST, Monday through Friday. Our 24 hour fax number is 732 417-1750. -
Page 12: Determination Of G-Values
Determination of g-values The centrifuging radius of the 1.5ml rotor is 7.3cm. See the “Rotor and accessories” section for the correct radius when using adapters and smaller tubes. The “Relative Centrifugal Force” chart can be used to determine g-values. To use this chart, find the radius value on the radius scale. Place the edge of a ruler on the value. -
Page 13: Symbols And Conventions
(WEEE), Labnet Spectrafuge 16M Centrifuge is marked with the crossed-out wheeled bin and must not be disposed of with domestic waste. Consequently, the buyer shall follow the instructions for reuse and recycling of waste electronic and electrical equipment (WEEE) provided with the products and available at the following link: www.corning.com/weee... -
Page 14: Warranty
LIMITED WARRANTY Labnet International Inc. warrants that this product will be free from defects in material and workmanship for a period of one (1) year from date of purchase. This warranty is valid only if the product is used for its intended purpose and within the guidelines specified in the supplied instruction manual. - Page 15 NOTES...
