Summary of Contents for Labnet Enduro Gel XL

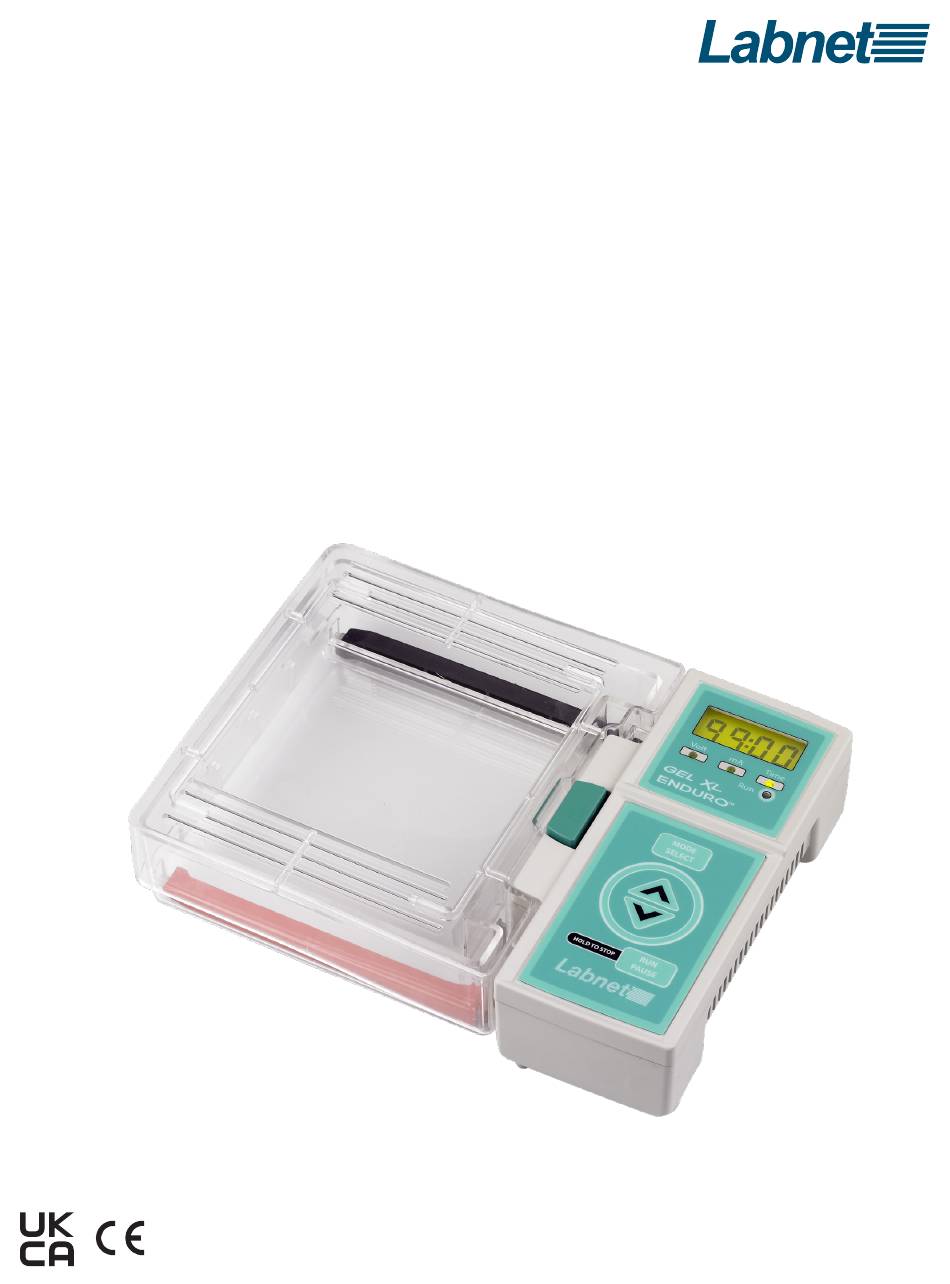

- Page 1 Labnet Enduro Gel XL ™ Instruction Manual Catalog Numbers: E0160 E0160-230V E0160-230V-UK...
-
Page 2: Table Of Contents
Table of Contents 1.0 Introduction ................. . .1 2.0 Symbols and Conventions . -
Page 3: Introduction

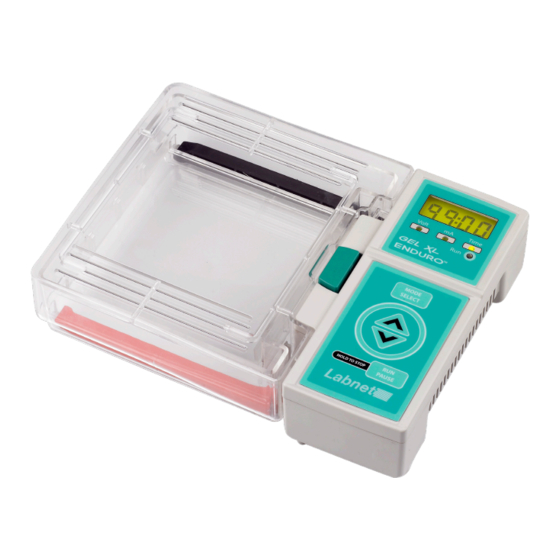

1.0 Introduction Labnet Enduro™ Gel XL is a gel electrophoresis solution with a compact design that redefines simplicity and efficiency. With its direct-connect power supply, quick gel casting, and user-friendly operation, the system ensures seamless performance for high throughput applications. -
Page 4: Accessories (Sold Separately)
No output without safety lid. Memory Function Automatic memory (the last used V and T) Temperature Range 5°C to 40°C (up to 80% RH at 31°C, decreasing linearly to 50% RH at 40°C) Protection Class IP21 LABNET ENDURO GEL XL... -
Page 5: Operating Instructions
The Labnet Enduro™ Gel XL is designed to be safe at least when operated under the following conditions: Indoor use Pollution Degree 2 Altitude up to 2,000 meters Installation Category II Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. -
Page 6: Preparation Of The Agarose Gel And Electrophoresis Buffer - Rna
37% formaldehyde. CAUTION: Formaldehyde vapors are toxic. Gel preparation should take place in a hood and solutions and gels containing formaldehyde should be kept covered when possible. 7. Proceed to Section 7.3 Casting the Gel. LABNET ENDURO GEL XL... -
Page 7: Casting The Gel
7.3. Casting the Gel 1. Place the gel casting stand on a lab bench. CAUTION: Cast agarose gels containing formaldehyde in a hood. 2. Insert the gel casting tray into the casting stand. If you are using the 12 x 6 cm gels place the spacer in the center of the casting stand, then insert the two 12 x 6 cm landscape gel trays. -
Page 8: Electrical Connections To The Safety Lid
7.7. Sample Electrophoresis The maximum suggested applied voltage for the electrophoresis of DNA in agarose gels using the Enduro Gel XL is 150V. In a 1% TBE gel, this translates into a run time of approximately 1 hour. Lower voltages may be used, of course, and as a general rule, a 70V run will take twice as long as a 140V run. -
Page 9: Troubleshooting
8.0 Troubleshooting Should you have a question about the operation of the Labnet Enduro™ Gel XL or if service is required, contact Customer Service. Do not send in a unit for service without first calling to obtain a repair authorization number. Should the unit require return for service, it should be properly packed to avoid damage. -
Page 10: Appendix
5X Stock Solution 50% Glycerol 1 mM EDTA, pH 8.0 100 mM Na EDTA 0.25% Bromophenol blue 1% SDS 0.25% Xylene Cyanol 0.1% Bromophenol blue, pH 8.0 50% Glycerol LABNET ENDURO GEL XL... -
Page 11: Physical Properties Of Electrophoretic Plastics
Physical Properties of Electrophoretic Plastics Wavelength, nm Figure A. UV Transmission characteristics of UV gel tray. The UV transmittant tray is ideal for monitoring the progress of electrophoresis without removing the gel from the tray. Figure A above delineates the absorption specifications of the UV transmittant plastic gel tray. References 1. - Page 12 To request certificates, please contact us at www.labnetlink.com. Warranty/Disclaimer: Unless otherwise specified, all products are for research use or general laboratory use only.* Not intended for use in diagnostic or therapeutic procedures. Not for use in humans. These products are not intended to mitigate the presence of microorganisms on surfaces or in the environment, where such organisms can be deleterious to humans or the environment.
