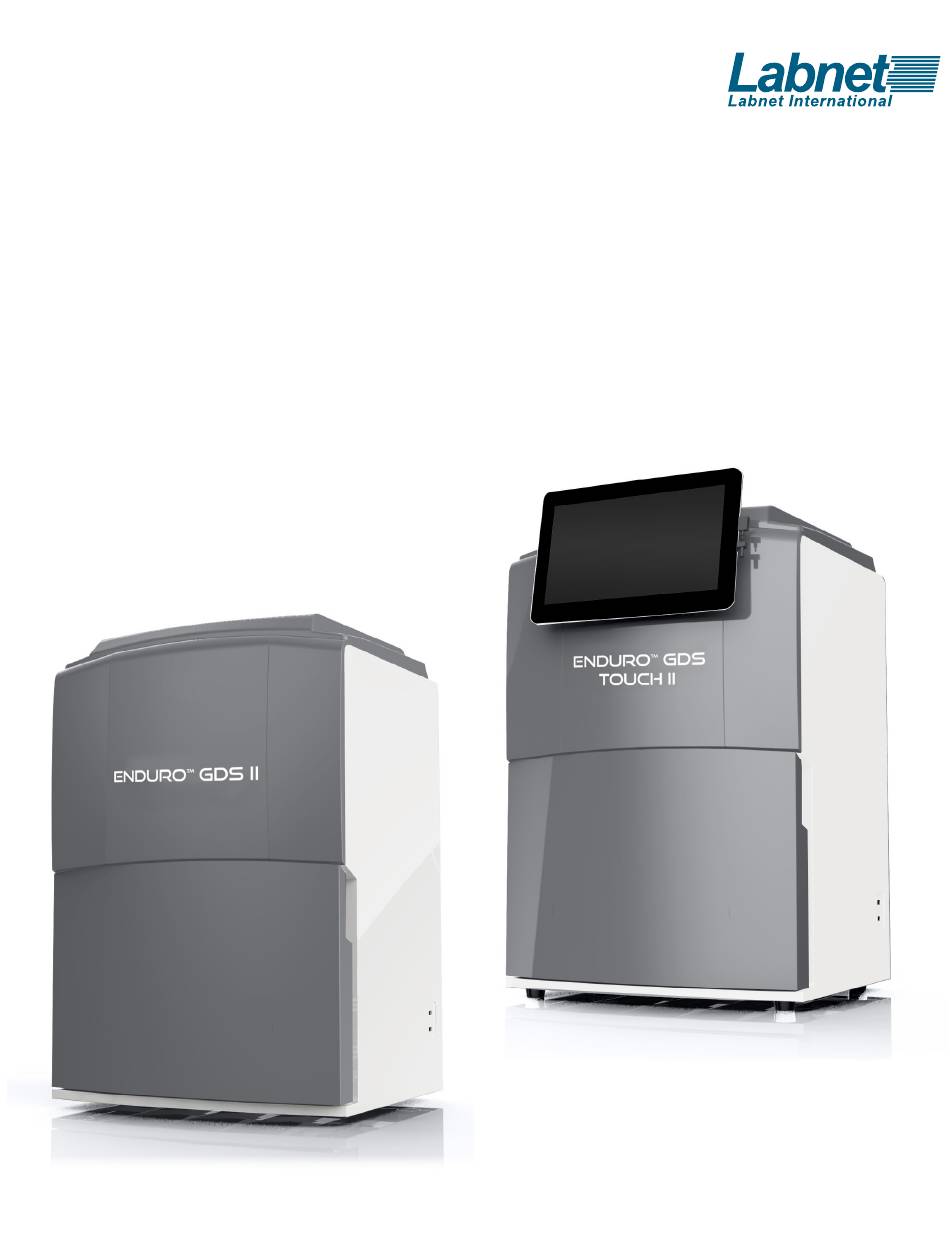

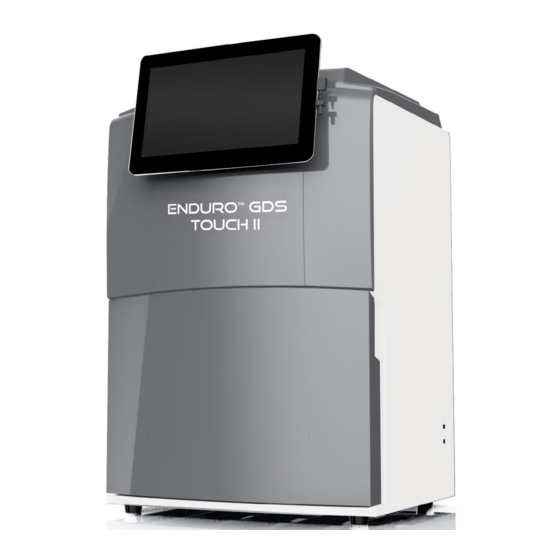

- Page 1 Labnet Enduro GDS II and Enduro GDS Touch II ™ Gel Documentation System Instruction Manual Catalog Numbers: GDS2-1302 GDS2-1365 GDST2-1302 GDST2-1365...
-
Page 2: Table Of Contents
5. Labnet Enduro™ GDS II Gel Documentation System Installation Guide ...... -
Page 3: Introduction
Voltage Setting Information The Labnet Enduro GDS II and Enduro GDS Touch II systems have a power supply that automatically chooses the correct voltage for your country or region. -
Page 4: Safety And Regulatory Compliance
2. Safety and Regulatory Compliance Important Safety Information Please read these instructions before operating the Labnet Enduro™ Gel Documentation Systems: Enduro GDS II-302 and Enduro GDS II-365 (Cat. Nos. GDS2-1302 and GDS2-1365, respectively), and the Enduro GDS Touch II-302 and Enduro GDS Touch II-365 (Cat. Nos. GDST2-1302 and GDST2-1365, respectively). UV Safety Precautions Because ultraviolet (UV) radiation can cause serious CAUTION damage to unprotected eyes and skin, we recommend wearing UV glasses or a face shield. -
Page 5: Specifications
3. Specifications Labnet Enduro™ GDS II Labnet Enduro GDS Touch II Labnet System Gel Documentation System Gel Documentation System Camera 2.7 MP image resolution 2.7 MP image resolution Lens f/1.8 f/1.8 Light Sources Epi White Epi White 302 or 365 nm Transilluminator... -
Page 6: Labnet Enduro™ Gds Ii Gel Documentation System Installation Guide
5. Labnet Enduro ™ GDS II Gel Documentation System Installation Guide On the USB, find the folder “Enduro Imaging Files\ Enduro_v_XXX” and open it. Double click on the Setup file. Remove the Labnet Enduro Identify the Labnet USB and (You may see a message pop Click Next to begin the Setup GDS II Gel Documentation connect it to a Microsoft®... - Page 7 5. Labnet Enduro ™ GDS II Gel Documentation System Installation Guide (continued) Find the “Master” folder within the “System Calibration Folder.” Copy the Master folder, and paste it in C:\Enduro Imaging Files\Enduro_v_XXX. When asked if you would like to replace the existing folder, select Yes.
-
Page 8: Labnet Enduro Gds Touch Ii Gel Documentation System Installation Guide
6. Labnet Enduro ™ GDS Touch II Gel Documentation System Installation Guide Remove the Labnet Enduro GDS Locate the tablet computer. Remove the wing nuts from Mount the tablet on the Touch II Gel Documentation the back of the tablet. -
Page 9: Image Acquisition
3. Close the cabinet door. 4. Select your light source. Here is a quick guide to select your light source: Labnet Enduro™ GDS II Labnet Enduro GDS Touch II System Gel Documentation System Gel Documentation System EtBr Gel... -
Page 10: Overview Of Software Features
8. Overview of Software Features Home Tab Open Image Info Open a previously saved image. Captures some of the information on how your image was captured, including the date and time captured, and exposure time. Additionally, it tells you the light source and calibration value. Save Save allows you to perform one of three actions: Zoom In... - Page 11 Select ROI then select Image Capture – this Epi Blue results in a final cropped imaged Turns on the Epi Blue light source. Select ROI then select Auto Exposure – this (Labnet Enduro™ GDS Touch II Gel results in auto exposure calculations only Documentation System only) influenced by your region of interest. Trans White Image Capture Optional –...
- Page 12 8. Overview of Software Features (continued) Annotations Tab The annotations tab lets you annotate or draw on an open image. Pencil Pointer Use this to free-hand draw on the image. This is the object selector. It allows selection of text boxes, objects, lines, etc., in order to edit or delete them.
-
Page 13: Optional Accessories
Labnet Enduro GDS Touch II-302 Gel Documentation System GDST2-1365 Labnet Enduro GDS Touch II-365 Gel Documentation System GDS2-WLCS Gel Documentation System White Light Conversion Screen for Labnet Enduro GDS II GDS2-GCT Gel Carrying Tray for Labnet Enduro GDS II Gel Documentation System GDS2-GCS... -
Page 14: Product Disposal
11. Product Disposal According to Directive 2012/19/EU of the European Parliament and Council of 4th July 2012 on waste and electronic equipment (WEEE) as amended, the Labnet Enduro™ GDS II and Enduro GDS Touch II Gel Documentation Systems are marked with the crossed-out wheeled bin and must not be disposed of with domestic waste. Consequently, the buyer shall follow the instructions for reuse and recycling of waste electronic and electrical equipment (WEEE) provided with the products and available at www.corning.com/weee. - Page 15 Tewksbury, MA 01876 f 65 6735-2913 f 91 124 4604099 t 800.492.1110 t 978.442.2200 f 978.442.2476 www.corning.com/lifesciences Labnet International is a subsidiary of Corning Incorporated. For a listing of trademarks, visit www.corning.com/clstrademarks. All other trademarks are the property of their respective owners.
