CDM-570L Satellite Modem with IP Module
16.2.9.2.5 Compression Statistics

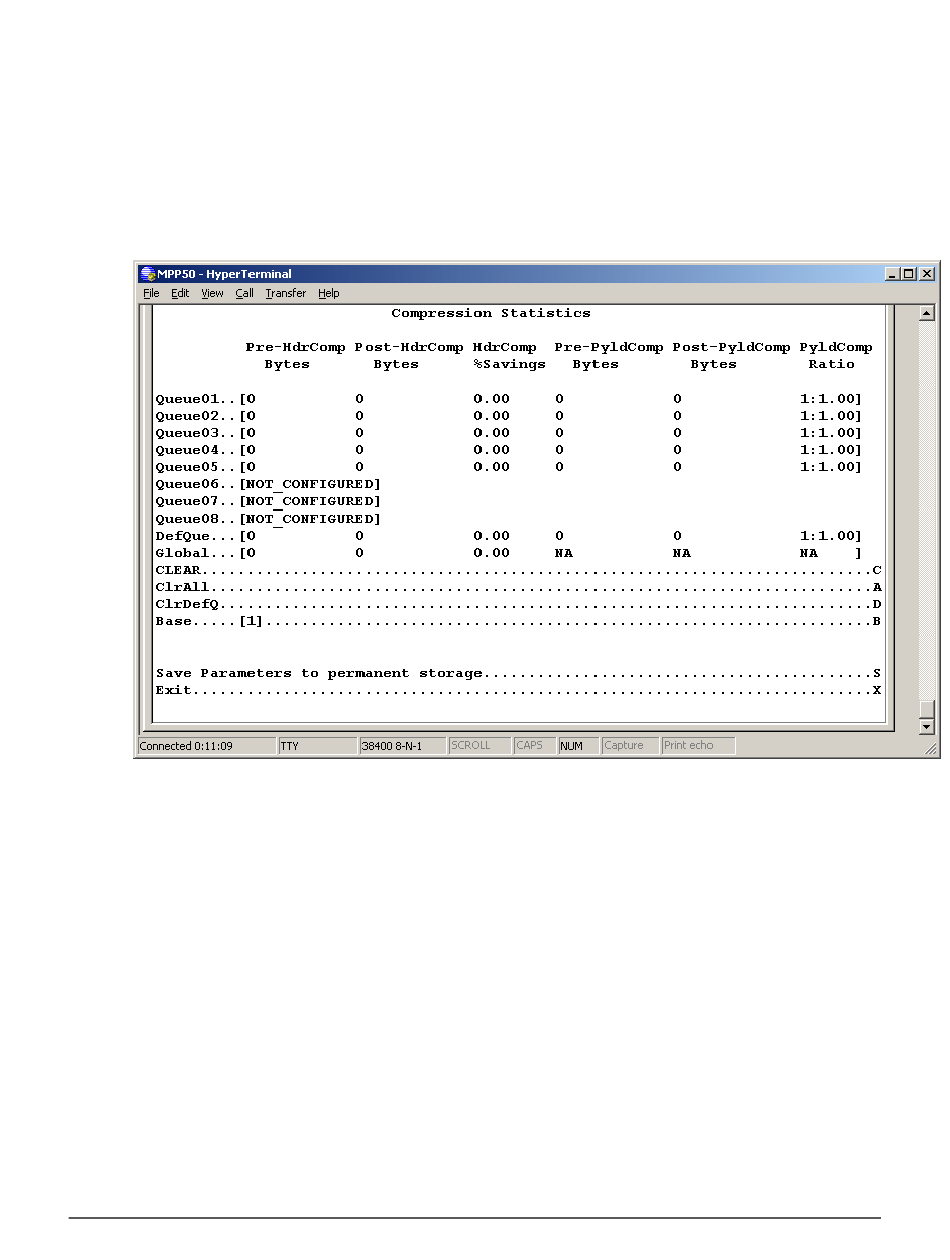

The Compression Statistics page is activated from the Statistics Menu page . The
Compression Statistics page displays counts of the number of bytes before and after for
both Header and Payload Compression. For Header Compression, the percentage of
bandwidth savings is displayed. For Payload Compression, the effective compression
ratio is displayed.
The Compression Statistics page contains the following options/fields:
Note: Although the QoS option is not required to use Header or Payload Compression, the
Compression Statistics are displayed by QoS Rule flow Queues. If QoS is not enabled, all
the Compression Statistics will fall within the Global Queue.
