CDM-570L Satellite Modem with IP Module

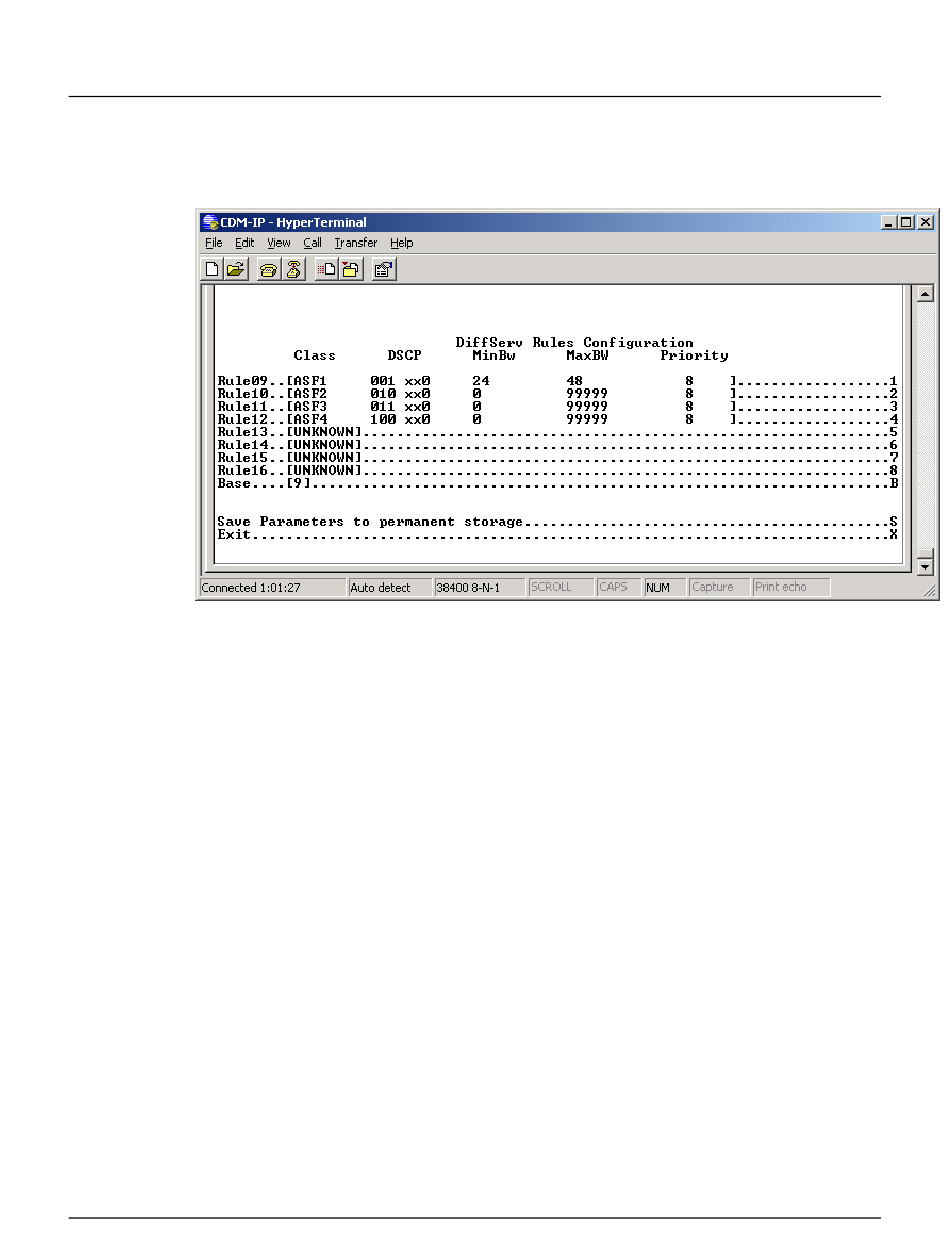

16.2.4.2 QoS Configuration Page – DiffServ Mode
The QoS Rules Configuration page is activated from the QoS Configuration page .
In DiffServ Mode, the IP Module will prioritize all traffic by the DSCP value contained
within the IP header of each packet. All packets that do not have a DSCP value will be
placed in the Default Queue and have a Priority of 9.
Configuration of DiffServe Rules is only allowed for Assured Forwarding Classes 1-4
(Rule 9-12), where a Minimum and Maximum Bandwidth can be assigned.
See Section 15.4.5 Quality of Service for a more detailed description of this QoS option.
208
Revision 1
MN/CDM570L.IOM
