Motion 4000

System CAN Bus

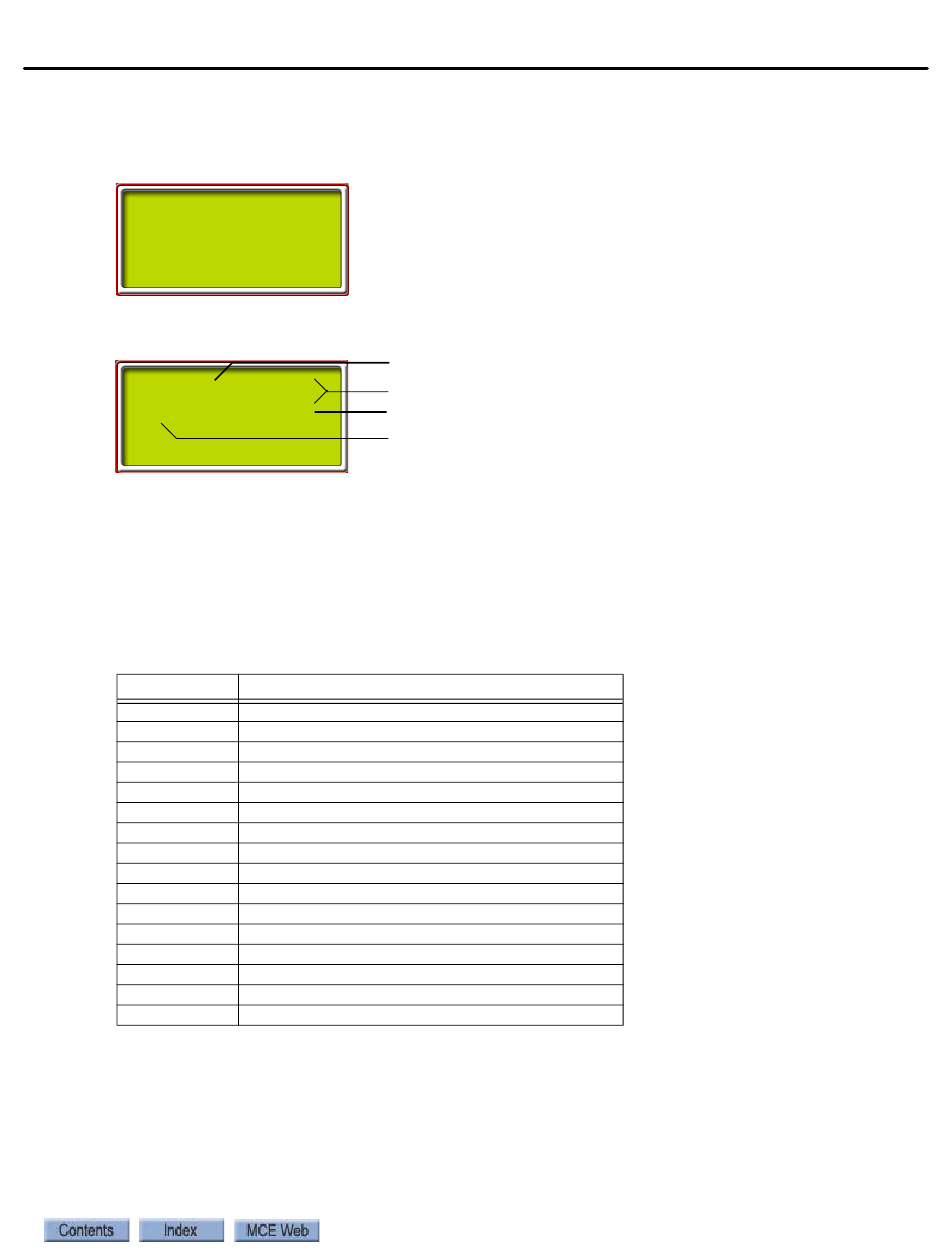

The System CAN Bus/Data Viewing screen allows you to check the working status of the inputs
and outputs of any Car Panel Interface board in the system.
SYSTEM CAN BUS
*DATA VIEWING*
• Press S to enter the menu
CID| 00 00 00 00
1C1| 0A 10 00 01
• Use the + or - buttons to increment/decrement address digit value
• Use the S button to move from digit to digit
• As soon as a valid ID is on the screen, the CAN data from that ID will be visible as the
hex data for each CAN byte changes.
• With the desired ID selected, you can place a call from the affected control panel, or
press a Door Open button, etc. and view the data transfer on the CAN bus.
Table 4.16 MC-CPI Board Addresses
ID
1C0
1C1
1C2
1C3
1C4
1C5
1C6
1C7
1C8
1C9
1CA
1CB
1CC
1CD
1CE
1CF
If CAN data is not appearing: Please refer to "Status and Error Messages" on page 5-3, entry
"
MPI A or B LANDING SYSTEM COMM LOSS
troubleshooting information.
Byte 0
CAN Data Bytes in Hex
Byte 7
Three digit MC-CPI address (see table below)
DATA
Output activity CPI board "0"
Input activity CPI board "0"
Output activity CPI board "1"
Input activity CPI board "1"
Output activity CPI board "2"
Input activity CPI board "2"
Output activity CPI board "3"
Input activity CPI board "3"
Output activity CPI board "4"
Input activity CPI board "4"
Output activity CPI board "5"
Input activity CPI board "5"
Output activity CPI board "6"
Input activity CPI board "6"
Output activity CPI board "7"
Input activity CPI board "7"
" for relevant CAN connection car-to-controller
