Installation
To change the top mounting arm from left to right side:
1. Set the hanger arm assembly on a working surface so that the hanger plate is on your
right.
2. Remove the two 1/2" bolts that secure the top hanger plate.
3. Flip the plate top-to-bottom so that the tape attachment hole is on the bottom.
4. Reassemble with the hanger plate extending beyond the end of the bracket by about
1 and 1/4 inches.
5. Torque the 1/2" bolts to 20 ft-lbs.

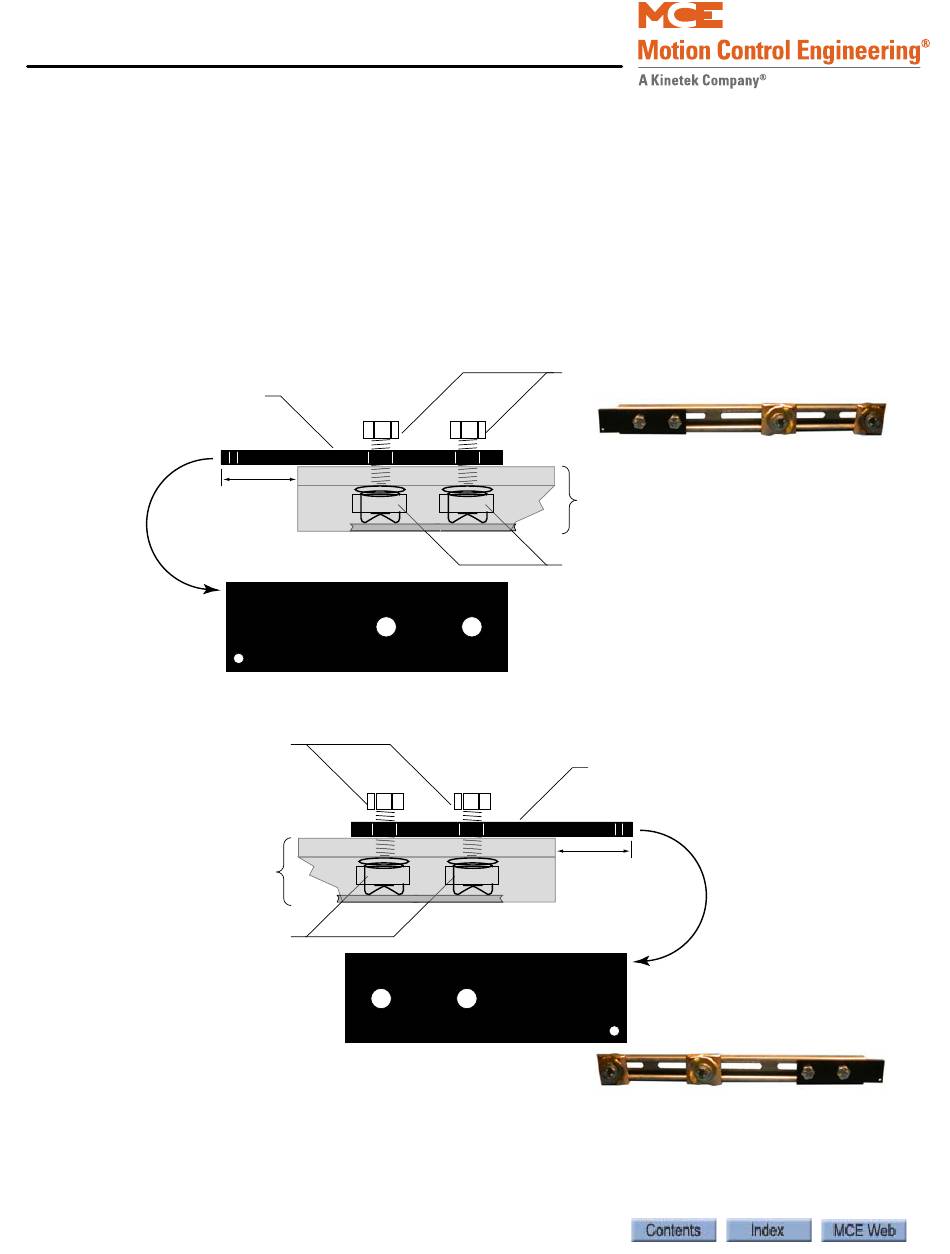

Figure 2.31 Changing the Top Mounting Arm from Left to Right Side
Hanger plate
1-1/4 inches
1/2" x 7/8" bolts
Channel
1/2" twirl nuts
2-80 Manual # 42-02-2P24
LEFT
RIGHT
1/2" x 7/8" bolts
Channel
1/2" twirl nuts
Hanger plate
1-1/4 inches
