Final Adjustments

How to access/set the F7 parameters:

Important

on the HC-CTL board. Before you can access F7 parameters, you must be on Inspection mode
and set the jumper appropriately:
1. On the HC-MPU board, place Function Switch F7 in the ON (up) position.
2. Press the N push button to begin. DOWNLOADING PARAMETERS FROM MPU is
scrolled followed by parameter zero, ADJUST FLOOR 01F POSITION....
3. The parameters are numbered 0 through xxx. Press the N push button to advance to the
next parameter. Press and hold the N push button to advance at high speed. Press the N
plus minus (-) push buttons to move to the previous parameter.
4. Use the plus (+) and minus (-) push buttons to change the parameter setting.
5. When you have finished setting parameters, press the S push button to exit the menu.
ADJUST COMPLETE, PRESS (S) TO STORE is scrolled on the display. Press the S push
button to store your changes. STORING VALUES... is displayed followed by VALUES
STORED.

How to Reset Excessive Faults

Many of the faults generated while performing acceptance tests are self-resetting once the fault
condition is corrected. However, this controller has excessive faults logic which will generate an
EXCESSIVE FAULTS SHUTDOWN if more than the established limit of faults occur within the
circumscribed period of time. To reset this fault:
• Press the Fault Reset button on the HC-CTL board.
3-10 Manual # 42-02-2P24

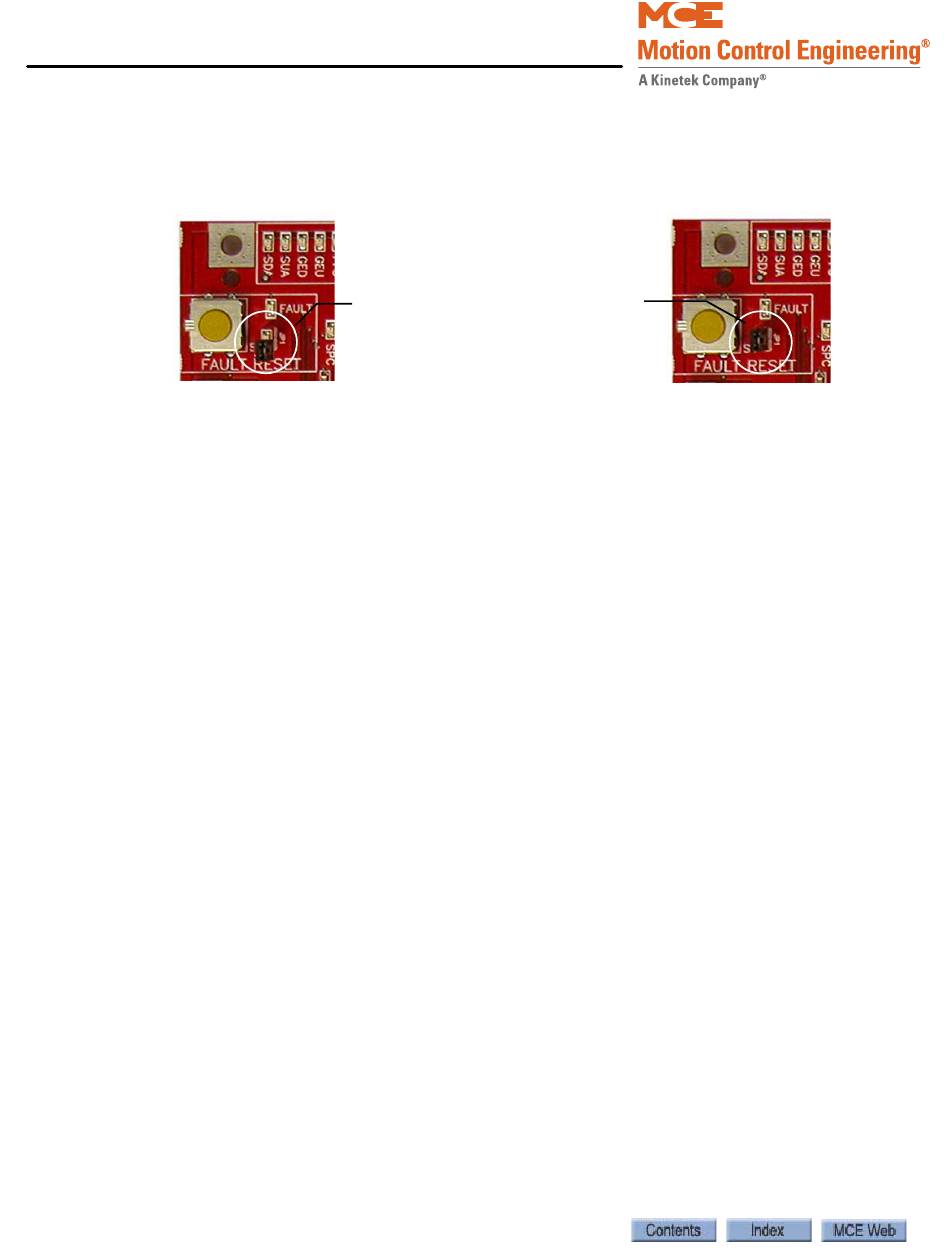

Once set at the factory, F7 parameters are protected by positioning a jumper
F7 PROTECTED
F7 SETTABLE
