User Interface

Viewing The Building Security Menu

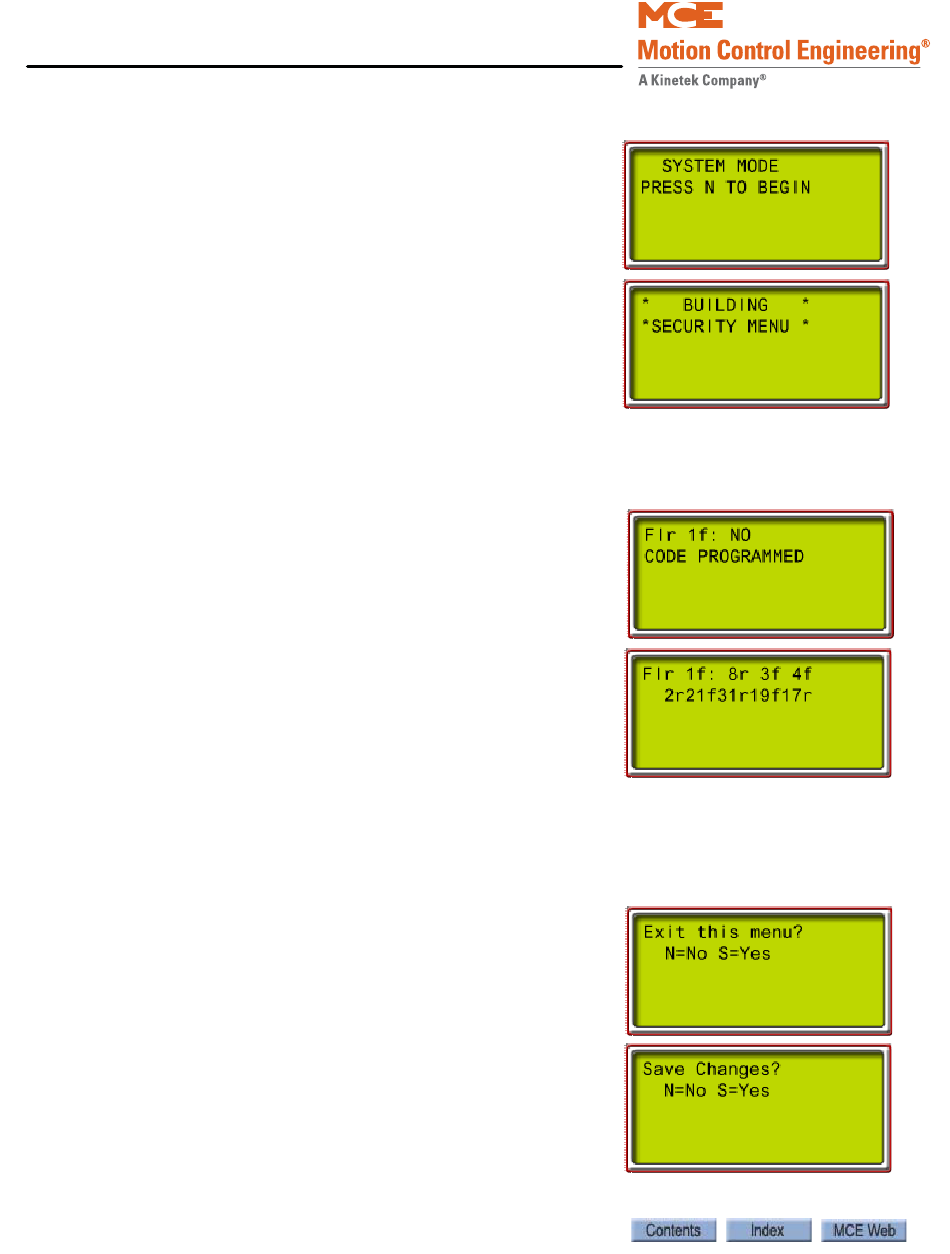

1. Place the F3 switch in the up position (all other
switches down). The following display appears:
2. Press the N push button. The following display
appears:

Programming And Viewing The Security Codes

1. Press S to start changing or viewing Security codes.
If no code has been programmed, the computer dis-
plays NO CODE PROGRAMMED for that particular
floor.
Press S again to start programming the Security code.
If a code has already been programmed, the com-
puter displays the security code with the floor num-
ber blinking.
2. Press + to increment or
ber.
3. Press S to move to the first character (COP button to
be pressed) of the security code. Use + or
4. Repeat until the desired number of characters are programmed (maximum 8). If any
character is left blank, or after all eight characters have been programmed, the S button
will return the cursor to the floor number.
5. Continue to program Security codes for all floors.
You may exit the Building Security Menu at any time
by pressing the N button. When N is pressed, the
LCD will display:
6. Press S to exit or N to return to the previous display.
If S is pressed, the following will appear (if changes
have been made).:
7. Press S to save or N to exit without saving (previous
codes will remain in effect if changes are not saved).
4-54 Manual # 42-02-2P24
–
to decrement floor num-
–
to change value.
