Controller System Menu - Motion Control Engineering Motion 4000 Manual

Motion 4000

Controller System Menu

This menu provides real time position and speed information and allows you to bypass faults in
both Automatic and Inspection operating modes when required for system tests. It also pro-
vides access to a data trap required by ASME A17.2000 code.
• AUTOMATIC MODE FAULT BYPASS. JUMPER MUST BE INSTALLED TO ACTIVATE.
• In order to activate fault bypass during normal, automatic mode

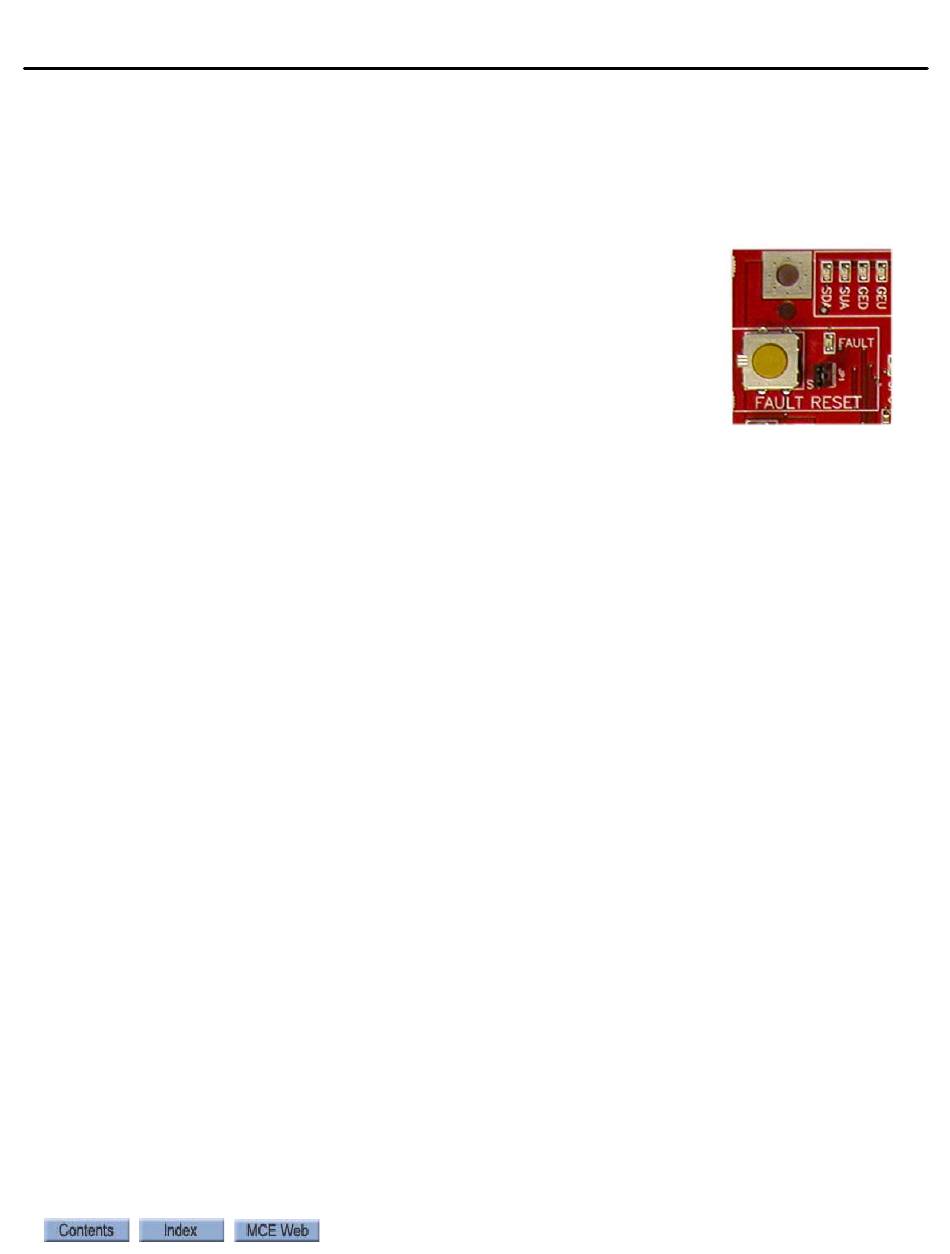

operation, a jumper must also be installed on Fault Reset
jumper J1 on the CTL board. When faults are bypassed, they will
continue to be displayed but the controller will not react to
them.
• INSPECTION MODE FAULT BYPASS. JUMPER MUST BE
INSTALLED TO ACTIVATE.
• In order to activate fault bypass during inspection mode operation,
a jumper must also be installed on Fault Reset jumper J1 on the
CTL board. When faults are bypassed, they will continue to be displayed but the controller
will not react to them.
• ELGO A: 0mm
ELGO B: 0mm
• Displays the raw position reported by the two (A and B) sensors in the ELGO landing
system sensor head. Useful to check functionality and travel direction. The displayed
positions will be about 160 mm or 240mm apart depending upon the Elgo system
used.
• POSTN: 0.0 IN
SPEED: 0 FPM
• Displays current car position in inches above the bottom floor level position and the
car speed in feet per minute.
F3: System Mode
