Getting started with the XBee Smart Modem Development Kit

Connect the hardware

1. The XBee Smart Modem should already be plugged into the XBIB-U-DEV board.
2. The SIM card should be already be inserted into the XBee Smart Modem. If not, install the
SIM card into the XBee Smart Modem.
WARNING! Never insert or remove the SIM card while the device is powered!

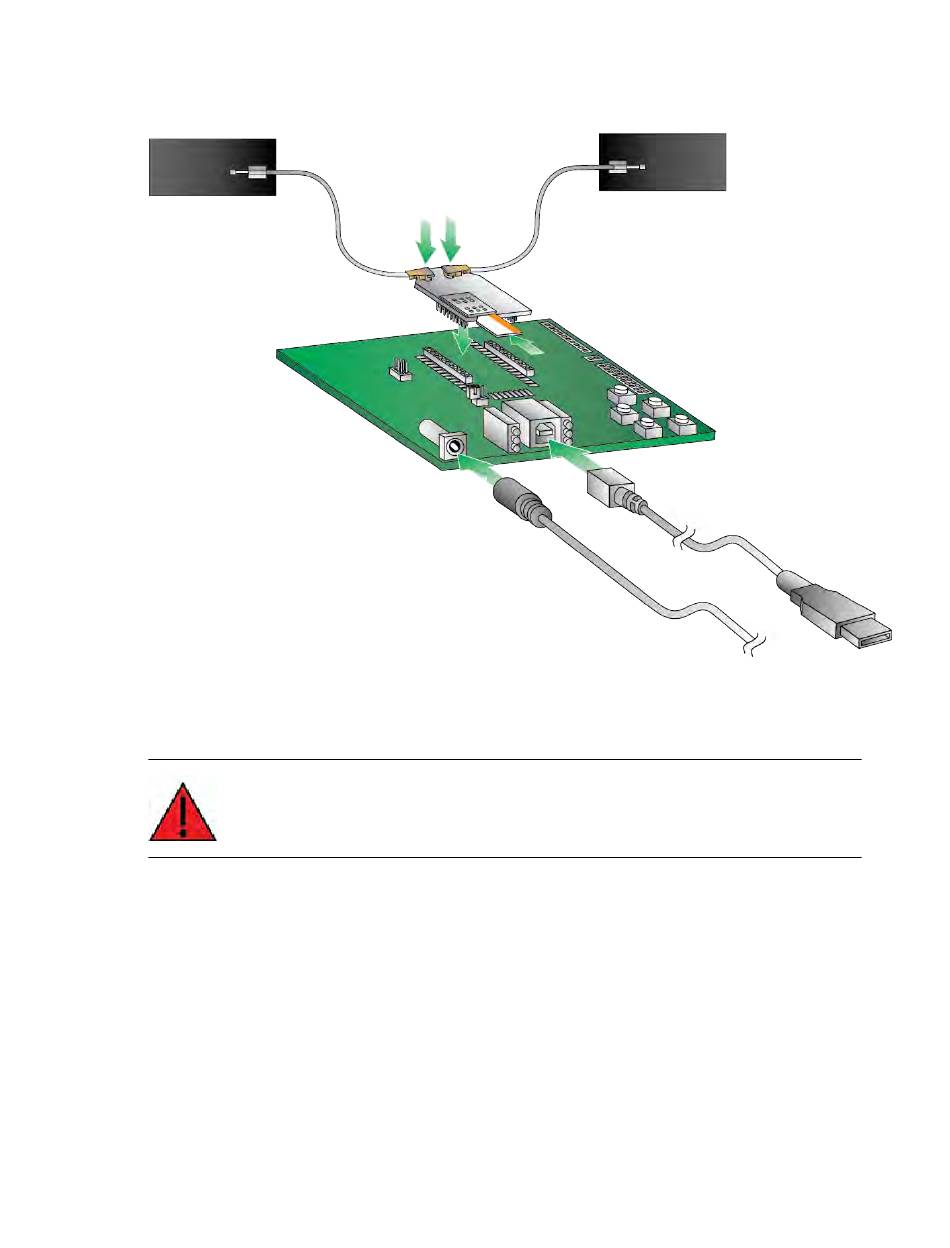

3. Connect the antennas to the XBee Smart Modem by aligning the U.FL connectors carefully,
then firmly pressing straight down to seat the connector. You should hear a snap when the
antenna attaches correctly. U.FL is fragile and is not designed for multiple insertions, so
exercise caution when connecting or removing the antennas. We recommend using a U.FL
removal tool.
4. Plug the 12 V power supply to the power jack on the development board.
5. Connect the USB cable from a PC to the USB port on the development board. The computer
searches for a driver, which can take a few minutes to install.
Digi XBee3 Cellular LTE-M Global Smart Modem User Guide
