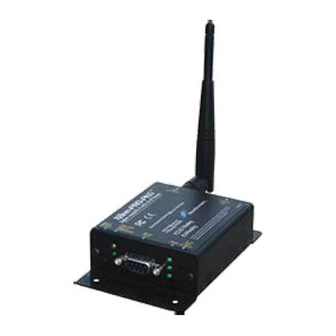

XBee-PRO PKG-U® USB RF Modem
802.15.4
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XBee-PRO PKG-U and is the answer not in the manual?

Questions and answers

Related Manuals for Digi XBee-PRO PKG-U

Summary of Contents for Digi XBee-PRO PKG-U

  • Page 1 XBee-PRO PKG-U® USB RF Modem 802.15.4 User Guide...

  • Page 2: Customer Support

    Information in this document is subject to change without notice and does not represent a commitment on the part of Digi International. Digi provides this document “as is,” without warranty of any kind, expressed or implied, including, but not limited to, the implied warranties of fitness or merchantability for a particular purpose.
  • Page 3 Modes of operation RF modem configuration Programming the RF Modem Programming Examples X-CTU software Command reference Special Networking and security RF Interfacing Sleep (low power) Serial interfacing I/O settings Diagnostics AT command options Command descriptions XBee-PRO PKG-U® USB RF Modem...
  • Page 4 ND (Node Discover) command NI (Node Identifier) command NT (Node Discover Time) command P0 (PWM0 Configuration) command P1 (PWM1 Configuration) command PL (Power Level) command PR (Pull-up Resistor Enable) command PT (PWM Output Timeout) command XBee-PRO PKG-U® USB RF Modem...
  • Page 5 OEM labeling requirements FCC notices FCC-approved antennas (2.4 ghz) European certification OEM labeling requirements Declarations of conformity Maximum power and frequency specifications IC (Industry Canada) certification Labeling requirements Appendix B: Additional information One-year warranty Ordering Information XBee-PRO PKG-U® USB RF Modem...

  • Page 6: Features Overview

    1. Transmit power: 60 mW (18 dBm), 100 mW (w0 dBm) Receiver sensitivity: -100 dBM RF Data rate: 250,000 bps Advanced networking & security Retries and acknowledgements DSSS (Direct Sequence Spread Spectrum) Each direct sequence channels has over 65,000 unique network addresses available Source/destination addressing XBee-PRO PKG-U® USB RF Modem...

  • Page 7: Worldwide Acceptance

    Free and unlimited technical support. Worldwide acceptance FCC approved (USA) refer to Appendix A [p56] for FCC requirements. Systems that include XBee®/XBee-PRO® RF modules inherit Digi certifications. ISM (industrial, scientific & medical) 2.4 GHz frequency band Manufactured under ISO 9001:2000 registered standards XBee®/XBee-PRO®...

  • Page 8: Specifications

    PAN ID, channel and source/destination addresses Antenna Connector RPSMA (reverse polarity SMA) Impedance 50 ohms unbalanced Power requirements Power supply Powered through USB port Receive current 90 mA Appendix A: agency certifications for region‐ specific certification requirements. XBee-PRO PKG-U® USB RF Modem...
  • Page 9 5.25 oz. (150 g) Data connection Operating temperature 0 - 70º C (commercial) Certifications (partial list) United States (FCC Part 15.247) OUR-XBEEPRO Industry Canada (IC) 4214A-XBEEPRO Europe (CE) ETSI (Max. 10 mW transmit power output)* XBee-PRO PKG-U® USB RF Modem...

  • Page 10: External Interface

    3 LEDs ON = very strong signal (> 30 dB fade margin) 2 LEDs ON = strong signal (> 20 dB fade margin) 1 LED ON = moderate signal (> 10 dB fade margin) 0 LED ON = weak Signal (< 10 dB fade margin) XBee-PRO PKG-U® USB RF Modem...
  • Page 11 Port is a 50Ω RF signal connector for connecting to an external antenna. The connector type is RPSMA (reverse polarity SMA) female. The connector has threads on the outside of a barrel and a male center conductor. XBee-PRO PKG-U® USB RF Modem...

  • Page 12: Interfacing Protocol

    Serial data entering into the RF modem (from host) Data-terminal-ready Can enable power-down on the RF modem Ground signal Ground 1Functions listed in the implementation column may not be available at the time of release. XBee-PRO PKG-U® USB RF Modem...

  • Page 13: Wiring Diagrams

    DCE RF Modem to an DCE RS-232 Device XBee‐ PRO RF modem (DCE ‐ female connector) wired to an RS‐ 232 device (DCE) 1Functions listed in the implementation column may not be available at the time of release. XBee-PRO PKG-U® USB RF Modem...
  • Page 14 Interfacing protocol RS-232 operation Sample wireless connection: DTE <--> DCE DCE <--> DCE Typical wireless link between DTE and DCE devices XBee-PRO PKG-U® USB RF Modem...

  • Page 15: Rf Modem Operation

    Parameter values critical to serial communications between the RF modem and host Parameter setting Default parameter value Baud (serial data rate) 9600 bps (BD parameter = 3) Number of data bits Parity None Number of stop bits XBee-PRO PKG-U® USB RF Modem...

  • Page 16: Transparent Operation

    RF modem operation Serial Communications Both the XBee-PRO RF modem and host (PC) settings can be viewed and adjusted using Digi's proprietary X-CTU software. Use the PC settings tab to configure host settings. Use the terminal or RF modem configuration tabs to configure the RF modem settings.

  • Page 17: Flow Control

    Hardware flow control (RTS). If RTS is enabled for flow control (D6 (DIO6 configuration) parameter = 1), data will not be sent out the DO buffer as long as RTS (DIO6) is de-asserted. Two cases in which the DO buffer may become full and possibly overflow: XBee-PRO PKG-U® USB RF Modem...

  • Page 18: Ieee 802.15.4 Networks

    Digi's peer-to-peer architecture features fast synchronization times and fast cold start times. This default configuration accommodates a wide range of RF data applications.
  • Page 19 Coordinator/end device setup and operation To configure a modem to operate as a coordinator, set the CE (Coordinator Enable) parameter to 1. Set the CE parameter of End Devices to 0 (default). Coordinator and end devices should contain XBee-PRO PKG-U® USB RF Modem...
  • Page 20 PAN). Once the best channel has been selected, the CH (Channel) parameter value is updated to that channel. Not set (bit 1 = 0) - The coordinator retains its CH setting. An energy scan is not performed. XBee-PRO PKG-U® USB RF Modem...
  • Page 21 ID, CH and MY parameters. Association is considered complete and the Associate LED blinks quickly (5 times per second). When the AutoAssociate bit is not set, the remaining steps (2-3) do not apply. XBee-PRO PKG-U® USB RF Modem...
  • Page 22 Changing A1, ID or CH parameters will cause the end device to disassociate and restart the association procedure. If the end device fails to associate, the AI command can give some indication of the failure. XBee-PRO PKG-U® USB RF Modem...

  • Page 23: Addressing

    Any RF modem within range will accept a packet that contains a broadcast address. When configured to operate in Broadcast mode, receiving modems do not send ACKs (acknowledgements) and transmitting modems do not automatically re-send packets as is the case in Unicast mode. XBee-PRO PKG-U® USB RF Modem...

  • Page 24: Modes Of Operation

    The <Destination Address> field is created from the DH (Destination Address High) and DL (Destination Address Low) parameter values. The source address and/or destination address fields will either contain a 16-bit short or long 64-bit long address. The RF data packet structure follows the 802.15.4 specification. XBee-PRO PKG-U® USB RF Modem...
  • Page 25 Exponent) parameter. If RN is set to “0”, then there is no delay before the first CCA is performed. The RN parameter value is the equivalent of the “minBE” parameter in the 802.15.4 specification. The transmit sequence follows the 802.15.4 specification. XBee-PRO PKG-U® USB RF Modem...
  • Page 26 RF (Sleep Mode) elapses. The data is present and ST (Time time interval is / When SM = 5, before defined by the NonBeacon Sleep) SP (Cyclic systems only parameters. Sleep Period) parameter. XBee-PRO PKG-U® USB RF Modem...
  • Page 27 DTR is asserted and is ready to transmit or receive when the CTS line is low. When waking the modem, the pin must be asserted at least two 'byte times' after CTS goes low. This assures that there is time for the data to enter the DI buffer. XBee-PRO PKG-U® USB RF Modem...

  • Page 28: At Command Mode

    To modify or read RF modem parameters, the modem must first enter into Command mode - a state in which incoming characters are interpreted as commands. Two command mode types are supported: AT command mode and API command mode. AT command mode To enter AT command mode: XBee-PRO PKG-U® USB RF Modem...
  • Page 29 2. If no valid AT commands are received within the time specified by CT (Command Mode Timeout) Command, the RF modem automatically returns to Idle Mode. For an example that illustrates programming the RF modem using AT commands, refer to RF modem configuration. XBee-PRO PKG-U® USB RF Modem...

  • Page 30: Rf Modem Configuration

    Programming Examples Setup The programming examples in this section require the installation of Digi's X-CTU software and an RS- 232 connection to a PC. 1. Install Digi's X-CTU software to a PC by double-clicking the "setup_X-CTU.exe" file. (The file is located on the Digi CD and under the Software section of the following web page: www.maxstream.net/support/downloads.php.

  • Page 31: X-Ctu Software

    2. Click the Restore button. X-CTU software X- CTU is a Digi-provided software program used to interface with and configure the RF Modems. The software application is organized into the following four tabs: PC Settings tab - Setup PC serial ports for interfacing with the RF modem.

  • Page 32: Command Reference

    Configuration tabs. A shortcut for editing PC setting values is available by clicking on any of the values. Install X-CTU Double-click the setup_X-CTU.exe file and follow prompts of the installation screens. This file is located in the software folder of the Digi CD and also under the Downloads section of the following web page: www.Digi.com/support/. Setup Serial communications software A terminal program is built into the X-CTU Software.

  • Page 33: Networking And Security

    Software reset: Responds immediately with an OK then performs a hard reset ~100ms later. * Firmware version where the command was first introduced. Firmware versions are numbered in hexadecimal notation. Parameter range Default Networking and security AT command XBee-PRO PKG-U® USB RF Modem...
  • Page 34 When combined with DL, it defines the destination address used for transmission. To transmit using a 16-bit address, set DH parameter to zero and DL less than 0xFFFF. 0x000000000000FFFF is the broadcast address for the PAN. Parameter range 0 - 0xFFFFFFFF Default AT command XBee-PRO PKG-U® USB RF Modem...
  • Page 35 Networking {Addressing} Name and description Serial number high: Read high 32 bits of the RF modem's unique IEEE 64-bit address. 64-bit source address is always enabled. Parameter 0 - 0xFFFFFFFF [read-only] Default Factory-set AT command XBee-PRO PKG-U® USB RF Modem...
  • Page 36 If RN = 0, collision avoidance is disabled during the first iteration of the algorithm (802.15.4 - macMinBE). Parameter range 0 - 3 [exponent] Default AT command MM ( v1.x80*) XBee-PRO PKG-U® USB RF Modem...
  • Page 37 Networking {Addressing} Name and description MAC mode: Set/read MAC Mode value. MAC Mode enables/disables the use of a Digi header in the 802.15.4 RF packet. When Mode 0 is enabled (MM=0), duplicate packet detection is enabled as well as certain AT commands.
  • Page 38 If there is no response from a modem within 200 msec or a parameter is not specified (left blank), the command is terminated and an “ERROR” message is returned. Parameter range 20-character ASCII string Default XBee-PRO PKG-U® USB RF Modem...
  • Page 39 0 - 0xFFFF [bitfield] (bits 0, 14, 15 not allowed on the XBee-PRO) Default 0x1FFE (all XBee- PRO Channels) AT command SD ( v1.x80*) Command category Networking {Association} Name and description Scan duration: Set/read the scan duration exponent. XBee-PRO PKG-U® USB RF Modem...
  • Page 40 3 - PollCoordOnPinWake 0 - Pin wake will not poll the coordinator for indirect (pending) data 1 - Pin wake will send poll request to coordinator to extract any pending data bits 4 - 7 are reserved XBee-PRO PKG-U® USB RF Modem...
  • Page 41 Name and description Association indication: Read errors with the last association request: 0x00 - Successful completion - coordinator successfully started or end device association complete. 0x01 - Active scan timeout. 0x02 - Active scan found no PANs. XBee-PRO PKG-U® USB RF Modem...
  • Page 42 Force disassociation: End device will immediately disassociate from a coordinator (if associated) and reattempt to associate. Parameter range Default AT command FP ( v1.x80*) Command category Networking {Association} Name and description Force poll: Request indirect messages being held by a coordinator. XBee-PRO PKG-U® USB RF Modem...
  • Page 43 PARAM) * 15.36] ms. Note the total scan time is this time multiplied by the number of channels to be scanned (16 for the XBee and 13 for the XBee-PRO). Refer to SD (Scan Duration) command. Parameter range Default AT command ED ( v1.x80*) Command category Networking {Association} XBee-PRO PKG-U® USB RF Modem...
  • Page 44 AES encryption key: Set the 128-bit AES (Advanced Encryption Standard) key for encrypting/decrypting data. The KY register cannot be read. Parameter range 0 - (any 16-Byte value) Default * Firmware version in which the command was first introduced (firmware versions are numbered in hexadecimal notation.) XBee-PRO PKG-U® USB RF Modem...

  • Page 45: Rf Interfacing

    CCA threshold: Set/read the CCA (Clear Channel Assessment) threshold. Prior to transmitting a packet, a CCA is performed to detect energy on the channel. If the detected energy is above the CCA Threshold, the modem will not transmit the packet. Parameter range 0 - 0x50 [-dBm] Default XBee-PRO PKG-U® USB RF Modem...

  • Page 46: Sleep (Low Power)

    If the ST parameter is modified, also modify the GT parameter accordingly. Parameter range 1 - 0xFFFF [x 1 ms] Default 0x1388 (5000d) AT command XBee-PRO PKG-U® USB RF Modem...

  • Page 47: Serial Interfacing

    Maximum sleep period is 268 seconds (0x68B0). DP should be > 0 for NonBeacon systems. Parameter range 1 - 0x68B0 [x 10 ms] Default 0x3E8 (1000d) Serial interfacing XBee‐ PRO Commands ‐ Serial Interfacing AT command Command category Serial interfacing XBee-PRO PKG-U® USB RF Modem...
  • Page 48 Set to zero to transmit characters as they arrive instead of buffering them into one RF packet. Parameter range 0 - 0xFF [x character times] Default AT command AP (v1.x80*) Command category Serial interfacing Name and description API enable: Disable/enable API Mode. XBee-PRO PKG-U® USB RF Modem...

  • Page 49: I/O Settings

    RF modem. Implementation of these commands requires board-level development and is not supported when using the DB-9 serial connection of the RF modem. XBee‐ PRO commands ‐ I/O settings (sub‐ category designated within {brackets}) AT command Command category I/O settings XBee-PRO PKG-U® USB RF Modem...
  • Page 50 DIO6 configuration: Select/read settings for the DIO6 line (pin 16) of the RF modem. Options include RTS flow control and I/O line settings. Parameter range 0 - 1 0 = Disabled 1 = RTS flow control 2 = (n/a) 3 = DI 4 = DO low 5 = DO high XBee-PRO PKG-U® USB RF Modem...
  • Page 51 Options include: Analog-to-digital converter, digital input and digital output. Parameter range 0 - 1 0 = Disabled 1 = (n/a) 2 = ADC 3 = DI 4 = DO low Default AT command IU (v1.xA0*) XBee-PRO PKG-U® USB RF Modem...
  • Page 52 Force sample: Force a read of all enabled inputs (DI or ADC). Data is returned through the UART. If no inputs are defined (DI or ADC), this command will return error. Parameter range 8-bit bitmap (each bit represents the level of an I/O line setup as an output) Default AT command IO (v1.xA0*) XBee-PRO PKG-U® USB RF Modem...
  • Page 53 Name and description Sample rate: Set/read sample rate. When set, this parameter causes the modem to sample all enabled inputs at a specified interval. Parameter range 0 - 0xFFFF [x 1 msec] Default AT command AV (v1.xA0*) XBee-PRO PKG-U® USB RF Modem...
  • Page 54 When output is set (due to I/O line passing) to a non- default level, a timer is started which when expired will set the output to it default level. The timer is reset when a valid I/O packet is received. Parameter range 0 - 0xFF [x 100 ms] Default 0xFF XBee-PRO PKG-U® USB RF Modem...
  • Page 55 1 = RSSI 2 = PWM Output Default AT command M0 (v1.xA0*) Command category I/O Settings {I/O line passing} Name and description PWM0 output level: Set/read the PWM0 output level. Parameter range 0 - 0x03FF XBee-PRO PKG-U® USB RF Modem...
  • Page 56 RSSI PWM timer: Set/read PWM timer register. Set the duration of PWM (pulse width modulation) signal output on the RSSI pin. The signal duty cycle is updated with each received packet and is shut off when the timer expires.] Parameter range 0 - 0xFF [x 100 ms] XBee-PRO PKG-U® USB RF Modem...

  • Page 57: Diagnostics

    Firmware version - verbose: Read detailed version information (including application build date, MAC, PHY and bootloader versions). Parameter range Default At command HV (v1.x80*) Command category Diagnostics Name and description Hardware version: Read hardware version of the RF modem. XBee-PRO PKG-U® USB RF Modem...
  • Page 58 EA (v1.x80*) Command category Diagnostics Name and description ACK failures: Reset/read count of acknowledgment failures. This parameter value increments when the modem expires its transmission retries without receiving an ACK on a packet transmission. This XBee-PRO PKG-U® USB RF Modem...

  • Page 59: At Command Options

    Command mode timeout: Set/read the period of inactivity (no valid commands received) after which the RF modem automatically exits AT Command Mode and returns to Idle Mode. Parameter range 2 - 0xFFFF [x 100 ms] Default 0x64 (100d) XBee-PRO PKG-U® USB RF Modem...
  • Page 60 AT Command Mode Sequence (GT+ CC + GT). The period of silence is used to prevent inadvertent entrance into AT Command Mode. Parameter range 2 - 0x0CE4 [x 1 ms] Default 0x3E8 (1000d) AT command XBee-PRO PKG-U® USB RF Modem...

  • Page 61: Command Descriptions

    0 - Device will not attempt association. 1 - Device attempts association until success. Note This bit is used only for Non-Beacon systems. End devices in a Beaconing system must always associate to a coordinator. XBee-PRO PKG-U® USB RF Modem...

  • Page 62: A2 (Coordinator Association) Command

    0 - Coordinator will not allow any devices to associate to it. AllowAssociate 1 - Coordinator will allow devices to associate to it. 3 - 7 [reserved] The binary equivalent of the default value (0x06) is 00000110. ‘Bit 0’ is the last digit of the sequence. XBee-PRO PKG-U® USB RF Modem...

  • Page 63: Ac (Apply Changes) Command

    Successful completion - coordinator successfully started or end device association complete. 0x01 Active scan timeout. 0x02 Active scan found no PANs. 0x03 Active scan found PAN, but the coordinator allow association bit is not set. XBee-PRO PKG-U® USB RF Modem...

  • Page 64: Ap (Api Enable) Command

    AS (Active Scan), ID (PAN ID), CH (Channel), ED (Energy Scan), A1 (End Device Association), A2 (Coordinator Association), CE (Coordinator Enable) Minimum firmware version required v1.x80 AP (API Enable) command <Serial Interfacing> The AP command is used to AT Command: ATAP XBee-PRO PKG-U® USB RF Modem...

  • Page 65: As (Active Scan) Command

    15 - association permitted (MSB) bit 14 - PAN coordinator bit 13 - Reserved bit 12 - Battery life extension bits 8-11 - Final CAP slot bits 4-7 - Superframe order bits 0-3 - Beacon order GtsPermit<CR> XBee-PRO PKG-U® USB RF Modem...

  • Page 66: Av (Adc Voltage Reference) Command

    This command only applies to XBee-PRO RF modems and will return error on an XBee RF modem. AT command ATAV Parameter range 0 - 1 Parameter Configuration VREF pin Internal (on-board reference - VCC) Default parameter value Minimum firmware version required v1.xAO XBee-PRO PKG-U® USB RF Modem...

  • Page 67: Bd (Interface Data Rate) Command

    19200 bps can be set by sending the following command line "ATBD4B00." Note When using Digi’s X-CTU Software, non-standard interface data rates can only be set and read using the X-CTU ‘Terminal’ tab. Non-standard rates are not accessible through the Modem Configuration tab.

  • Page 68: Ca (Cca Threshold) Command

    AT command mode so that data entering the modem from the host is recognized as commands instead of payload. The AT command sequence is explained further in the AT command options section. AT command ATCC Parameter range 0 - 0xFF Default parameter value 0x2B (ASCII “+”) XBee-PRO PKG-U® USB RF Modem...

  • Page 69: Ce (Coordinator Enable) Command

    The modem uses channel numbers of the 802.15.4 standard. Center frequency = 2.405 + (CH - 11d) * 5 MHz (d = decimal) Refer to Addressing for more information. AT command ATCH Parameter range 0x0C - 0x17 Default parameter value 0x0C (12 decimal) XBee-PRO PKG-U® USB RF Modem...

  • Page 70: Cn (Exit Command Mode) Command

    <I/O Settings> The D0, D1, D2, D3 and D4 commands are used to select/read the behavior of their respective AD/DIO lines (pins 20, 19, 18, 17 and 11 respectively). Options include: Analog-to-digital converter Digital input Digital output AT commands ATD0, ATD1, ATD2, ATD3, ATD4 Parameter range 0 - 5 XBee-PRO PKG-U® USB RF Modem...

  • Page 71: D5 (Dio5 Configuration) Command

    <I/O Settings> The D5 command is used to select/read the behavior of the DIO5 line (pin 15). Options include: Associated indicator (LED blinks when the modem is associated) Analog-to-digital converter Digital input Digital output AT command ATD5 Parameter range 0 - 5 Parameter Configuration Disabled Associated indicator DO low DO high XBee-PRO PKG-U® USB RF Modem...

  • Page 72: D6 (Dio6 Configuration) Command

    Parameters 3-5 supported as of firmware version 1.xA0 D7 (DIO7 Configuration) command <I/O Settings> The D7 command is used to select/read the behavior of the DIO7 line (pin 12). Options include: CTS flow control Analog-to-digital converter Digital input Digital output XBee-PRO PKG-U® USB RF Modem...

  • Page 73: D8 (Di8 Configuration) Command

    DB (Received Signal Strength) command <Diagnostics> DB parameter is used to read the received signal strength (in dBm) of the last RF packet received. Reported values are accurate between -40 dBm and the RF modem's receiver sensitivity. XBee-PRO PKG-U® USB RF Modem...

  • Page 74: Dh (Destination Address High) Command

    To transmit using a 16-bit address, set the DH parameter to zero and the DL parameter less than 0xFFFF. The broadcast for the PAN is 0x000000000000FFFF (DL concatenated to DH). Refer to Addressing for more information. AT command ATDL Parameter range 0 - 0xFFFFFFFF Default parameter value XBee-PRO PKG-U® USB RF Modem...

  • Page 75: Dn (Destination Node) Command

    AT command ATDP Parameter range 1 - 0x68B0 [x 10 milliseconds] Default parameter value 0x3E8 (1000 decimal) Related commands SM (Sleep Mode), SP (Cyclic Sleep Period), ST (Time before Sleep) Minimum firmware version required v1.x80 XBee-PRO PKG-U® USB RF Modem...

  • Page 76: Ea (Ack Failures) Command

    Total scan time is this time multiplied by the number of channels to be scanned. Also refer to scan table. Use the SC (Scan Channel) command to choose which channels to scan. AT command ATED XBee-PRO PKG-U® USB RF Modem...

  • Page 77: Ee (Aes Encryption Enable) Command

    API operation --> Receive frames use an option bit to indicate that the packet was encrypted. AT command ATEE Parameter range 0 - 1 Parameter Configuration Disabled Enabled Default parameter value Related commands KY (Encryption Key), AP (API Enable), MM (MAC Mode) Minimum firmware version required v1.xA0 XBee-PRO PKG-U® USB RF Modem...

  • Page 78: Fp (Force Poll) Command

    0x3E8 (1000 decimal) Related command CC (Command Sequence Character) HV (Hardware Version) command <Diagnostics> The HV command is used to read the hardware version of the RF modem. AT command ATHV Parameter range 0 - 0xFFFF [read-only] XBee-PRO PKG-U® USB RF Modem...

  • Page 79: Ia (I/O Input Address) Command

    ID of the RF modem. Only modems with matching PAN IDs can communicate with each other. Unique PAN IDs enable control of which RF packets are received by a modem. Setting the ID parameter to 0xFFFF indicates a global transmission for all PANs. It does not indicate a global receive. XBee-PRO PKG-U® USB RF Modem...

  • Page 80: Io (Digital Output Level) Command

    <I/O Settings> The IS command is used to force a read of all enabled DIO/ADC lines. The data is returned through the UART. When operating in Transparent Mode (AP=0), the data is returned in the following format: XBee-PRO PKG-U® USB RF Modem...

  • Page 81: It (Samples Before Tx) Command

    <I/O Settings> The IU command is used to disable/enable I/O UART output. When enabled (IU = 1), received I/O line data packets are sent out the UART. The data is sent using an API frame regardless of the current AP parameter value. AT command ATIU Parameter range 0 - 1 XBee-PRO PKG-U® USB RF Modem...

  • Page 82: Ky (Aes Encryption Key) Command

    Before setting the line as an output: 1. Enable PWM0 output (P0 = 2). 2. Apply settings (use CN or AC). The PWM period is 64 µsec and there are 0x03FF (1023 decimal) steps within this period. XBee-PRO PKG-U® USB RF Modem...

  • Page 83: M1 (Pwm1 Output Level) Command

    Digi header contained in the 802.15.4 RF packet. By default (MM = 0), Digi Mode is enabled and the modem adds an extra header to the data portion of the 802.15.4 packet. This enables the following features:...

  • Page 84: My (16-Bit Source Address) Command

    When MM > 0, application and CCA failure retries are not supported. AT command ATMM Parameter range 0 - 2 Parameter Configuration Digi Mode (802.15.4 + Digi header) 802.15.4 (no ACKs) 802.15.4 (with ACKs) Default parameter value Related commands ND (Node Discover), DN (Destination Node) Minimum firmware version required v1.x80...

  • Page 85: Nd (Node Discover) Command

    MY (Source Address) value<CR> SH (Serial Number High) value<CR> SL (Serial Number Low) value<CR> DB (Received Signal Strength) value<CR> NI (Node Identifier) value<CR> <CR> (This is part of the response and not the end of command indicator.) XBee-PRO PKG-U® USB RF Modem...

  • Page 86: Ni (Node Identifier) Command

    This string is returned as part of the ND (Node Discover) command. This identifier is also used with the DN (Destination Node) command. AT command ATNI Parameter range 20-character ASCII string Related commands ND (Node Discover), DN (Destination Node) Minimum firmware version required v1.x80 XBee-PRO PKG-U® USB RF Modem...

  • Page 87: Nt (Node Discover Time) Command

    With the IA (I/O Input Address) parameter correctly set, AD0 values can automatically be passed to PWM0. AT command ATP0 The second character in the command is the number zero (“0”), not the letter “O.” Parameter range 0 - 2 Parameter Configuration Disabled RSSI PWM0 output Default parameter value XBee-PRO PKG-U® USB RF Modem...

  • Page 88: P1 (Pwm1 Configuration) Command

    10 dBm: Order the standard XBee-PRO module and change the PL command to "0" (10dBm), Order the International variant of the XBee-PRO module, which has a maximum transmit output power of 10dBm. AT command ATPL XBee-PRO PKG-U® USB RF Modem...

  • Page 89: Pr (Pull-Up Resistor Enable) Command

    OFF. (The binary equivalent of “0x6F” is “01101111”. Note that ‘bit 0’ is the last digit in the bitfield. AT command ATPR Parameter range 0 - 0xFF Default parameter value 0xFF (all pull-up resistors are enabled) Minimum firmware version required v1.x80 XBee-PRO PKG-U® USB RF Modem...

  • Page 90: Pt (Pwm Output Timeout) Command

    After a time, the process ends and the data is lost. AT command ATRN Parameter range 0 - 3 [exponent] XBee-PRO PKG-U® USB RF Modem...

  • Page 91: Ro (Packetization Timeout) Command

    (0 percent PWM) until another RF packet is received. The PWM output will also be set low at power-up until the first RF packet is received. A parameter value of 0xFF permanently enables the PWM output and it will always reflect the value of the last received RF packet. XBee-PRO PKG-U® USB RF Modem...

  • Page 92: Rr (Xbee Retries) Command

    This values does not need to be set on all modems for retries to work. If retries are enabled, the transmitting modem will set a bit in the Digi RF Packet header which requests the receiving modem to send an ACK (acknowledgement). If the transmitting modem does not receive an ACK within 200 msec, it will re-send the packet within a random period up to 48 msec.

  • Page 93: Sd (Scan Duration) Command

    SD = 12, time = 12.58 min SD = 6, time = 11.80 sec SD = 14, time = 50.33 min AT command ATSD Parameter range 0 - 0x0F Default parameter value Related commands ED (Energy Scan), SC (Scan Channel) XBee-PRO PKG-U® USB RF Modem...

  • Page 94: Sh (Serial Number High) Command

    * The sleep coordinator option (SM=6) only exists for backwards compatibility with firmware version 1.x06 only. In all other cases, use the CE command to enable a coordinator. AT command ATSM Parameter range 0 - 6 XBee-PRO PKG-U® USB RF Modem...

  • Page 95: Sp (Cyclic Sleep Period) Command

    AT command ATSP Parameter range NonBeacon firmware: 1 - 0x68B0 [x 10 milliseconds] Default parameter value NonBeacon Firmware: 0 Related commands SM (Sleep Mode), ST (Time before Sleep), DP (Disassociation Cyclic Sleep Period, BE (Beacon Order) XBee-PRO PKG-U® USB RF Modem...

  • Page 96: St (Time Before Sleep) Command

    Minimum firmware version required v1.xA0 VL (Firmware Version - Verbose) <Diagnostics> The VL command is used to read detailed version information about the RF modem. The information includes: Application build date MAC, PHY and bootloader versions Build dates. XBee-PRO PKG-U® USB RF Modem...

  • Page 97: Vr (Firmware Version) Command

    DI pin is queued up for RF transmission. When the modem receives an RF packet, the data is sent out the DO pin with no additional information. Inherent to transparent operation are the following behaviors: XBee-PRO PKG-U® USB RF Modem...

  • Page 98: Api Frame Specifications

    (flagged) so they do not interfere with the UART or UART data frame operation. To escape an interfering data byte, insert 0x7D and follow it with the byte to be escaped XOR’d with 0x20. XBee-PRO PKG-U® USB RF Modem...

  • Page 99: Api Types

    (Identifier-specific data). Refer to the sections that follow for more information regarding the supported API types. Note that multi-byte values are sent big endian. Modem status API identifier: 0x8A RF modem status messages are sent from the modem in response to specific conditions. Modem Status Frames XBee-PRO PKG-U® USB RF Modem...
  • Page 100 ** "R" value was arbitrarily selected. Example: API frames when modifying the DL parameter value of the modem. * Length (Bytes) - API identifier + frame ID + AT command + parameter value ** "M" value was arbitrarily selected. XBee-PRO PKG-U® USB RF Modem...

  • Page 101: At Command Response

    AT command response frames TX (transmit) request: 64-bit address API Identifier Value: 0x00 A TX Request message will cause the modem to send RF Data as an RF Packet. TX packet (64‐ bit address) frames XBee-PRO PKG-U® USB RF Modem...
  • Page 102 TX status frames Notes “STATUS = 1” occurs when all retries are expired and no ACK is received. If transmitter broadcasts (destination address = 0x000000000000FFFF), only "STATUS" = 0 or 2 will be returned. XBee-PRO PKG-U® USB RF Modem...
  • Page 103 When the modem receives an RF packet, it is sent out the UART using this message type. RX (receive) packet: 16-bit address API Identifier Value: 0x81 When the modem receives an RF packet, it is sent out the UART using this message type. RX packet (16-bit) address frames XBee-PRO PKG-U® USB RF Modem...

  • Page 104: Fcc Certification

    IMPORTANT: The XBee-PRO RS-232 RF modem has been certified by the FCC for use with other products without any further certification (as per FCC section 2.1091). Modifications not expressly approved by Digi could void the user's authority to operate the equipment. IMPORTANT: OEMs must test final product to comply with unintentional radiators (FCC section 15.107 &...

  • Page 105: Fcc-Approved Antennas (2.4 Ghz)

    Cable-loss is required when using antennas listed in the second table. The antennas in the tables below have been approved for use with this module. Digi does not carry all of these antenna variants. Contact Digi Sales for available antennas.
  • Page 106 Fixed/mobile 20 cm 5.1 dB F3NF A24- Omni-directional (fiberglass base station) Fixed/mobile 20 cm 7.1 dB F5NF A24- Omni-directional (fiberglass base station) Fixed 10.1 dB F8NF A24- Omni-directional (fiberglass base station) Fixed 11.6 dB F9NF XBee-PRO PKG-U® USB RF Modem...
  • Page 107 The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter. The preceding statement must be included as a CAUTION statement in OEM product manuals in order to alert users of FCC RF Exposure compliance. XBee-PRO PKG-U® USB RF Modem...

  • Page 108: European Certification

    The CE marking must be affixed visibly, legibly, and indelibly. Declarations of conformity Digi has issued Declarations of Conformity for the (product name) concerning emissions, EMC, and safety. For more information, see www.digi.com/resources/certifications. Important note Digi customers assume full responsibility for learning and meeting the required guidelines for each country in their distribution market.

  • Page 109: Labeling Requirements

    The integrator is responsible for its product to comply with IC ICES-003 & FCC Part 15, Sub. B - unintentional radiators. ICES-003 is the same as FCC Part 15 Sub. B and Industry Canada accepts FCC test report or CISPR 22 test report for compliance with ICES-003. XBee-PRO PKG-U® USB RF Modem...

  • Page 110: Appendix B: Additional Information

    Appendix B: Additional information XBee-PRO PKG-U® USB RF Modem...

  • Page 111: Ordering Information

    1-year from the date of purchase. In the event of a product failure due to materials or workmanship, Digi will repair or replace the defective product. For warranty service, return the defective product to Digi, shipping prepaid, for prompt repair or replacement.
