Digi XB3-C-A2-UT series User Manual page 33

Getting started with the XBee Smart Modem Development Kit
9. Click the Consoles working mode button
device. For instructions on using the Console, see the
10. Click the Open button

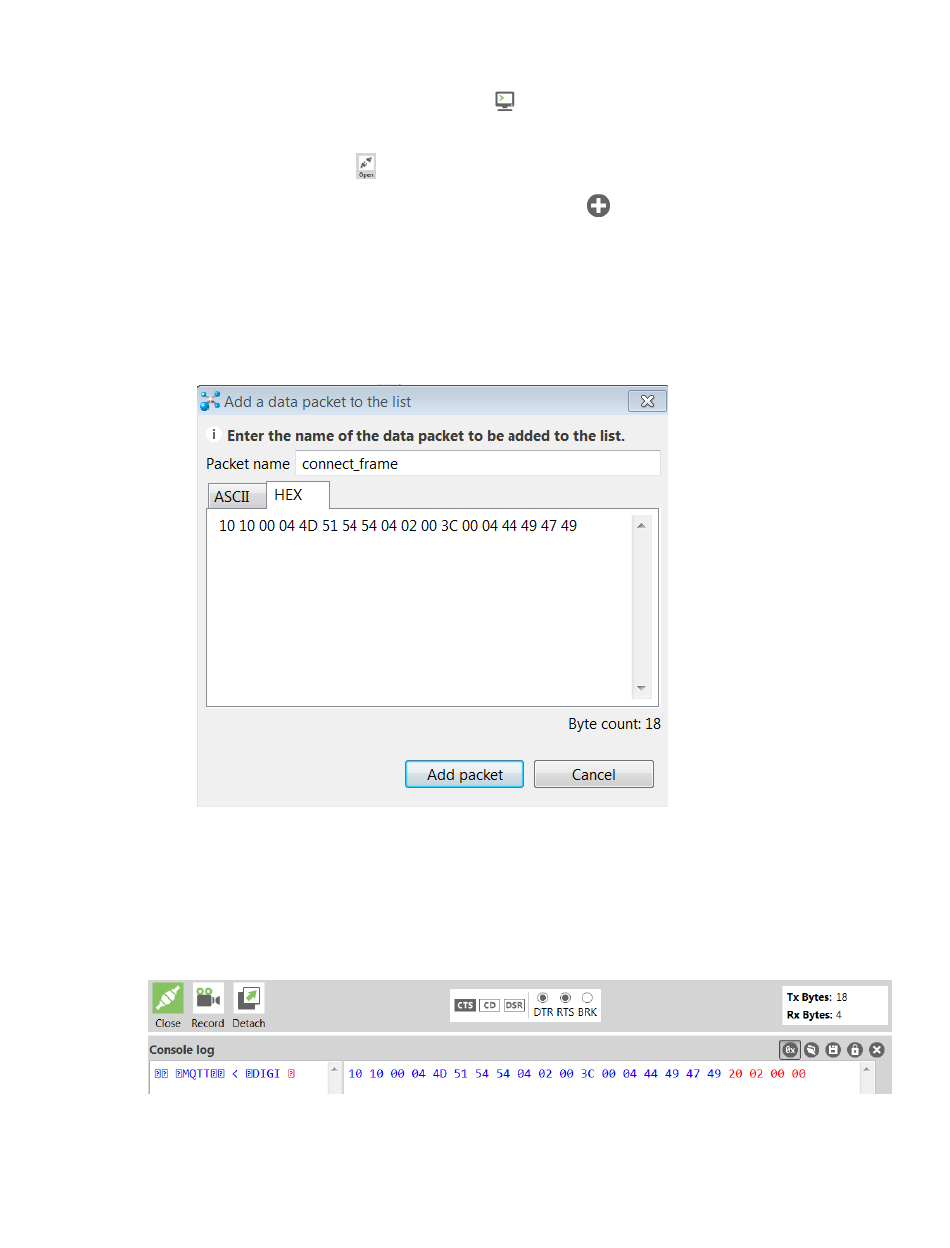

11. From the AT console, click the Add new packet button
Add new packet dialog appears.
12. Enter the name of the data packet. Name the packet connect_frame or something similar.
13. Click the HEX input tab and type the following (these values are the same values from the
table in Example: MQTT
10 10 00 04 4D 51 54 54 04 02 00 3C 00 04 44 49 47 49
14. Click Add packet. The new packet appears in the Send packets list.
15. Click the packet in the Send packets list.
16. Click Send selected packet.
17. A CONNACK packet response from the broker appears in the Console log. This is a connection
acknowledgment; a successful response should look like this:
Digi XBee3 Cellular LTE-M Global Smart Modem User Guide
on the toolbar to open a serial console to the
to open a serial connection to the device.
connect):
Get started with MQTT
AT console topic in the XCTU User Guide.
in the Send packets dialog. The
33
