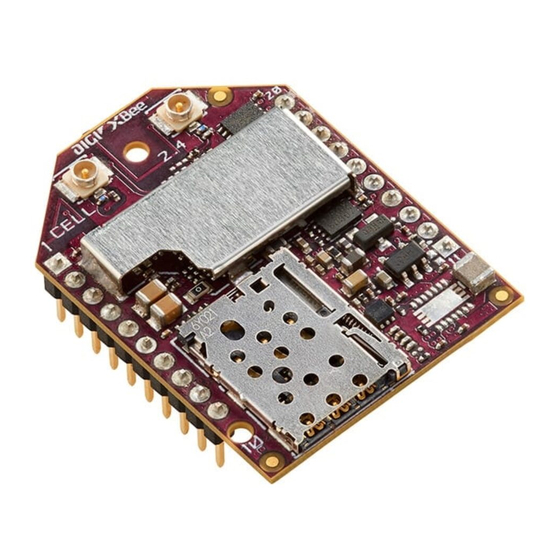

Page 1 Digi XBee3® Cellular LTE-M/NB-IoT Smart Modem User Guide...
Page 2 Information in this document is subject to change without notice and does not represent a commitment on the part of Digi International. Digi provides this document “as is,” without warranty of any kind, expressed or implied, including, but not limited to, the implied warranties of fitness or merchantability for a particular purpose.
Page 3 To provide feedback on this document, email your comments to techcomm@digi.com Include the document title and part number (Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide, 90002258 I) in the subject line of your email. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 4: Table Of Contents
Contents Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide Applicable firmware and hardware SIM cards NB-IoT network Get started with the XBee Smart Modem Development Kit Identify the kit contents Acquire a SIM card US customers European customers Connect the hardware...
Page 5 Example: Read settings and state using Remote Manager Example: Configure a device from Remote Manager using XML Example: Update XBee firmware using Remote Manager Example: Update MicroPython from Remote Manager using XML Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 6 Custom configuration: Create a new factory default Set a custom configuration Clear all custom configurations on a device Clean shutdown SD (Shutdown) command Sleep feature Airplane mode Cellular connection process Connecting Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 7 Power saving features Airplane mode Power Saving Mode (PSM) PSM behavior Deep Sleep mode Serial communication Serial interface Serial data UART data flow Serial buffers CTS flow control RTS flow control Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 8 Server Name Indication (SNI) Secure the connection between an XBee and Remote Manager with server authentication Step 1: Get the certificate Step 2: Configure device Step 3: Verify that authentication is being performed Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 9 BD (Baud Rate) NB (Parity) SB (Stop Bits) RO (Packetization Timeout) TD (Text Delimiter) FT (Flow Control Threshold) AP (API Enable) I/O settings commands D0 (DIO0/AD0) D1 (DIO1/AD1) D2 (DIO2/AD2) D3 (DIO3/AD3) Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 10 Execution commands NR (Network Reset) !R (Modem Reset) File system commands Error responses ATFS (File System) ATFS PWD ATFS CD directory ATFS MD directory ATFS LS [directory] ATFS PUT filename ATFS XPUT filename ATFS HASH filename Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 11 User Data Relay - 0x2D Example use cases User Data Relay Output - 0xAD BLE Unlock API - 0x2C Example sequence to perform AT Command XBee API frames over BLE BLE Unlock Response - 0xAC Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 12 Socket leaks Condition Solution Regulatory information United States (FCC) OEM labeling requirements FCC notices FCC-approved antennas RF exposure FCC publication 996369 related information Innovation, Science and Economic Development Canada (ISED) Labeling requirements Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 13 RF Exposure CE mark (Europe) Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 14 Features include: FCC certified and carrier end-device certified Excellent coverage and building penetration Manage and configure with XCTU and Digi Remote Manager® Available with Digi provided SIM cards and data plans Digital I/O support Analog input support...
Page 15: Applicable Firmware And Hardware
For NB-IoT, SMS support is dependent on the network. Contact your network provider for details. Digi Remote Manager® requires TCP and will not work with NB-IoT unless the network supports TCP. The SIM card in the device determines whether the device supports NB-IoT, LTE-M, or both.
Page 16: Get Started With The Xbee Smart Modem Development Kit
2. Review introductory MicroPython examples. You can use MicroPython to enhance the intelligence of the XBee to enable you to do edge-computing by adding business logic in MicroPython, rather than using external components. Example: hello world Example: turn on an LED Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 17: Identify The Kit Contents
One SIM card Note NB-IoT kits (Digi product number XK3-C-N1-UT-E) do not include a SIM card. Contact your NB-IoT mobile carrier provider to obtain a SIM card and service. Acquire a SIM card. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 18: Acquire A Sim Card
Get started with the XBee Smart Modem Development Kit Acquire a SIM card Acquire a SIM card NB-IoT kits (Digi product number XK3-C-N1-UT-E) do not include a SIM card. The sections below explain how to purchase an NB-IoT SIM card in the US and Europe. US customers In the US, Digi XBee3®...
Page 19: Connect The Hardware
SIM card into the XBee Smart Modem before attaching the XBee device to the board. Note NB-IoT kits (Digi product number XK3-C-N1-UT-E) do not include a SIM card. Contact your NB-IoT mobile carrier provider to obtain a SIM card and service. See Acquire a SIM card.
Page 20 6. Connect the USB cable from a PC to the USB port on the development board. The computer searches for a driver, which can take a few minutes to install. If you have trouble downloading the USB driver, see Other possible issues. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 21: Xbib-U-Dev Reference
Get started with the XBee Smart Modem Development Kit XBIB-U-DEV reference XBIB-U-DEV reference This picture shows the XBee USB development board and the table that follows explains the callouts in the picture. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 22 DS2: DIO12, the LED illuminates when driven low. DS3: DIO11, the LED illuminates when driven low. DS4: DIO4, the LED illuminates when driven low. Connects the Digi XBee3® Cellular LTE-M/NB-IoT modem to the Through-hole XBee XBee USB development board. sockets 20-pin header Maps to standard through-hole XBee pins.
Page 23: Xbib-Cu-Th Reference
Get started with the XBee Smart Modem Development Kit XBIB-CU-TH reference XBIB-CU-TH reference This picture shows the XBee-CU-TH development board and the table that follows explains the callouts in the picture. Note This module is sold separately. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 24 RESET Button Connects to the RESET pin on the XBee Connector to GND when pressed. Breakout This 40 pin connector can be used to connect to various XBee pins as Connector shown on the silkscreen on the bottom of the board. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 25 This is the socket for the XBee (TH form factor). XBee Test Allows easy access for probes for all 20 XBee TH pins. Pin 1 is shorted to Point Pins Pin 1 on the XBee and so on. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 26: Xbib-C-Gps Reference
Note For a demo of how to use MicroPython to parse some of the GPS NMEA sentences from the UART, print them and report them to Digi Remote Manager, see Run the MicroPython GPS demo. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 27: Interface With The Xbib-C-Gps Module
MicroPython capabilities). There are two ways to interface with the XBIB-C-GPS board: through the host board’s Secondary UART or through the I2C compliant lines. The following picture shows a typical setup: Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 28: I2C Communication
Class UART. Run the MicroPython GPS demo The Digi MicroPython github repository contains a GPS demo program that parses some of the GPS NMEA sentences from the UART, prints them and also reports them to Digi Remote Manager. Note If you are unfamiliar with MicroPython on XBee you should first run some of the tutorials earlier in this manual to familiarize yourself with the environment.
Page 29: Cellular Service
Cellular service Digi now offers Cellular Bundled Service plans. This service includes pre-configured cellular data options that are ideal for IoT applications, bundled together with Digi Remote Manager for customers who want to remotely monitor and manage their devices. Note The Digi Cellular Bundled Service plan is not offered for NB-IoT.
Page 30: Configure And Update Your Xbee
Digi radio frequency (RF) devices through a graphical interface. The application includes built-in tools that make it easy to set up, configure, and test Digi RF devices. XCTU does not work directly over an SPI interface.
Page 31: Update To The Latest Firmware From Xctu
Note LTE-M is configured by default. You can skip this section if you are using LTE-M. If you are using an NB-IoT kit, you must configure the device to use NB-IoT. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 32 6. To set the CP, in the CP field, select No Profile (1) and click the Write button 7. Reset the module with either the reset button or issue the command. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 33: Check For Cellular Registration And Connection
If the carrier makes a change to the service, reset the module and wait 5-6 minutes. If the carrier does not make a change to the service, then contact Digi support. Check for cellular registration and connection In the following examples, proper cellular network registration and address assignment must occur successfully.
Page 34: Update An Xbee Module From A2.00 To A2.01 Using Api Mode
FTP server and the script attempts to apply the appropriate update files based on intelligence built into the script. The optional arguments should only rarely need to be changed and generally only if the Digi FTP server is not accessible on a private APN, or by direction of Digi Technical Support.
Page 35 3. Navigate to the directory containing the script. 4. Run pip install -r requirements.txt in the directory containing the script. 5. Verify that you are in the same directory as the script. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 36 How the script works. 8. When complete, a digi-update.log text file is created, which contains a copy of the log messages emitted to the terminal while the script was running. 9. A successful update appears as: 2019-06-27 16:06:28,479 update.py: INFO: Reading cellular component version string (ATMV)...
Page 37: Update An Xbee Module From A2.00 To A2.01 Using Fota
Internal Error), repeat for the next package number. If this was package number 3, stop and contact Digi Technical Support. 6. Download the relevant "stage 2" update file from Digi's FTP server, using HTTP. For example, http://ftp1.digi.com/support/ublox/2stg-upd-for-IP/stg2-pkg- 5.6A2.00_to_5.6A2.01.pkg. The file name is stg2-pkg-5.6A2.00_to_ 5.6A2.01.pkg.
Page 38 FTP server and the script attempts to apply the appropriate update files based on intelligence built into the script. The optional arguments should only rarely need to be changed and generally only if the Digi FTP server is not accessible on a private APN, or by direction of Digi Technical Support.
Page 39: Xbee Bootloader
Note Disable hardware flow control when entering and communicating with the XBee3 cellular bootloader. All serial communications with the module use 8 data bits, no parity bit, and 1 stop bit. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 40 Get started with the XBee Smart Modem Development Kit XBee bootloader You can update firmware on the XBee Smart Modem serially. This is done by invoking the bootloader and transferring the firmware image using XMODEM. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 41: Xbee Connection Examples
Connect to the ELIZA server Connect to the Daytime server Perform a (GET) HTTP request Get started with CoAP Connect to a TCP/IP address Get started with MQTT Debugging Software libraries Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 42: Connect To The Echo Server
8. To enter the destination IP port number, in the DE field, type 2329 and click the Write button. Note XCTU does not follow the standard hexadecimal numbering convention. The leading 0x is not needed in XCTU. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 43 11. Click in the left pane of the Console log, then type in the Console to talk to the echo server. The following screenshot provides an example of this chat. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 44: Connect To The Eliza Server
10. Click in the left pane of the Console log, then type in the Console to talk to the ELIZA Therapist Bot. The following screenshot provides an example of this chat with the user's text in blue. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 45 XBee connection examples Connect to the ELIZA server Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 46: Connect To The Daytime Server
For instructions on using the Console, see the AT console topic in the XCTU User Guide. 10. Click the Open button to open a serial connection to the device. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 47 Connect to the Daytime server 11. Click in the left pane of the Console log, then type in the Console to query the Daytime server. The following screenshot provides an example of this chat. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 48: Perform A (Get) Http Request
2E 6F 72 67 0D 0A 0D 0A Note The HTTP protocol requires an empty line (a line with nothing preceding the CRLF) to terminate the request. 15. Click Add packet. 16. Click the Open button Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 49 XBee connection examples Perform a (GET) HTTP request 17. Click Send selected packet. 18. A GET HTTP response from httpbin.org appears in the Console log. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 50: Get Started With Coap
The following diagram shows the message format for the CoAP protocol; see ISSN: 2070-1721 details: This is an example GET request: 44 01 C4 09 74 65 73 74 B7 65 78 61 6D 70 6C 65 Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 51: Configure The Device
Read to get an update on the AI value. Example: manually perform a CoAP request Follow the steps in Configure the device prior to this example. This example performs the CoAP GET request: Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 52: Example: Use Python To Generate A Coap Message
HTTP protocol and how to do this using the XBee Smart Modem. In this example, the XBee Smart Modem talks to a CoAP Digi Server. You can use this client code to provide an abstract wrapper to generate a CoAP message that commands the XBee Smart Modem to talk to the remote CoAP server.
Page 53 In the following figure, the payload contains the server response to the query. It shows the results for when you press Enter rather than Y. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 54: Connect To A Tcp/Ip Address
Exit Command mode. After exiting Command mode, any UART data sent to the device is sent to the destination IP address and port number after the RO (Packetization Timeout) occurs. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 55: Get Started With Mqtt
The following table is an example connect packet: Description Hex value CONNECT packet fixed header byte 1 Control packet type 0x10 byte 2 Remaining length 0x10 CONNECT packet variable header Protocol name Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 56 Clean Session flag, which indicates to the client and broker to discard any previous session and start a new one. Keep Alive How often the client pings the broker to keep the connection alive; in this example it is set to 60 seconds. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 57: Send A Connect Packet
The length of the ID (in bytes) precedes the ID itself. Each client connecting to a broker must have a unique client ID. In the example, the ID is DIGI. When using the Paho MQTT Python libraries, a random alphanumeric ID is generated if you do not specify an ID.
Page 58: Example: Send Messages (Publish) With Mqtt
A basic Python example of a node publishing (sending) a message is: mqttc = mqtt.Client("digitest") # Create instance of client with client ID “digitest” mqttc.connect("m2m.eclipse.org", 1883) # Connect to (broker, port, keepalive-time) Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 59: Example: Receive Messages (Subscribe) With Mqtt
# Define callback function for successful connection client.on_message = on_message # Define callback function for receipt of a message # client.connect("m2m.eclipse.org", 1883, 60) # Connect to (broker, port, keepalive-time) client.connect('127.0.0.1', 17300) Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 60: Use Mqtt Over The Xbee Cellular Modem With A Pc
4. You can make the proxy with a dual-threaded Python script, a simple version follows: import threading import serial import socket def setup(): """ This function sets up the variables needed, including the serial port, and it's speed/port settings, listening socket, and localhost adddress. """ Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 61 - socket has closed. Exiting socket reader thread.") return 1 # Exit the thread to avoid a loop of 0-byte receptions else: print("Received {} bytes from client via socket.".format(len (data))) Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 62 MQTT client to use the data connection provided by the device. Think of the proxy script as a translator between the MQTT client and the XBee Smart Modem. The following figure shows the basic operation. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 63: Debugging
The XBee Python Library is a Python API that dramatically reduces the time to market of XBee projects developed in Python and facilitates the development of these types of applications, making it an easy process. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 64: Get Started With Micropython
Use XCTU to enter the MicroPython environment Use the MicroPython Terminal in XCTU Example: hello world Example: turn on an LED Example: debug the secondary UART Exit MicroPython mode Other terminal programs Use picocom in Linux Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 65: About Micropython
. We recommend using flow control to avoid data loss, especially when pasting large amounts of code/text. 5. Put the XBee Smart Modem into MicroPython mode, in the AP field select MicroPython REPL [4] and click the Write button Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 66: Use The Micropython Terminal In Xctu
1. Note the DS4 LED on the XBIB board. The following image highlights it in a red box. The LED is normally off. Other terminal programs if you do not use the MicroPython Terminal in XCTU. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 67: Example: Debug The Secondary Uart
You have successfully controlled an LED on the board using basic I/O. Example: debug the secondary UART This sample code is handy for debugging the secondary UART. It simply relays data between the primary and secondary UARTs. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 68: Exit Micropython Mode
Tera Term, if you use Linux, follow the instructions for picocom. To download these programs: Tera Term for Windows; see https://ttssh2.osdn.jp/index.html.en. Picocom for Linux; see https://developer.ridgerun.com/wiki/index.php/Setting_up_Picocom_-_ Ubuntu and for the source code and in-depth information https://github.com/npat- efault/picocom. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 69: Tera Term For Windows
Receive drop-down menu and select CR if it does not already show that value. c. Make sure the Local echo box is not checked. 9. Click OK. 10. Press Ctrl+B to get the MicroPython version banner and prompt. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 70: Use Picocom In Linux
3. Check the directory again and you should see one additional device, which is the XBee Smart Modem. 4. In this case, replace /dev/ttyUSB0 at the top with /dev/ttyUSB<number>, where <number> is the new number that appeared. 5. It should connect and show Terminal ready. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 71 Get started with MicroPython Use picocom in Linux Now you can type MicroPython commands at the >>> prompt. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 72: Get Started With Ble
Before you begin, you should determine the password you want to use for BLE on the XBee device and store it in a secure place. Digi recommends a secure password of at least 8 characters and a random combination of letters, numbers, and special characters. Digi also recommends using a security management tool such as LastPass or Keepass for generating and storing passwords for many devices.
Page 73: Get The Digi Xbee Mobile Phone Application
8. Click OK to save the configuration. Get the Digi XBee Mobile phone application To see the nearby devices that have BLE enabled, you must get the free Digi XBee Mobile application from the iOS App Store or Google Play and downloaded to your phone.
Page 74: Connect With Ble And Configure Your Xbee Device
Android 5.0 or higher iOS 11 or higher Connect with BLE and configure your XBee device You can use the Digi XBee Mobile application to verify that BLE is enabled on your XBee device. Get the Digi XBee Mobile phone application. 2. Open the Digi XBee Mobile application. The Find XBee devices screen appears and the app automatically begins scanning for devices.
Page 75: Xbee Api Ble Service
If the Bluetooth Unlock API Frame has not been executed, all other API frames will be silently ignored and not processed. API Response characteristic UUID: f9279ee9-2cd0-410c-81cc-adf11e4e5aea Permissions: Readable, Indicate Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 76 Response data will be presented through indications on this characteristic. Indications are acknowledged and re-transmitted at the BLE link layer and application layer and provides a robust transport for this data. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 77: Get Started With Digi Remote Manager
Get started with Digi Remote Manager Digi Remote Manager® is a cloud-based device and data management platform that you can use to configure and update a device, and view and manage device data. Note Digi Remote Manager requires TCP and will not work with NB-IoT, unless the carrier supports TCP.
Page 78: Create A Remote Manager Account
Guide, available via the Documentation tab in Remote Manager. Note Digi Remote Manager requires TCP and will not work with NB-IoT, unless the carrier supports TCP. Before you can manage an XBee with Remote Manager, you must create a Remote Manager account.
Page 79: Verify The Connection Between A Device And Remote Manager
Update your security certificates Perform a data service device request Send an SMS message to your device Scheduled tasks can be created and performed through the following methods: Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 80: Overview: Create A Schedule For A Set Of Tasks
9. Click Run Now. Examples The examples in the following sections assume you are using the Digi Remote Manager Schedule wizard. However, you should be aware that operations can be created and performed programmatically via web service calls or via the API explorer. The XML web service calls provide more options than are available in the GUI dashboard for some tasks.
Page 81: Example: Configure A Device From Remote Manager Using Xml
You must upgrade your device to the latest firmware for this feature to be available. See Update the firmware from Remote Manager Update the firmware using web services in Remote Manager. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 82: Example: Update Xbee Firmware Using Remote Manager
Configure Remote Manager features by scheduling tasks Note Digi Remote Manager requires TCP and will not work with NB-IoT, unless the carrier supports TCP. In this configuration example, you are changing the device to poll four times a day instead of just once.
Page 83: Example: Update Micropython From Remote Manager Using Xml
Remote Manager Update the firmware using web services in Remote Manager. Note Digi Remote Manager requires TCP and will not work with NB-IoT, unless the carrier supports TCP. To upgrade using a scheduled task perform the following steps: Step 1: 1.
Page 84 Remote Manager Update the firmware using web services in Remote Manager. Note Digi Remote Manager requires TCP and will not work with NB-IoT, unless the carrier supports TCP. Step 1: Upload the MicroPython files Log into Remote Manager.
Page 85 <event> <on_error> <continue/> </on_error> </event> <sci> <reboot allowOffline="true" waitForReconnect="true"/> </sci> </command>  <command> <name>Upload Files</name> <event> <on_error> <continue/> </on_error> </event> <sci> <file_system allowOffline="true" > <commands> <put_file path="/flash/main.py"> <file>~/MicroPython/main.py</file> Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 86 <PS>1</PS> </micropython> <remote_manager> <MO>6</MO> </remote_manager> </set_setting> </rci_request> </send_message> </sci> </command>  <command> <name>Reboot</name> <event> <on_error> <end_task/> </on_error> </event> <sci> <reboot allowOffline="true" waitForReconnect="false"/> </sci> </command> </task> Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 87: Restore Persistent Connection To A Remote Xbee
7 to connect securely over TLS, or you can use 1 for no security, which is the legacy value. You can make the change using one of the following methods: Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 88: Manage Data In Remote Manager
10. Click Device Management > Operations to view information about the operation. See Operations in the Digi Remote Manager® User Guide for more information about this page. Manage data in Remote Manager You can view and manage XBee data in Remote Manager. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 89: Review Device Status Information From Remote Manager
Update the firmware using web services in Remote Manager. Note Digi Remote Manager requires TCP and will not work with NB-IoT, unless the carrier supports TCP. 1. Set up a persistent connection to connect the device to Remote Manager using one of the following methods: Remote Manager: A persistent connection can be set up in Remote Manager.
Page 90 XBee3 CAT 1 31011 Note Digi Remote Manager requires TCP and will not work with NB-IoT, unless the carrier supports TCP. WARNING! The firmware version 1140F reorganizes the product's flash memory and upgrades the product to version 11410. You cannot downgrade to a version earlier than 11410 after installing 1140F/11410.
Page 91: Update The Firmware Using Web Services In Remote Manager
11410. You cannot downgrade to a version earlier than 11410 after installing 1140F/11410. Note Digi Remote Manager requires TCP and will not work with NB-IoT, unless the carrier supports TCP. 1. Download the updated firmware file for your device from Digi's support site.
Page 92 # Remote Manager device ID of the device being updated device_id = '00010000-00000000-03526130-70153378' # Remote Manager username and password username = "my_remote_manager_username" password = "my_remote_manager_password" url = 'https://remotemanager.digi.com/ws/sci' # Form update_firmware request Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 93 <device id="{}"/> </targets> <data>{}</data> </update_firmware> </sci_request> """.format(device_id, fw_data) # Post request r = requests.post(url, auth=(username, password), data=data) if (r.status_code != 200) or ("error" in r.content.decode('utf-8')): print("firmware update failed") else: print("firmware update success") Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 94: Manage Secure Files In Remote Manager
Manage secure files in Remote Manager You can interact with files on the XBee device from Remote Manager, using either the SCI (Server command interface) or in the File Management view. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 95: Remote Manager Reference
Remote Manager. Remote Manager reference Enable SM/UDP You can use the SM/UDP feature to leverage the very small data footprint of Remote Manager SM protocol over UDP. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 96: Disconnect
Manager inventory device list and be active. Note Digi Remote Manager requires TCP and will not work with NB-IoT, unless the carrier supports TCP. 1. Set up a persistent connection to connect the device to Remote Manager using one of the following methods: Remote Manager: A persistent connection can be set up in Remote Manager.
Page 97 Request connect feature in Remote Manager. Digi Remote Manager is enabled on the XBee by default and has a 60 second keepalive interval, which can result in excessive cellular data usage, depending on your plan. The commands can be used to tune the keepalive interval. Your carrier will disconnect an inactive socket automatically if there is no activity, so you need to tune this value based on your carrier’s disconnect timeout.
Page 98 (international) code, you can re-configure the device using the DP (Remote Manager Phone Number) RI (Remote Manager Service ID) commands. 10. Click Save. 11. When all changes are complete, disconnect the device from Remote Manager. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 99: Technical Specifications
Technical specifications Interface and hardware specifications Cellular RF characteristics Bluetooth RF characteristics Cellular networking specifications Power requirements Power consumption Electrical specifications Regulatory approvals Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 100: Interface And Hardware Specifications
Receive sensitivity, 2 Mb/s data rate -88 dBm Operating frequency band ISM 2.4 - 2.4835 GHz Cellular networking specifications The following table provides the networking and carrier specifications for the device. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 101: Power Requirements
Digi Trustfence™ Downlink/uplink speeds Up to 375 kb/s Duplex mode Half-duplex Power requirements The following table provides the power requirements for the device. Specification Value Supply voltage 3.3 to 4.3 V Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 102: Power Consumption
Active mode current Idle/connected, 20 mA 35 mA listening Power save mode 20 µA Not supported current Deep sleep current 10 µA 10 µA (USB direct mode must be disabled during sleep) Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 103: Electrical Specifications
Electrical specifications The following table provides the electrical specifications for the XBee Smart Modem. Symbol Parameter Condition Typical Units VCCMAX Maximum limits of VCC line (VCC - 0.15 V) or 3.3 V, VDD_IO Internal supply voltage VCC or 3.3 V, whichever is whichever is lower for I/O lower...
Page 104: Regulatory Approvals
IC: 1846A-XB3M1 Innovation, Science and Economic Development Canada (ISED) IC: 8595A-2AGQN4NNN RoHS Lead-free and RoHS compliant AT&T end-device certified Complete Verizon end-device certified Complete PTCRB Complete Declaration ID: D042514 Bluetooth QDID: 121268 Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 105: Hardware
Hardware Mechanical drawings Pin signals RSSI PWM SIM card Associate LED functionality Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 106: Mechanical Drawings
Hardware Mechanical drawings Mechanical drawings The following figures show the mechanical drawings for the XBee Smart Modem. All dimensions are in inches. Pin signals The pin locations are: Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 107: Pin Connection Recommendations
To ensure compatibility with future updates, make USB D+ and D- (pin 7 and pin 8) available in your design. DIO12/SPI_MISO and DIO4/SPI_MOSI (pin 4 and pin 11) may optionally be configured as a secondary UART serial port using MicroPython. See the Digi MicroPython Programming Guide for details. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 108: Rssi Pwm
DI (Remote Manager Indicator) (Protocol/Connection Indication) for the cause of the error. Standard single blink 1 second Normal operation. The normal association LED signal alternates evenly between high and low as shown below: Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 109 Where the low signal means LED off and the high signal means LED on. When CI is not 0 or 0xFF, the Associate LED has a different blink pattern that looks like this: Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 110: Antenna Recommendations
Antenna recommendations Antenna placement Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 111: Antenna Placement
Often, small antennas are desirable, but may come at the cost of reduced range and efficiency. If you implement the Bluetooth interface, ensure that the Bluetooth and cellular antennas are at least 3 inches apart (6 inches recommended) to prevent cellular sensitivity from being degraded. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 112: Design Recommendations
Design recommendations Cellular component firmware updates Power supply considerations Minimum connection diagram Heat considerations and testing Custom configuration: Create a new factory default Clean shutdown Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 113: Cellular Component Firmware Updates
3.2 V during operation. Minimum connection diagram In high EMI noise environments, we recommend adding a 10 nF ceramic capacitor very close to pin 5. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 114: Heat Considerations And Testing
Bluetooth is enabled by default. When you use the RE command to reset the device to the factory defaults, the Bluetooth configuration is set to the custom configuration (enabled) rather than the original factory default (disabled). Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 115: Set A Custom Configuration
WARNING! Improper shutdown of the modem may result in the underlying cellular module becoming irrecoverably unresponsive. Digi strongly recommends performing a clean shutdown procedure on your XBee cellular devices before removing power from the devices. Performing a shutdown allows the module to unregister from the cellular network and safely store operating parameters.
Page 116: Sleep Feature
Change the XBee configuration to use Airplane mode (AM=1). This puts the XBee into a safe state for shutdown. 1. Set AM=1. 2. Apply configuration change. 3. Wait 30 seconds to allow time for shutdown to occur. 4. Power off the device. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 117: Cellular Connection Process
Cellular connection process Connecting Data communication with remote servers (TCP/UDP) Disconnecting Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 118: Connecting
1. The server closes the connection. 2. The TM timeout expires (see TM (IP Client Connection Timeout)). 3. The cellular network may also close the connection after a timeout set by the network operator. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 119: Disconnecting
2. The cellular connection is shut down. 3. The cellular component is powered off. Note We recommend entering Airplane mode before resetting or rebooting the device to allow the cellular module to detach from the network. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 120: Modes
Modes Select an operating mode Transparent operating mode API operating mode Command mode MicroPython mode USB direct mode Bypass operating mode (DEPRECATED) Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 121: Select An Operating Mode
Bypass operating mode. The default mode is Transparent operating mode. Use the AP (API Enable) command to select a different operating mode. The following flowchart illustrates how the modes relate to each other. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 122: Transparent Operating Mode
When the device is in Command mode, it listens for user input and is able to receive AT commands on the UART. If CT time (default is 10 seconds) passes without any user input, the device drops out of Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 123: Troubleshooting
Response to AT commands When using AT commands to set parameters the XBee Smart Modem responds with OK<cr> if successful and ERROR<cr> if not. For devices with a file system: Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 124: Apply Command Changes
REPL or code launched at startup. When code runs in MicroPython with AP set to a value other than 4, stdout goes to the bit bucket and there is no input to read on stdin. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 125: Usb Direct Mode
USB direct mode USB direct mode Note In order to use USB direct mode in Digi XBee development kits, you must use the XBIB-C-TH development board. Note You should use this mode if you want to connect using PPP through the cellular modem while using a host operating system, such as embedded Linux.
Page 126: Enter Bypass Operating Mode
AI (Association Indication) and confirming that it returns a value other than 0x2F. Restore cellular settings to default in Bypass operating mode Send AT&F1 to reset the cellular component to its factory profile. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 127: Sleep Modes
Sleep modes About sleep modes Normal mode Pin sleep mode Cyclic sleep mode Cyclic sleep with pin wake up mode SPI mode and sleep pin functionality The sleep timer MicroPython sleep behavior Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 128: About Sleep Modes
XBee Smart Modem, or keeps it awake. De-asserting SPI_SSEL by driving it high puts the device to sleep. If neither pin is configured as a peripheral, then the device stays awake, being unable to sleep when SM (Sleep Mode) is 1. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 129: The Sleep Timer
(b'', (<address from connect()>, <port from connect()>) ) The underlying UDP socket resources have been released at this point. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 130: Power Saving Features
Power saving features Airplane mode Power Saving Mode (PSM) PSM behavior Deep Sleep mode Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 131: Airplane Mode
GSMA for a description of what the PSM timers are and what functions they perform on the network. Deep Sleep mode In Deep Sleep mode the cellular component is shut off and the XBee processor is put to sleep. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 132 Power saving features Deep Sleep mode Note When the XBee Smart Modem enters deep sleep mode, any MicroPython code currently executing is suspended until the device comes out of sleep. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 133: Serial Communication
Serial communication Serial interface Serial data UART data flow Serial buffers CTS flow control RTS flow control Enable UART or SPI ports Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 134: Serial Interface
Devices that have a UART interface connect directly to the pins of the XBee Smart Modem as shown in the following figure. The figure shows system data flow in a UART-interfaced environment. Low- asserted signals have a horizontal line over the signal name. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 135: Serial Buffers
If you change the configuration so that only one port is configured, then that port is the only one enabled or used. If the parameters are written with only one port enabled, then the port that is not enabled is not used even temporarily after the next reset. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 136: I2C
If both ports are disabled on reset, the device uses the UART in spite of the wrong configuration so that at least one serial port is operational. For I C see the Class I2C: two-wire serial protocol section in the MicroPython Programming Guide details. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 137: Spi Operation
SPI operation SPI communications Full duplex operation Low power operation Select the SPI port Force UART operation Data format Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 138: Spi Communications
The following diagram shows the frame format mode 0 for SPI communications. SPI mode is chip to chip communication. We do not supply a SPI communication option on the device development evaluation boards. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 139: Full Duplex Operation
SPI slave to start receiving another valid frame. The following figure illustrates the SPI interface while valid data is being sent in both directions. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 140: Low Power Operation
By default, Digi configures DIO8 (SLEEP_REQUEST) as a peripheral and during pin sleep it wakes the device and puts it to sleep. This applies to both the UART and SPI serial interfaces.
Page 141: Force Uart Operation
The XBee Smart Modem sends 0XFF when there is no data to send to the host. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 142: File System
File system For detailed information about using MicroPython on the XBee Smart Modem refer to the Digi MicroPython Programming Guide. Overview of the file system XCTU interface Encrypt files Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 143: Overview Of The File System
SHA256 hash of file contents available from ATFS HASH command (to compare with a local copy of a file). Encrypted on the SPI flash. MicroPython can execute code in secure files. Sockets can use secure files when creating SSL/TLS connections. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 144: Xctu Interface
SHA256 hash of the file contents. In this way you can validate that the correct file has been placed on the XBee Smart Modem. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 145: Socket Behavior
API mode behavior for incoming UDP data Transparent mode behavior for outgoing TCP and SSL connections Transparent mode behavior for outgoing UDP data Transparent mode behavior for incoming TCP connections Transparent mode behavior for incoming UDP connections Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 146: Supported Sockets
For NB-IoT, TCP support is dependent on the network. Contact your network provider for details. 1 TCP socket is used for Remote Manager, so if you have Remote Manager enabled, subtract 1 socket from the values above. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 147: Socket Limits In Api Mode
If the connection is disconnected at any time, send a Transmit TX Request frame to trigger a new connection attempt. To send data over this connection use the Transmit (TX) Request: IPv4 - 0x20. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 148: Api Mode Behavior For Outgoing Udp Data
The XBee Smart Modem does not currently support the SSL protocol for incoming connections. Note For NB-IoT, TCP support is dependent on the network. Contact your network provider for details. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 149: Api Mode Behavior For Incoming Udp Data
No data has been sent or received for longer than the socket timeout set by TM (IP Client Connection Timeout). You make and apply a change to the IP, DL, or DE. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 150: Transparent Mode Behavior For Outgoing Udp Data
Any data sent to the XBee Smart Modem's serial port is sent to the network destination specified by DL (Destination Address) DE (Destination port) settings. If the DL and DE settings are unspecified or invalid, the XBee Smart Modem discards data sent to the serial port. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 151: Transport Layer Security (Tls)
Transparent mode and TLS API mode and TLS Key formats Certificate formats Certificate limitations Cipher suites Server Name Indication (SNI) Secure the connection between an XBee and Remote Manager with server authentication Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 152: Tls At Commands
This module will only work with the originating end of chain Root CA, so you will need to use that one. For example, with Amazon web services ATS endpoints Digi recommends that you use the Starfield Services Root Certificate from https://www.amazontrust.com/repository/. The intermediate "root CAs"...
Page 153: Transparent Mode And Tls
The RSA PKCS#1 format is the only common format across XBee Cellular device variants. You can identify a PKCS#1 key file by the presence of BEGIN RSA PRIVATE KEY in the file header. Digi's implementation does not support encrypted keys, we use file system encryption to protect the keys at rest in the system.
Page 154: Cipher Suites
The XBee devices that have the x11 or later version of the firmware installed are by default able to secure the TLS connection to Digi Remote Manager. The default configuration provides confidentiality of the communication but is not able to authenticate the server without a certificate being provided.
Page 155: Step 1: Get The Certificate
1. Verify the following settings: Setting Value Bit 0 (mask 0x1) must be set. This enables the use of Digi Remote Manager within the firmware. Bit 1 (mask 0x2) must be set. When this value is set the Remote Manager TCP connection will be secured with TLS.
Page 156 6 to verify that the server was correctly authenticated. 0: Connected without TLS 5: Connected with TLS but without authentication 6: Connected with TLS and with authentication Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 157 I/O settings commands I/O sampling commands Sleep commands Command mode options MicroPython commands Firmware version/information commands Diagnostic interface commands Execution commands File system commands BLE commands Remote Manager commands System commands Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 158: Special Commands
(Write) command after issuing the RE command to save restored parameter values to non-volatile memory. Parameter range Default WR (Write) Writes parameter values to non-volatile memory so that parameter modifications persist through subsequent resets. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 159 AT commands Special commands Note Once you issue a WR command, do not send any additional characters to the device until after you receive the OK response. Parameter range Default Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 160: Cellular Commands
Reads the network operator on which the device is registered. Parameter range Default MV (Modem Firmware Version) Read the firmware version string for cellular component communications. See the related (Firmware Version) command. Parameter range Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 161: Db (Cellular Signal Strength)
Changes to the value only take effect on boot so a reboot or power cycle is required for any changes to become active. Parameter range 0 - 3 Value Description Autodetect from inserted ICCID (SIM) [default] Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 162: Bm (Bandmask) (Lte-M)
1, the BN command will return an error. Changes to the value only take effect on boot so a reboot or power cycle is required for any changes to become active. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 163: Am (Airplane Mode)
This command applies only to XBee3 Cellular LTE-M/NB-IoT. Allows the XBee Cellular LTE-M/NB-IoT module to select the preferred network technology. A reboot or power cycle is required for any parameter changes to become active. Range 0 - 3 Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 164 AT commands Cellular commands Parameter Description LTE-M with NB-IoT fallback. NB-IoT with LTE-M fallback. LTE-M only. NB-IoT only. Default Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 165: Network Commands
Note For NB-IoT, TCP support is dependent on the network. Contact your network provider for details. Range Value Description 0x00 SSL v3 0x01 TLS v1.0 0x02 TLS v1.1 0x03 TLS v1.2 Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 166: Ssl/Tls Profile 0)
0). Note For NB-IoT, TCP support is dependent on the network. Contact your network provider for details. Format server_cert;client_cert;client_key Parameter range From 1 through 127 ASCII characters. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 167: Tm (Ip Client Connection Timeout)
Bit 2 - USB direct enable Set bit 2 to enable USB direct mode. After setting, use WR (Write) to write all values to flash and use FR (Force Reset) to reset the device. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 168: Dt (Cellular Network Time)
32-bit number. This is the default. The response is the current date and time in ISO 8601 format. For example, "2018-12-25T22:00:05". Note You can also send DT, which acts like DT=0. Default Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 169: Addressing Commands
International Dialing Prefix for your calling region, for example, 011 for the United States. Range 7 - 20 ASCII digits including an optional + prefix Default Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 170: N1 (Dns Address)
In API mode, the address is represented as the binary four byte big-endian numeric value representing the IPv4 address. In Transparent or Command mode, the address is represented as a dotted-quad string notation. Parameter range Default 0.0.0.0 Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 171: De (Destination Port)
When you issue LA in API mode, the IP address is formatted in binary four byte big-endian numeric value. In all other cases (for example, Command mode) the format is dotted decimal notation. Range Valid FQDN Default Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 172: Serial Interfacing Commands
0x3 (9600 b/s) NB (Parity) Set or read the serial parity settings for UART communications. Parameter range 0x00 - 0x02 Parameter Description 0x00 No parity 0x01 Even parity 0x02 Odd parity Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 173: Sb (Stop Bits)
To use a carriage return, set to 0xD. Set to zero to disable text delimiter checking. Parameter range 0 - 0xFF Default FT (Flow Control Threshold) Set or display the flow control threshold. The device de-asserts CTS when FT bytes are in the UART receive buffer. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 174: Ap (Api Enable)
Parameter range 0x00 - 0x05 Parameter Description 0x00 API disabled (operate in Transparent mode) 0x01 API enabled 0x02 API enabled (with escaped control characters) 0x03 0x04 MicroPython REPL 0x05 Bypass mode Default Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 175: I/O Settings Commands
Default D1 (DIO1/AD1) Sets or displays the DIO1/AD1 configuration (pin 19). Parameter range 0 - 6 Parameter Description Disabled SPI_ATTN Digital input Digital output, low Digital output, high I2C SCL Default Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 176: D2 (Dio2/Ad2)
Sets or displays the DIO3/AD3 configuration (pin 17). Parameter range 0 - 5 Parameter Description Disabled SPI_SSEL Analog input Digital input Digital output, default low Digital output, default high Default D4 (DIO4) Parameter range Default Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 177: D5 (Dio5/Associated_Indicator)
RTS flow control Digital input Digital output, default low Digital output, default high Default D7 (DIO7/CTS) Sets or displays the DIO7/CTS configuration (pin 12). Parameter range 0, 1, 3 - 5 Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 178: D8 (Dio8/Sleep_Request)
Digital output, default low Digital output, default high Default D9 (DIO9/ON_SLEEP) Sets or displays the DIO9/ON_SLEEP configuration (pin 13). Parameter range 0, 1, 3 - 5 Parameter Description Disabled ON/SLEEP output Digital input Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 179: P0 (Dio10/Pwm0 Configuration)
Fan enable. Output is low when the XBee Smart Modem is sleeping, turning an attached fan off when the cellular component is in a power saving mode, and also during Airplane Mode Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 180: P2 (Dio12 Configuration)
Digital input Digital output, default low Digital output, default high Default P3 (DIO13/DOUT) Sets or displays the DIO13/DOUT configuration (pin 17). Parameter range 0, 1 Parameter Description Disabled UART DOUT enabled Default Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 181: P4 (Dio14/Din)
If you set a PR bit to 0, it specifies no internal pull-up/down resistor. The following table defines the bit-field map for both the PR and PD commands. I/O line Module pin DIO4 pin 11 DIO3/AD3 pin 17 Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 182: M0 (Pwm0 Duty Cycle)
The PWM period is 42.62 µs and there are 0x03FF (1023 decimal) steps within this period. When M0 = 0 (0% PWM), 0x01FF (50% PWM), 0x03FF (100% PWM), and so forth. Parameter range 0 - 0x3FF Default Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 183: I/O Sampling Commands
Each field is a binary number of the size listed in the following table. Multi-byte fields are in big-endian byte order. Field Size Number of samples 1 byte Digital channel mask 2 bytes Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 184 AT commands I/O sampling commands Field Size Analog chanel mask 1 byte Samples 2 bytes each Parameter range Default Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 185: Sleep Commands
Default 0x7530 (5 minutes) ST (Wake Time) Sets or displays the time to spend awake in cyclic sleep modes. Parameter range 0x1 - 0x36EE80 (x 1 ms) Default 0xEA60 (60 seconds) Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 186: Pa (Requested Active Timer)
3GPP timer T3412. Note For NB-IoT, TCP support is dependent on the network. Contact your network provider for details. Parameter range 0 - 0x35683200 (* 1 s) Default 0x8ca00 (576000 s) Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 187: Command Mode Options
Set the required period of silence before and after the command sequence characters of the Command mode sequence (GT + CC + GT). The period of silence prevents inadvertently entering Command mode. Parameter range 0x2 - 0x6D3 (x 1 ms) Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 188 AT commands Command mode options Default 0x3E8 (one second) Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 189: Micropython Commands
A timestamp of 2000-01-01T00:00:00 indicates that the clock was not set during compilation. In API mode, PYC returns five 32-bit big-endian values: source size source hash bytecode size bytecode hash timestamp as seconds since 2000-01-01T00:00:00 Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 190 Sends KeyboardInterrupt to MicroPython. This is useful if there is a runaway MicroPython program and you have filled the stdin buffer. You can enter Command mode (+++) and send ATPY^ to interrupt the program. Default Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 191: Firmware Version/Information Commands
Connected to the Internet. 0x22 Registering to cellular network. 0x23 Connecting to the Internet. 0x24 The cellular component is missing, corrupt, or otherwise in error. The cellular component requires a new firmware image. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 192: Hs (Hardware Series)
Read the device's hardware series number. Parameter range Default Set in the firmware CK (Configuration CRC) Displays the cyclic redundancy check (CRC) of the current AT command configuration settings. Parameter range 0 - 0xFFFFFFFF Default Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 193: Diagnostic Interface Commands
The following AT commands are diagnostic interface commands. DI (Remote Manager Indicator) Displays the current Remote Manager status for the XBee. Note Digi Remote Manager requires TCP and will not work with NB-IoT, unless the carrier supports TCP. Range Value Description 0x00 Connected, but without TLS or authentication.
Page 194 No server - timed out on connection. 0x25 Unknown server - DNS lookup failed. 0x26 Connection refused. 0x27 Connection lost. 0x28 Unknown. 0xFF No known status. Parameter range 0 - 0xFF (read-only) Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 195: As (Active Scan For Network Environment Data)
0 or no value in the service area of the module. When you run the command, the cell module waits until all other communication is idle and then performs the scan. Parameter range Default Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 196: Execution Commands
CAUTION! This command is for advanced users, and you should only use it if the cellular component becomes completely stuck while in Bypass mode. Normal users should never need to run this command. See the FR (Force Reset) command instead. Range Default Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 197: File System Commands
Directory names end with a forward slash (/) to differentiate them from files. Secure files end with a hash mark (#) and you cannot download them. <DIR> ./ <DIR> ../ <DIR> cert/ Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 198: Atfs Put Filename
Report on the size of the filesystem, showing bytes in use, available, marked bad and total. The report ends with a blank line, as with most multi-line AT command output. Example output: Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 199: Atfs Format Confirm
Reformats the file system, leaving it with a default directory structure. Pass the word confirm as the first parameter to confirm the format. The XBee Smart Modem responds with Formatting..., adds a period every second until the format is complete and ends the response with a carriage return. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 200: Ble Commands
XBee device does not allow for 0 to be valid salt. If the value is 0, SRP is disabled and you will not be able to authenticate using Bluetooth. Parameter range 0 - FFFFFFFF Default Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 201: V, $W, $X, $Y (Srp Password Verifier)
The salt is configured in the $S command. In the $V, $W, $X, and $Y verifiers, you specify the 128-byte verifier value, where each command represents 32 bytes of the total 128-byte verifier valule. Parameter range 1 - 32 bytes (1-64 hexadecimal characters in command mode) Default Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 202: Remote Manager Commands
Specify the Remote Manager Device Send Transmit Keepalive Interval value in seconds. The Remote Manager considers a connection to have failed after 3 missed keepalives. This command works with the K1 command to limit data usage. See Configure Remote Manager keepalive interval. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 203: Mo (Remote Manager Options)
Defines the SSL/TLS Remote Manager certificate. Parameter range Default /flash/cert/digi-remote-mgr.pem RI (Remote Manager Service ID) Sets the Remote Manager service ID for the XBee. Configure SMS messaging in Remote Manager for more information. Range Default idgp Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 204: Dp (Remote Manager Phone Number)
Signal Strength. This is the same value as reported by the DB command in dbM and will be reported to the "metrics/signal_strength" Data Stream in Remote Manager for the devices. Default Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 205: System Commands
One ASCII space character (0x20) KC (Contact Information) Sets or displays user-defined contact information for the XBee displayed in Remote Manager. Range Up to 20 ASCII characters Default One ASCII space character (0x20). Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 206: Operate In Api Mode
Operate in API mode API mode overview Use the AP command to set the operation mode API frame format Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 207: Api Mode Overview
Frame data Checksum API operation (AP parameter = 1) This is the recommended API mode for most applications. The following table shows the data frame structure when you enable this mode: Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 208: Api Operation With Escaped Characters (Ap Parameter = 2)
To escape an interfering data byte, insert 0x7D and follow it with the byte to be escaped (XORed with 0x20). The following data bytes need to be escaped: 0x7E: start delimiter 0x7D: escape character Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 209 Frame type is the API frame type identifier. It determines the type of API frame and indicates how the Data field organizes the information. Data contains the data itself. This information and its order depend on the what type of frame that the Frame type field defines. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 210 FF. 01 + 01 + 50 + 01 + 00 + 48 + 65 + 6C + 6C + 6F + B8 = 2FF Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 211 Receive (RX) Packet: SMS - 0x9F Receive (RX) Packet: IPv4 - 0xB0 User Data Relay - 0x2D User Data Relay Output - 0xAD BLE Unlock API - 0x2C BLE Unlock Response - 0xAC Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 212: Api Frames
Byte Command name: two ASCII characters that identify the AT command. command Parameter Byte If present, indicates the requested parameter value to set the given value register. If no characters are present, it queries the register. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 213: At Command: Queue Parameter Value - 0X09
Byte Command name: two ASCII characters that identify the AT command. command Parameter Byte If present, indicates the requested parameter value to set the given value register. If no characters are present, it queries the register. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 214: Transmit (Tx) Sms - 0X1F
(0x0) byte. Use numbers and the + symbol only, no other symbols or letters. Payload Variable Data to send as the body of the SMS message. (160 characters maximum) Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 215: Transmit (Tx) Request: Ipv4 - 0X20
TX Status frame returns an error. Protocol Byte 0 = UDP 1 = TCP 4 = SSL/TLS Note For NB-IoT, TCP support is dependent on the network. Contact your network provider for details. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 216 Ignore this bit for UDP packets. All other bits are reserved and should be 0. Payload Variable Data to be transferred to the destination, may be up to 1500 bytes. UDP is limited to 512 bytes. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 217: Tx Request With Tls Profile - 0X23
If there is no matching socket, the TX Status frame returns an error. TLS profile Byte Zero-indexed number that indicates the profile as specified by the corresponding $<num> command. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 218 Timeout). Ignore this bit for UDP packets. All other bits are reserved and should be 0. Payload Variable Data to be transferred to the destination, may be up to 1500 bytes. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 219: At Command Response - 0X88
Status 1 = ERROR 2 = Invalid command 3 = Invalid parameter Parameter Byte Register data in binary format. If the register was set, then this field is value not returned. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 220: Transmit (Tx) Status - 0X89
Invalid TCP port 0x7A Invalid host address 0x7B Invalid data mode Invalid interface. See User Data Relay - 0x2D. 0x7C Interface not accepting frames. See User Data Relay - 0x2D. 0x7D Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 221 Transmit (TX) Status - 0x89 Code Description 0x80 Connection refused 0x81 Socket connection lost 0x82 No server 0x83 Socket closed 0x84 Unknown server 0x85 Unknown error 0x86 Invalid TLS configuration (missing file, and so forth) Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 222: Modem Status - 0X8A
The BLE Connect and BLE Disconnect events are reported over the UART/SPI interface in API mode when a valid Bluetooth connection has been made and API mode has been unlocked, and also when an unlocked connection disconnects. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 223: Receive (Rx) Packet: Sms - 0X9F
Data type Description Frame 0x9F Byte Type Phone 20 byte String representation of the phone number, padded out with number string null bytes (0x0). Payload Variable Body of the received SMS message. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 224: Receive (Rx) Packet: Ipv4 - 0Xb0
16-bit big endian. LSB 11 MSB 12 0 = UDP Protocol 1 = TCP 4 = SSL over TCP Status Reserved Payload Data received from the source. The maximum size is 1500 bytes. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 225: User Data Relay - 0X2D
BLE connection. Use a cellphone to send the frame with UART interface as a target. Data contained within the frame is sent out the UART contained within an Output Frame. The Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 226 An external processor outputs the Frame over the UART with the Micropython interface as a target. Micropython operates over the data and publishes the data to mqtt topic. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 227: User Data Relay Output - 0Xad
The following table provides the contents of the frame. For details on frame structure, see API frame format. Field name Field value Data type Description Delimiter Length Frame type 0xAD Byte 1 Byte Source interface Data Variable Checksum 1 Byte Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 228: Ble Unlock Api - 0X2C
Format The following table provides the contents of the frame. For details on frame structure, see API frame format. Frame data fields Offset Description Frame type 0x2C = Request 0xAC = Response Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 229 Phase 2 (Server presents B and salt) Frame data field Offset in frame Length salt 4 bytes 128 bytes Phase 3 (Client presents M1) Frame data field Offset in frame Length Hash algorithm digest length (32 bytes for SHA256) Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 230: Example Sequence To Perform At Command Xbee Api Frames Over Ble
3. Optional, but recommended, request a larger MTU for the GATT connection. 4. Turn on indications for the API Response characteristic. 5. Perform unlock procedure using unlock frames. See BLE Unlock API - 0x2C. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 231 Decrypt the stream of content provided through the indications, using the stream cipher as described in the unlock procedure. See BLE Unlock API - 0x2C. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 232: Ble Unlock Response - 0Xac
The XBee Smart Modem uses the BLE Unlock API - 0x2C frame to authenticate a connection on the Bluetooth interface and unlock the processing of AT command frames. This frame is used in conjunction with the Response (0xAC) frame. For details, see BLE Unlock API - 0x2C. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 233 Packaged firmware updates You can perform packaged firmware updates. About packaged firmware updates FW Update - 0x2B FW Update Response - 0xAB Important notes Perform a cellular component firmware update Error recovery Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 234: Packaged Firmware Updates
But to downgrade from Release 3 or greater to Release 2 or less, you must downgrade the cellular component firmware before downgrading the module firmware. Otherwise, the older firmware would not be able to downgrade the cellular component firmware. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 235: Fw Update - 0X2B
This frame is read from the module and it provides the status for each 0x2B frame sent. Format The following table provides the contents of the frame. Frame data fields Offset Type Description uint8 Value from request payload. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 236: Important Notes
Send the last block of the file with the next ID and with bit 1 set to indicate last frame. Wait for an ACK on the final case. The final ACK will not arrive until the update has been applied and verified, which can take up to 25 minutes. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 237: Error Recovery
If the host sets bit 2 of the flags byte in FW Update - 0x2B, the update in progress is aborted. Recovery is then equivalent to the recovery for negative acknowledgments, described above. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 238: Troubleshooting
Correct a macOS Java error Unresponsive cellular component in Bypass mode Syntax error at line 1 Error Failed to send SMS Network connection issues Brownout issue Hardware flow control in Bypass mode Socket leaks Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 239: Cannot Find The Serial Port For The Device
4. Remove the development board from the USB port and view which port name no longer appears in the Discover radio devices list of ports. The port name that no longer appears is the correct port for the development board. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 240: Other Possible Issues
5. Right-click the USB controller and select Properties; a dialog displays. 6. Select the Advanced tab. 7. Check Load VCP. 8. Click OK. 9. Unplug the board and plug it back in. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 241: Correct A Macos Java Error
1. Click More info to open a browser window. 2. Click Download to get the file javaforosx.dmg. 3. Double-click on the downloaded javaforosx.dmg. 4. In the dialog, double-click the JavaForOSX.pkg and follow the instructions to install Java. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 242: Unresponsive Cellular Component In Bypass Mode
4. The device is not getting enough current, for example if power is being supplied only by USB to the XBIB development board, rather than using an additional external power supply. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 243: Network Connection Issues
Silicon Labs has corrected these issues in revision C of their SoC. We are printing the SoC revision on the XBee label to make it easy to distinguish. The revision letter is located on the bottom right corner Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 244: Hardware Flow Control In Bypass Mode
For Transparent and API modes the XBee Smart Modem returns specific status responses to describe that you need to perform a hard reset to recover the leaked sockets. These statuses are: Mode Response CI (Protocol/Connection Indication) reports 0x13 Socket leak Transparent mode Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 245: Solution
When attempting to make a connection to a server you receive errno.ENFILE MicroPython (7023) Solution To recover the leaked sockets and make them available again in all modes, you should perform a reset of the cellular component (hard or soft). Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 246: Regulatory Information
Regulatory information United States (FCC) Innovation, Science and Economic Development Canada (ISED) CE mark (Europe) Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 247: United States (Fcc)
FCC notices IMPORTANT: XBee3 RF Modules have been certified by the FCC for use with other products without any further certification (as per FCC section 2.1091). Modifications not expressly approved by Digi could void the user's authority to operate the equipment.
Page 248: Fcc-Approved Antennas
If the antenna is mounted at least 20 cm from nearby persons, the application is considered a mobile application. The antennas below have been approved for use with this module. Digi does not carry all of these antenna variants. Contact Digi Sales for available antennas.
Page 249: Fcc Publication 996369 Related Information
FCC grant which includes significant extra testing and cost. If an embedded trace or chip antenna is desired contact a Digi sales representative for information on how to engage with a lab to get the modified FCC grant.
Page 250: Innovation, Science And Economic Development Canada (Ised)
énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 251 OEM labeling requirements The CE marking must be affixed to a visible location on the OEM product. CE labeling requirements The CE mark shall consist of the initials “CE” taking the following form: Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...
Page 252 The CE marking must have a height of at least 5mm except where this is not possible on account of the nature of the apparatus. The CE marking must be affixed visibly, legibly, and indelibly. Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide...

Digi XBee3 XB3M1 User Manual

Digixbee3Cellularlte-M/NB-Iotglobalsmartmodemuserguide

Get Started with the Xbee Smart Modem Development Kit

Xbee Connection Examples

Get Started with Micropython

Get Started with BLE

Get Started with Digi Remote Manager

Technical Specifications

Hardware

Antenna Recommendations

Design Recommendations

Cellular Connection Process

Modes

Sleep Modes

Power Saving Features

Serial Communication

SPI Operation

File System

Socket Behavior

Transport Layer Security (TLS)

Atcommands

Quick Links

Troubleshooting

Need help?

Questions and answers

Related Manuals for Digi XBee3 XB3M1

Summary of Contents for Digi XBee3 XB3M1
