Digi XBee-PRO XSC RF Modem Quick Start Manual

Quick Start Guide
XBee-PRO® XSC RF Modem
1 Verify your components
Verify that you have all included equipment. If any item is missing or damaged, contact your supplier.

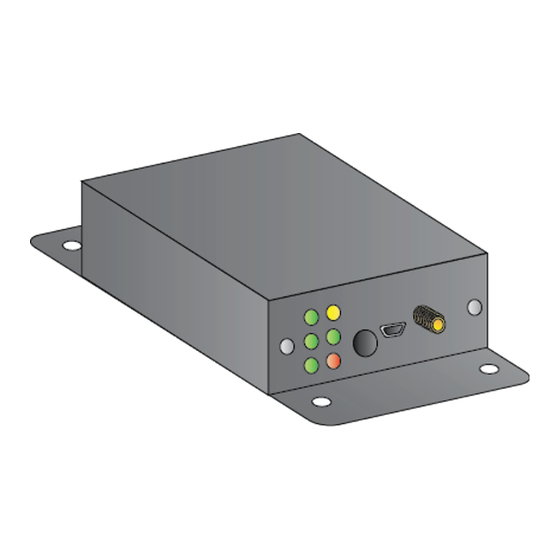

2 Symbols on the RF modem
Not applicable to XSC RF modem
I/O LEDs
Red- Association
Green- Transmit from host
Yellow- Receive from host
Not applicable to XSC RF modem
Antenna port
To get started with your kit, go to the Documentation tab at www.digi.com/support/XBeePROXSC-Modem.
© 2016 Digi International Inc.
Digi, Digi International, and the Digi logo are trademarks or registered trademarks in the United States and other countries worldwide. All other trademarks mentioned in this
document are the property of their respective owners.
Welcome to your Digi product
Get started: This guide helps you with initial product setup. Need more? Find additional
product support at www.digi.com/support/XBeePROXSC-Modem. Or connect to the online
documentation by scanning this code:
Digi Technical Support: Digi offers multiple support plans to help you get the most out of
your product. For information on Technical Support plans and pricing, contact us at
877.912.3444 or visit www.digi.com/support.
Documentation Feedback: To provide feedback on this documentation, send your
comments to techcomm@digi.com.
Included equipment
Reset button
Switch 1-Termination for 2-wire
configuration
Switch 2-Termination for 4-wire
configuration
Power supply (7-30 VDC)
USB port
RS-232 serial port
RS-485 serial port
