Interfaces for automation

No function of the external interrupt equipment (emergency stop switch)!
If the emergency stop circuit has been set up using an external interrupt equipment
connected to the interface for automated welding, the machine must be configured for
this setup. If this is not observed, the power source will ignore the external interrupt
equipment and will not shut down!
•
Remove jumper 1 on the T320/1, M320/1 or M321 PCB!
Equipment damage due to unshielded control leads!
Unshielded control leads can cause damage to the power source and accessory components.
•
Use shielded control leads only.
The power sources satisfy an extremely high safety standard,
even in combination with peripheral devices for mechanised welding, provided these devices comply with
the same criteria, especially with regard to insulation from the mains supply.
When using transformers according to VDE 0551, maintaining this safety standard is ensured.
The welding machines are ready for automated applications as standard.
For common applications, the interface for automated welding is equipped with control inputs and
potential-free relay contacts.

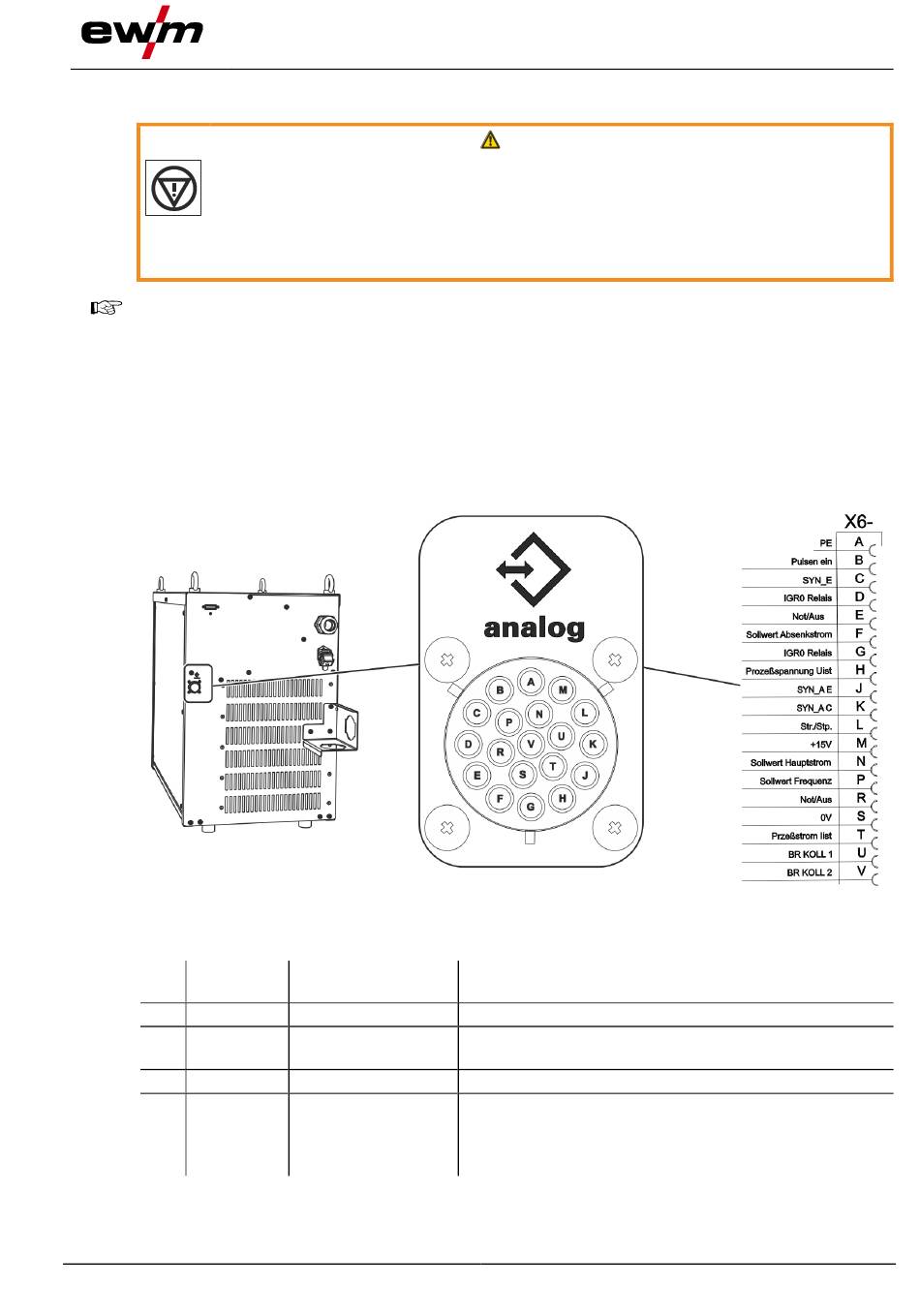

19-pole connection assignments for mechanised welding interface (X6):
Pin Signal
shape
A
Output
B Input
C Input
D Output
099-000141-EW501
20.11.2017
Circuit diagram Function
signal name
PE Connection for cable screen
Pulsen ein Thermal pulse mode up to max. 50 Hz, fixed balance of
50%
SYN_E Synchronisation for master/slave operation
IGRO Relais Current flows signal
I > 0
Contact closed = welding current flowing
(forms contact with signal G)
Design and function
WARNING
Figure 5-41
Interfaces for automation
53
