Design and function
Interfaces for automation
5.5
Interfaces for automation
The manufacturer's warranty becomes void if non-genuine parts are used!
•
Only use system components and options (power sources, welding torches, electrode hold-
ers, remote controls, spare parts and replacement parts, etc.) from our range of products!
•
Only insert and lock accessory components into the relevant connection socket when the ma-
chine is switched off.
Accessory components and the power source itself can be damaged by incorrect connection!
•
Only insert and lock accessory components into the relevant connection socket when the
machine is switched off.
•
Comprehensive descriptions can be found in the operating instructions for the relevant ac-
cessory components.
•
Accessory components are detected automatically after the power source is switched on.
5.5.1

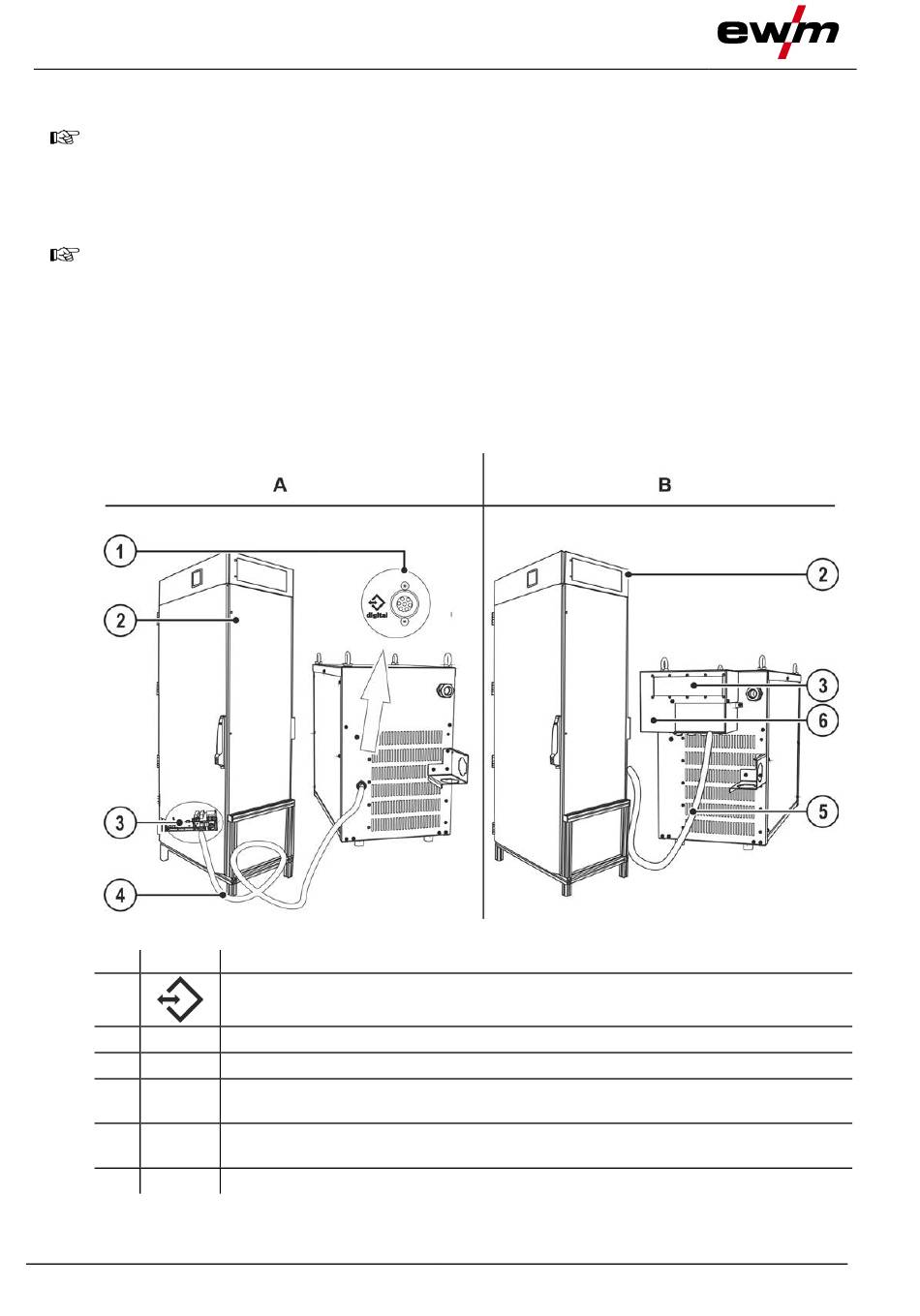

Connecting the robot interface / industrial bus interface
The interfaces can be operated directly on the power source in a separate interface casing or externally,
e.g. in a robot control cabinet or via a data cable.
Item Symbol
1
2
3
4
5
6
58
Description
0
7-pole connection socket (digital)
For connecting digital accessory components
Switching cabinet
Robot interface / Industrial bus interface
7-pole connection cable
Connection between switching cabinet and power source
Connection lead
Connection between interface casing and switching cabinet
Interface casing ATCASE
Figure 5-47
099-000140-EW501
30.01.2024
