The operating mode cannot be changed during the welding process. If welding is started with program 1
(non-latched operating mode), program 2 controls the setting of ignition program 1 despite the latched
setting and is implemented to the end of the welding process.
The pulse function (pulses off, pulses on) and the welding currents are transferred from the
corresponding programs.
5.4.1

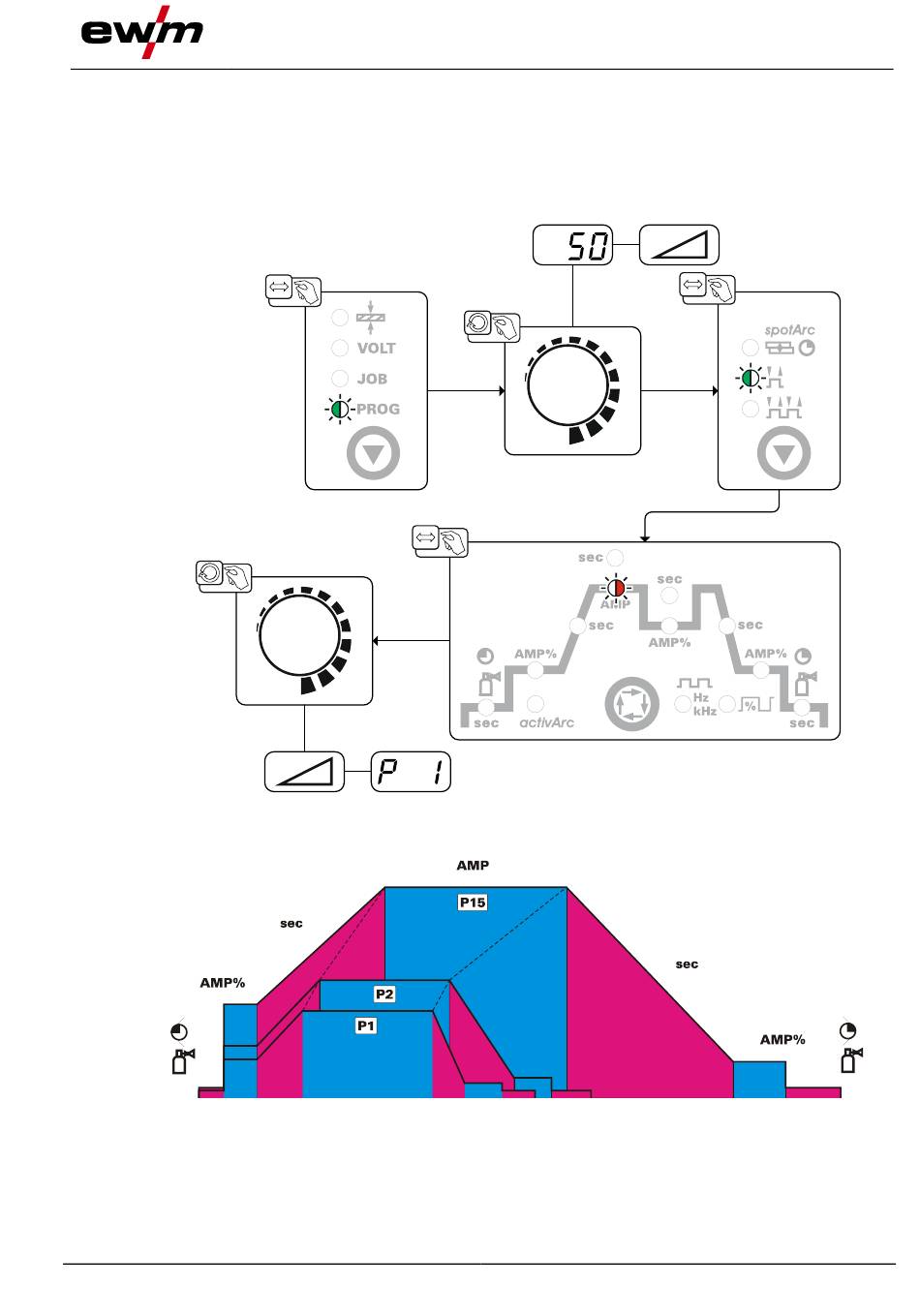

Selection and adjustment

5.4.2

Example "Program with synergetic setting"

099-000141-EW501
20.11.2017
Design and function
Figure 5-36
Figure 5-37
Welding programs
49
