Design and function
TIG welding
5.2.4

Welding torch connection

Item Symbol
1
2
3
4
5
•
Insert the welding current plug on the welding torch into the welding current connection socket and
lock by turning to the right.
•
Screw the crown nut on the shielding gas lead gastight to the connecting thread (G¼").
•
Insert the 19-pole control lead plug into the 19-pole connection socket (analogue) and lock.
30
Description 0
19-pole (analogue) connection socket
Collision protection / sensor voltage control signals
G¼" connection thread, shielding gas connection, outlet
Connection socket, welding current -
Welding torch connection
Welding torch hose package
Welding torch

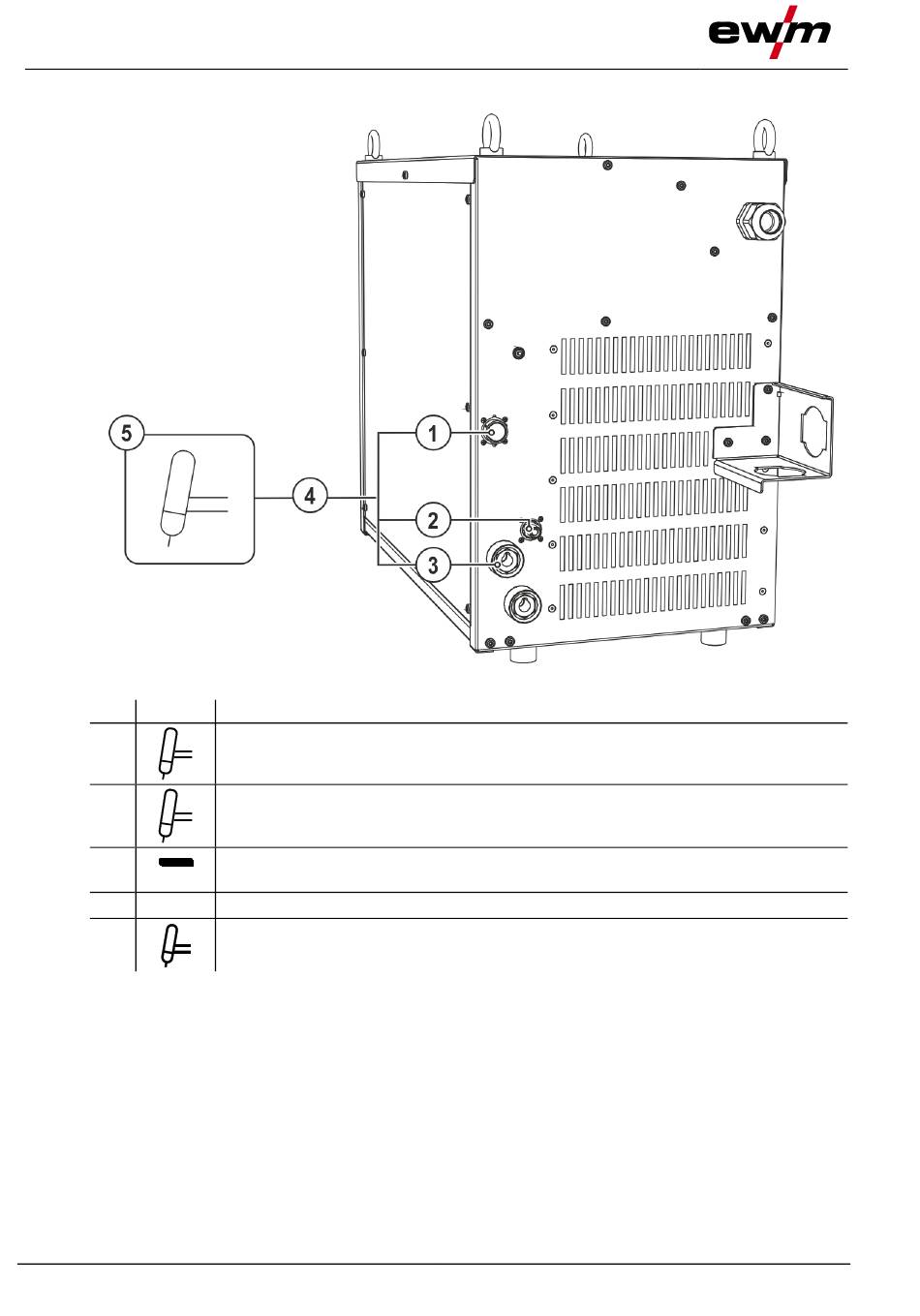

Figure 5-9
