Machine description – quick overview

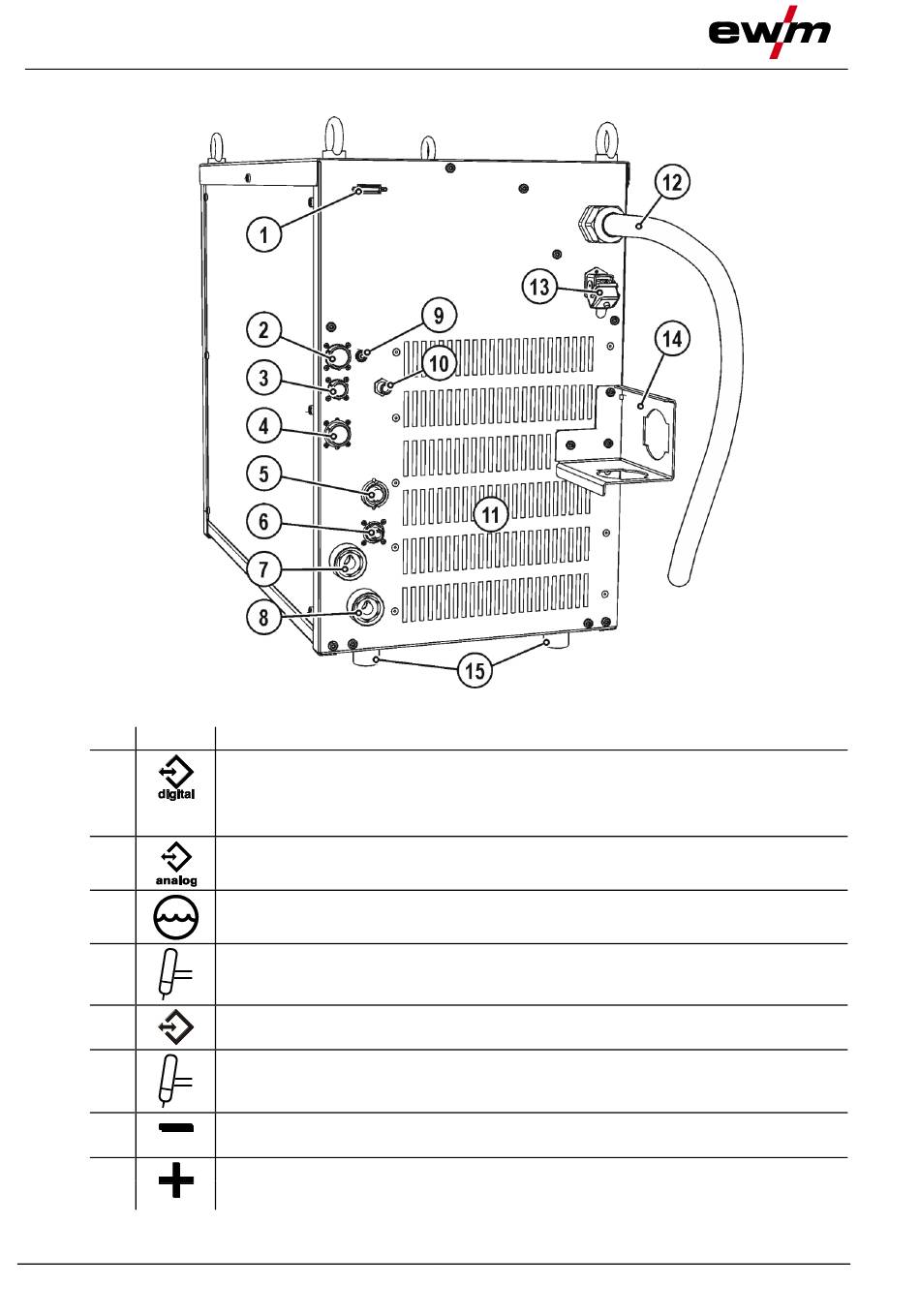

Rear view

4.2 Rear view
Item Symbol
1
2
3
4
5
6
7
8
16
Description 0
Interfaces
Optional interface in the extension casing for assembly onto the power source
•
RINTX11 robot interface
•
BUSINTX10 industrial bus interface
19-pole mechanised welding interface (analogue)
> see 5.6 chapter
8-pole connection socket
Cooling unit control lead
19-pole (analogue) connection socket
Collision protection / sensor voltage control signals
7-pole connection socket (digital)
For connecting digital accessory components
G¼" connection thread, shielding gas connection, outlet
Connection socket, welding current -
Welding torch connection
Connection socket, welding current +
Workpiece connection
Figure 4-2
