Pressure regulator connection

Item Symbol
1
2
3
4
•
Before connecting the pressure regulator to the gas cylinder, open the cylinder valve briefly to blow
out any dirt.
•
Tighten the pressure regulator screw connection on the gas bottle valve to be gas-tight.
•
Screw gas hose connection crown nut onto the output side of the pressure regulator.
099-000141-EW501
20.11.2017
Description 0
Pressure regulator
Shielding gas cylinder
Output side of the pressure regulator
Cylinder valve
Design and function

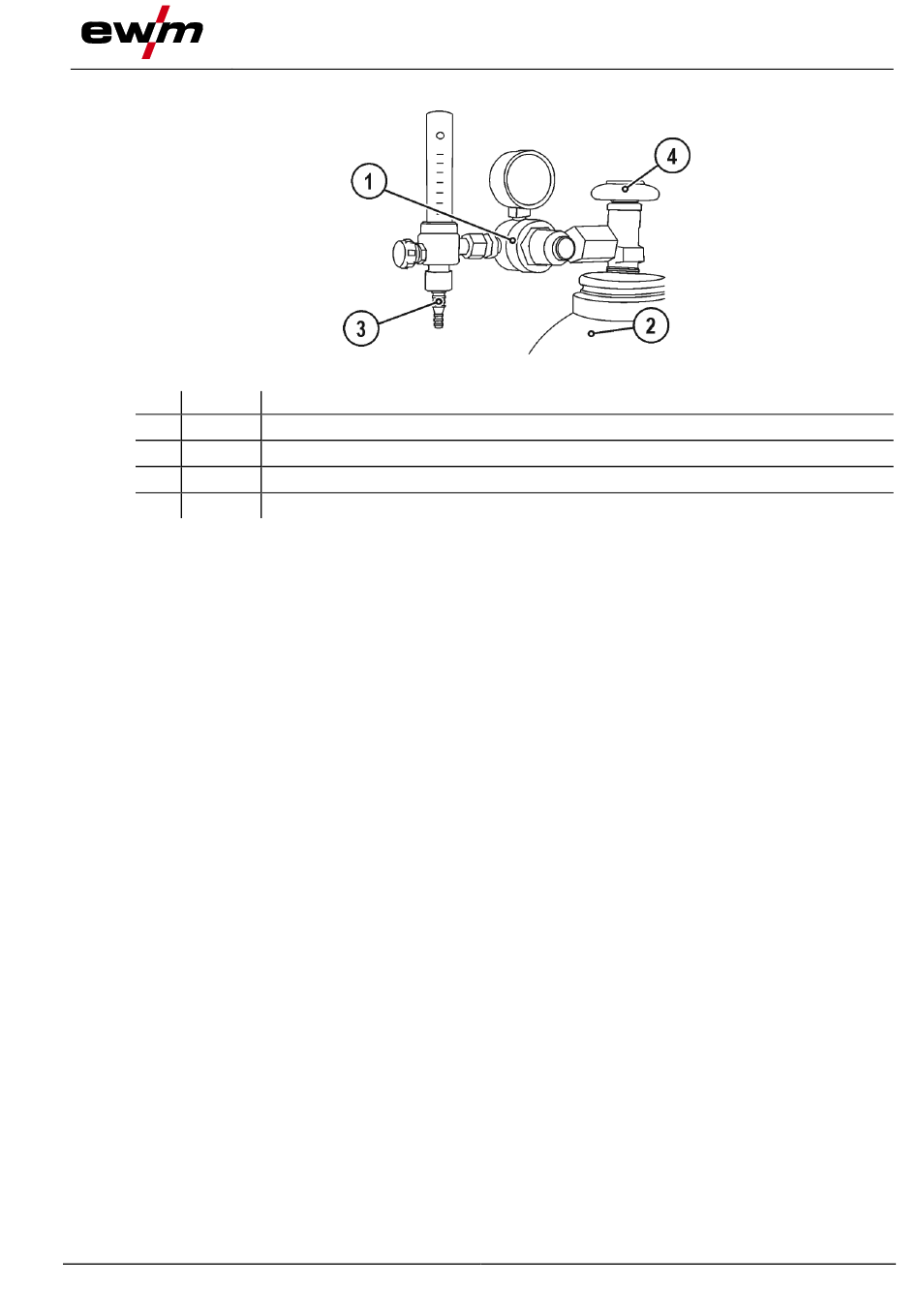

Figure 5-6
TIG welding
