Machine control (Mode RC - off)

Item Symbol
1
2
099-000141-EW501
20.11.2017
Machine description – quick overview
Description 0
Main current (TIG) / pulse current
I min to I max (1 A increments)
Pulse time / slope time
Secondary current (TIG)
Pulse pause time / slope time
The pulse time applies to the secondary current phase (AMP%)
Down-slope time (TIG)
End-crater current signal light
Signal light, gas post-flow time
Balance signal light
Pulse balance
Frequency signal light
Pulse frequency
Signal light activArc
Description 0
"Welding process" button
MMA welding, lights up in green / arcforce setting, lights up in red
TIG synergic welding (synergic parameter setting)
TIG manual welding (manual parameter setting)
Electrode diameter push-button > see 5.2.14 chapter
Ignition optimisation (TIG) > see 5.2.16 chapter
Main current (MMA)
I min to I max (1 A increments)
from AMP% to AMP / Spot time
from AMP to AMP%
> see 5.2.21 chapter

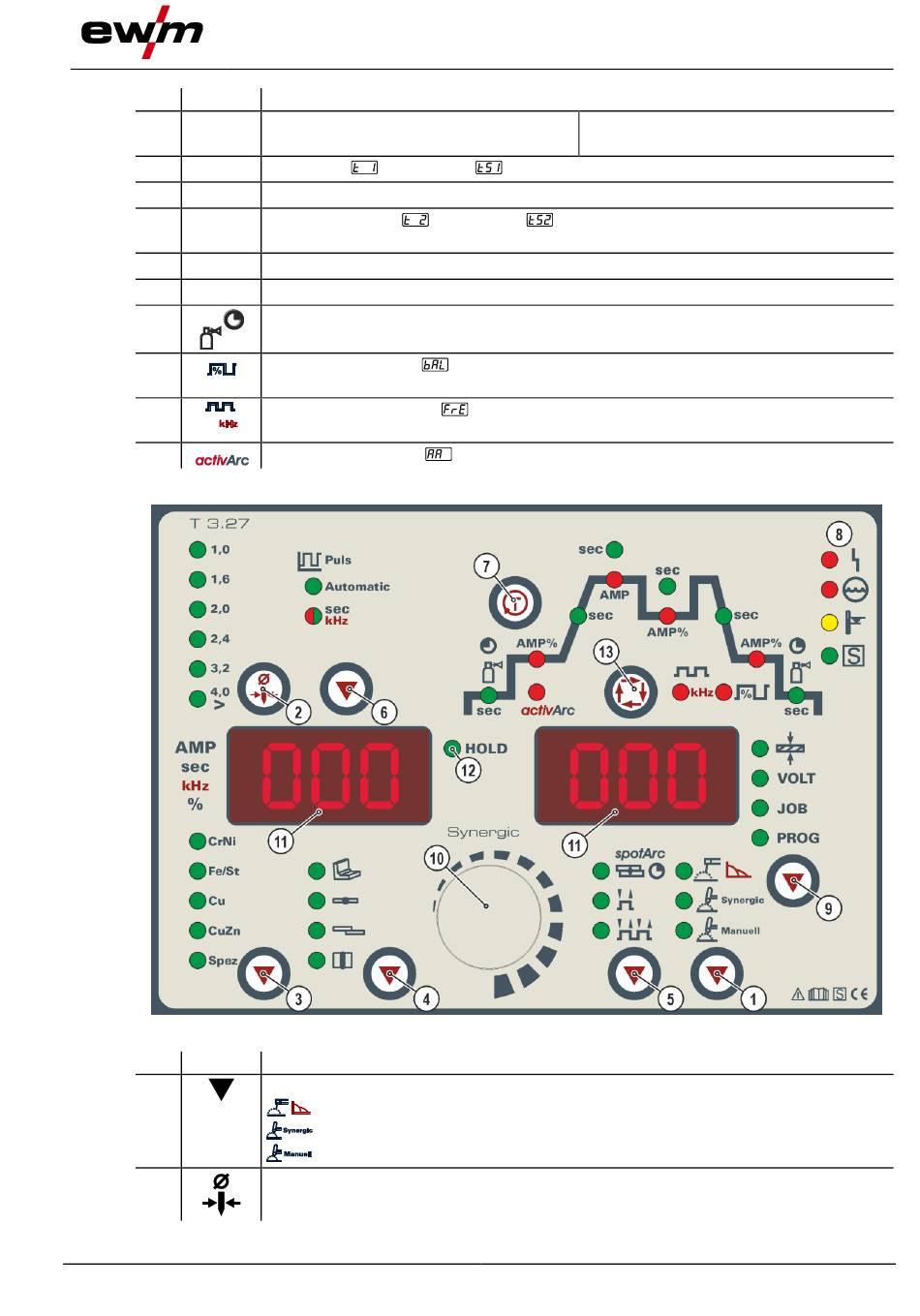

Figure 4-5
