Design and function

TIG welding

5.1.6.1

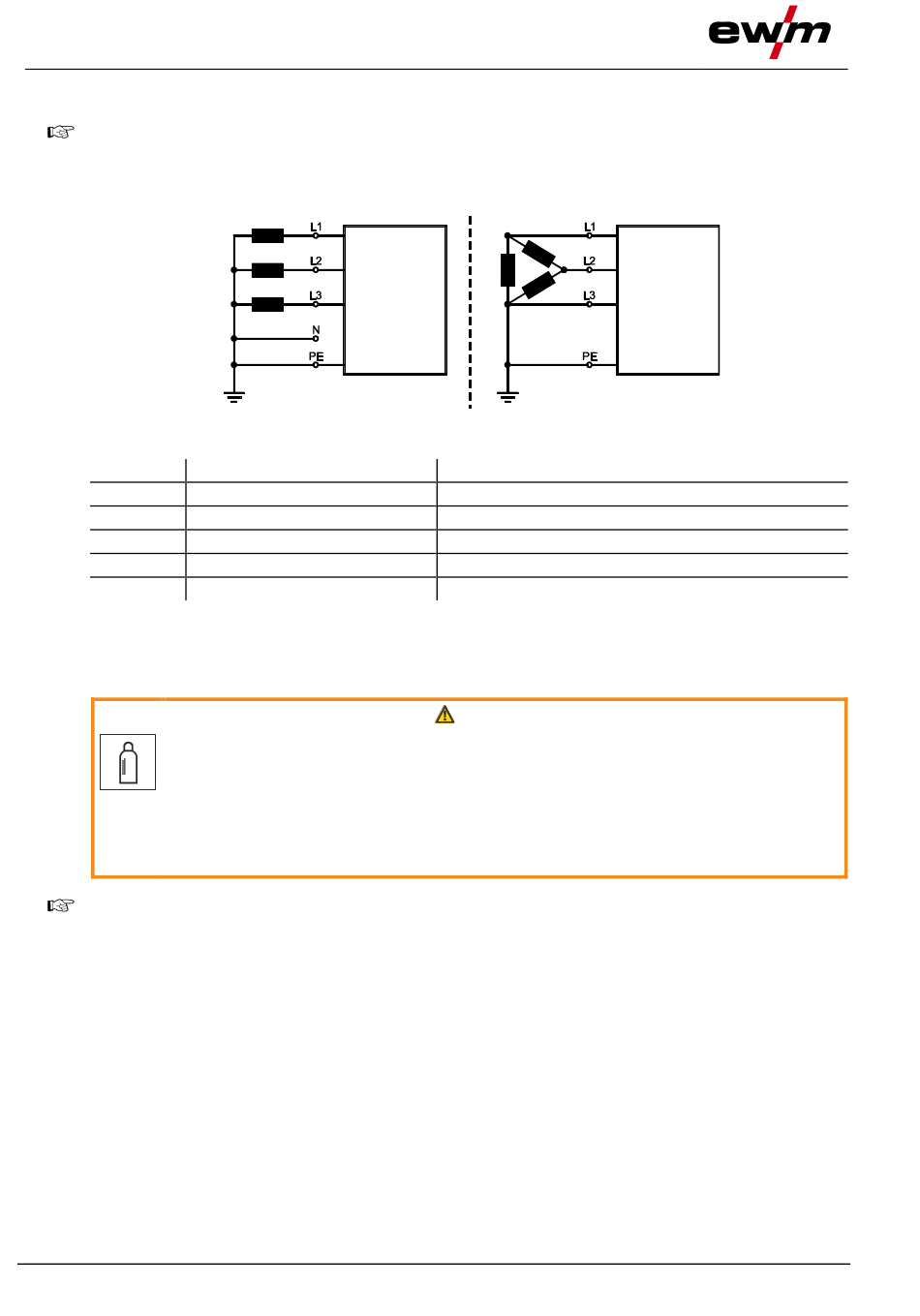

Mains configuration

The machine may be connected to:
•
a three-phase system with four conductors and an earthed neutral conductor
•
a three-phase system with three conductors of which any one can be earthed,
e.g. the outer conductor
Legend
Item Designation
L1 Outer conductor 1
L2 Outer conductor 2
L3 Outer conductor 3
N Neutral conductor
PE Protective conductor
•
Insert mains plug of the switched-off machine into the appropriate socket.
5.2 TIG welding
5.2.1

Shielding gas supply (shielding gas cylinder for welding machine)

Risk of injury due to improper handling of shielding gas cylinders!
Improper handling and insufficient securing of shielding gas cylinders can cause
serious injuries!
•
Observe the instructions from the gas manufacturer and any relevant regulations
concerning the use of compressed air!
•
Do not attach any element to the shielding gas cylinder valve!
•
Prevent the shielding gas cylinder from heating up.
An unhindered shielding gas supply from the shielding gas cylinder to the welding torch is a
fundamental requirement for optimum welding results. In addition, a blocked shielding gas
supply may result in the welding torch being destroyed.
•
Always re-fit the yellow protective cap when not using the shielding gas connection.
•
All shielding gas connections must be gas tight.
26
Figure 5-5
Colour code
brown
black
grey
blue
green-yellow
WARNING
099-000141-EW501
20.11.2017
