Design and function
TIG welding

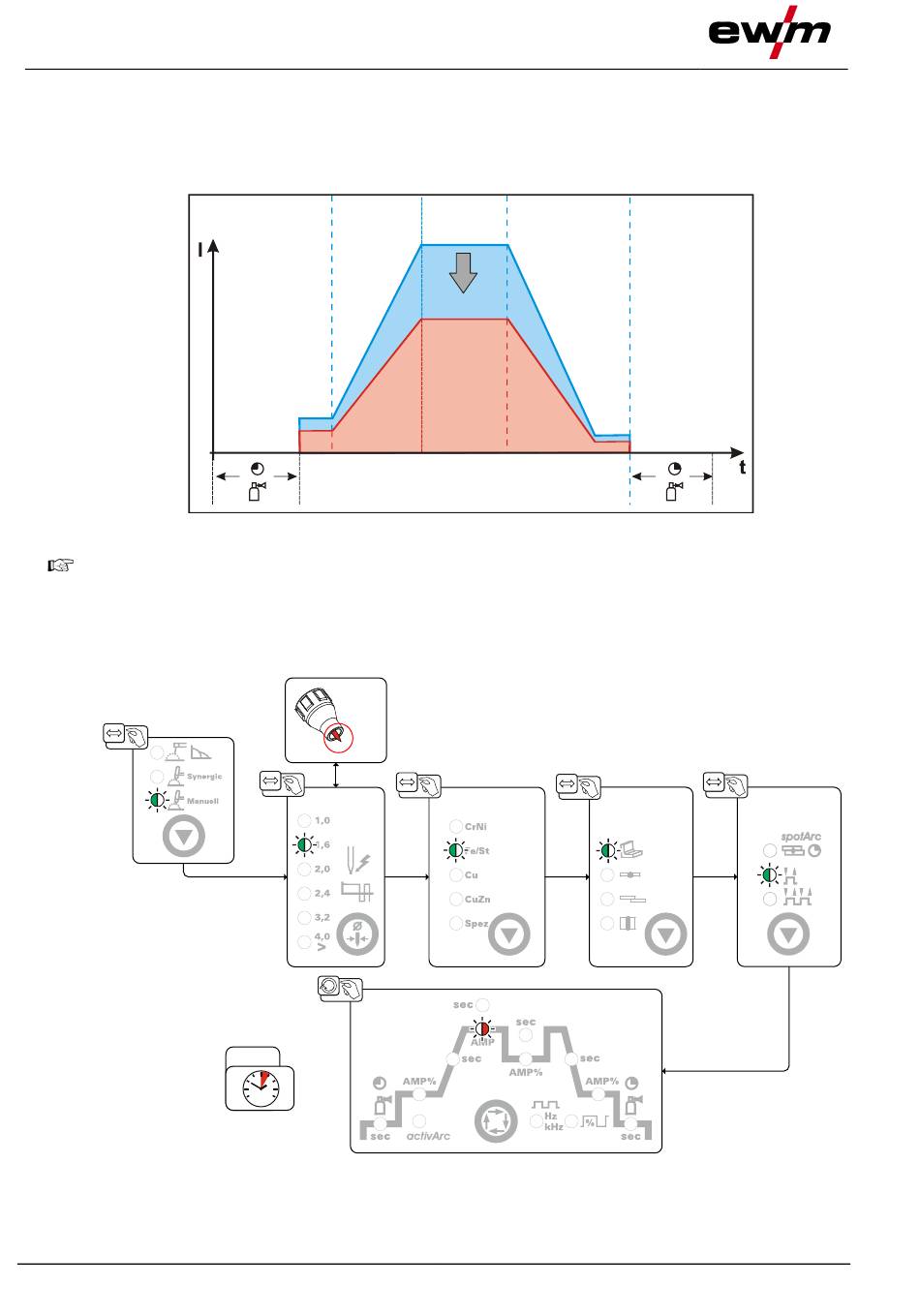

5.2.13 Conventional parameter setting in the functional sequence

All welding parameters in the functional sequence can also be adjusted, regardless of the welding current
set. This means that if the welding current is changed, the values for the down slope time or gas post-flow
time remain unchanged, for example. The welding task still needs to be selected as before using the
three basic parameters of tungsten electrode diameter, material type and seam type.
The parameters for the ignition, secondary and end currents can be set and displayed as
percentage values or absolute values > see 5.9 chapter.

5.2.14 Welding task selection

The following welding task selection is an example of use. In general, the selection process always has
the same sequence. Signal lights (LED) will show the selected combination.
36
mm
inch
EXIT
4s
Figure 5-15
Figure 5-16
