Machine description – quick overview
Machine control (Mode RC - on)
Item Symbol
3
4
5 Hold
6
7
8
4.3.1

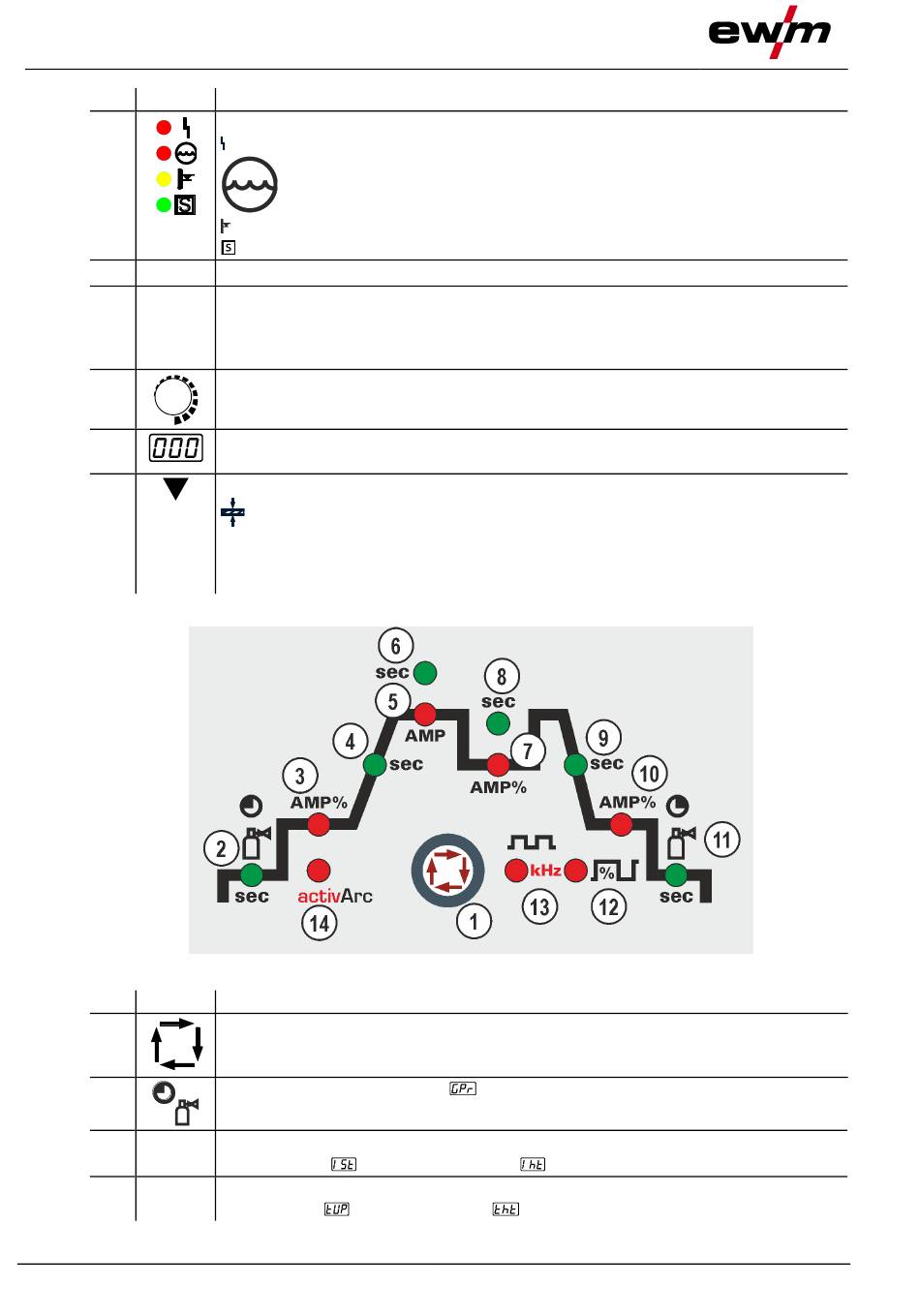

Function sequence

Item Symbol
1
2
3 AMP%
4 sec
18
Description 0
Error/status indicators
------ Collective interference signal light
- Water deficiency signal light (welding torch cooling)
--------- Excess temperature signal light
-------- S safety sign signal light
Functional sequence > see 4.3.1 chapter
Signal light Status display
After each completed welding task, the last values used in the welding process for the
welding current and welding voltage are shown on the displays, and the signal light will
be on
Welding parameter setting rotary dial
Setting currents, times and parameters.
Welding data display (3-digit)
Displays the welding parameters and the corresponding values > see 5.2.8 chapter
Display switching button
------- Material thickness display
VOLT --- Welding voltage display
JOB ----- JOB number display
PROG -- Program number display
Description 0
Select welding parameters button
This button is used to select the welding parameters depending on the welding process
and operating mode used.
Gas pre-flow time signal light
Signal light
Ignition current (TIG)/hot start current
Signal light
Up-slope time (TIG)/hot start time
Figure 4-4
(MMA)
(MMA)
