Machine description – quick overview
4
4.1

Front view

Item Symbol
1
2
3
4
5
6
7
099-000141-EW501
20.11.2017
Machine description – quick overview
Description 0
Lifting lug
Machine control > see 4.3 chapter
PC interface, serial (D-Sub connection socket, 9-pole)
Key switch to protect against unauthorised use (retrofitting option)
Position 1: changes possible.
Position 0: no changes possible.
> see 5.8 chapter.
Main switch, machine on/off
Cooling air inlet
Machine feet

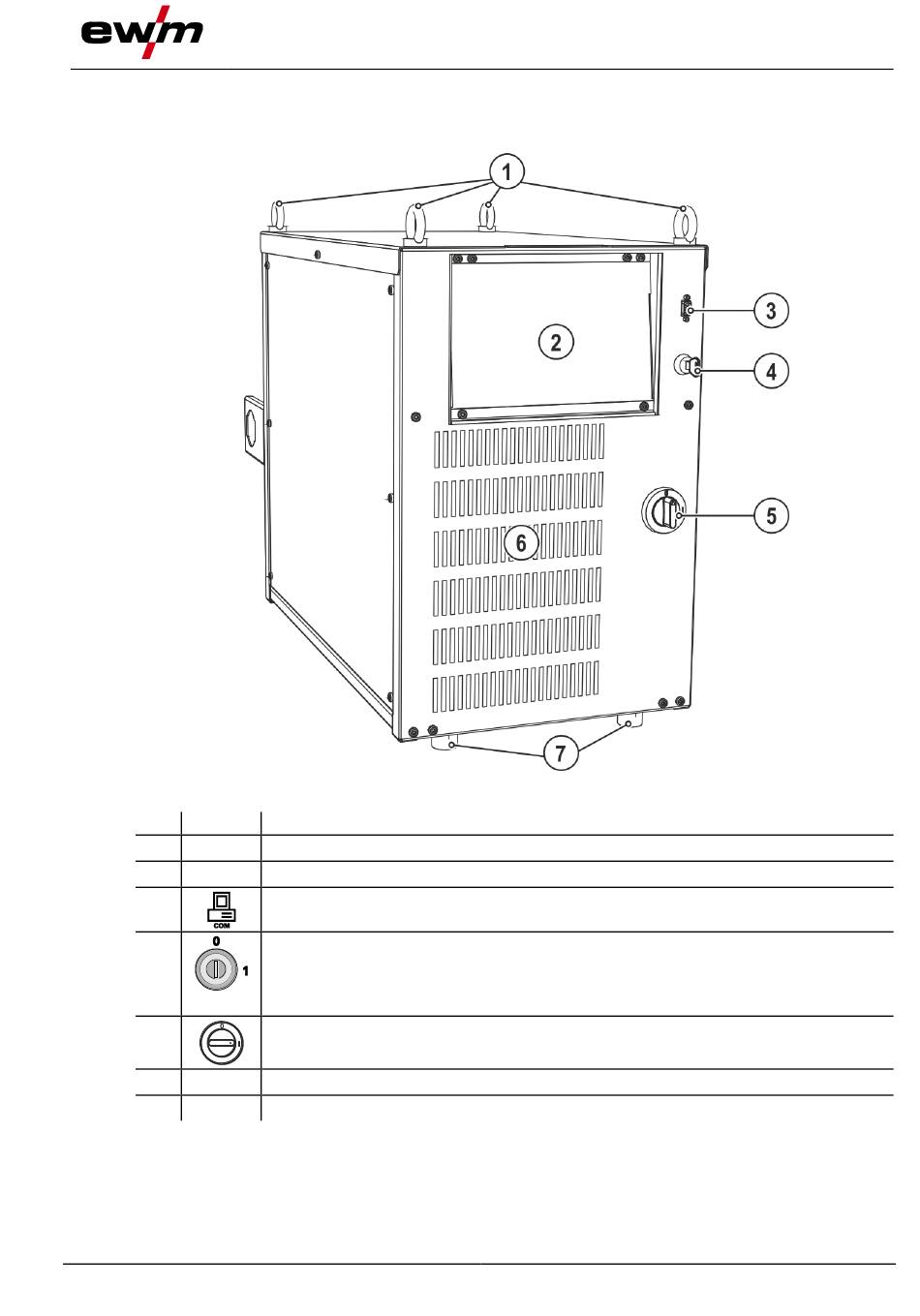

Figure 4-1
Front view
