Design and function
TIG welding
When the settings are changed (e.g. welding current) after welding when the hold values are displayed,
the display will be switched to the relevant nominal values.
If the "Program number" signal light is on in addition to the "Material thickness" signal light, the user is in
program mode (programs 1-15, , > see 5.4 chapter).
If the "JOB-number" signal light is on in addition to the "Material thickness" light, the user is in a JOB in
the free memory (JOB 128 to 256, > see 5.3.2 chapter).
5.2.9

Welding parameter setting

During the welding parameter setting process, the parameter value being set is displayed on the left-hand
display. The right-hand display shows the "Factory setting" or a variation of it upwards or downwards.

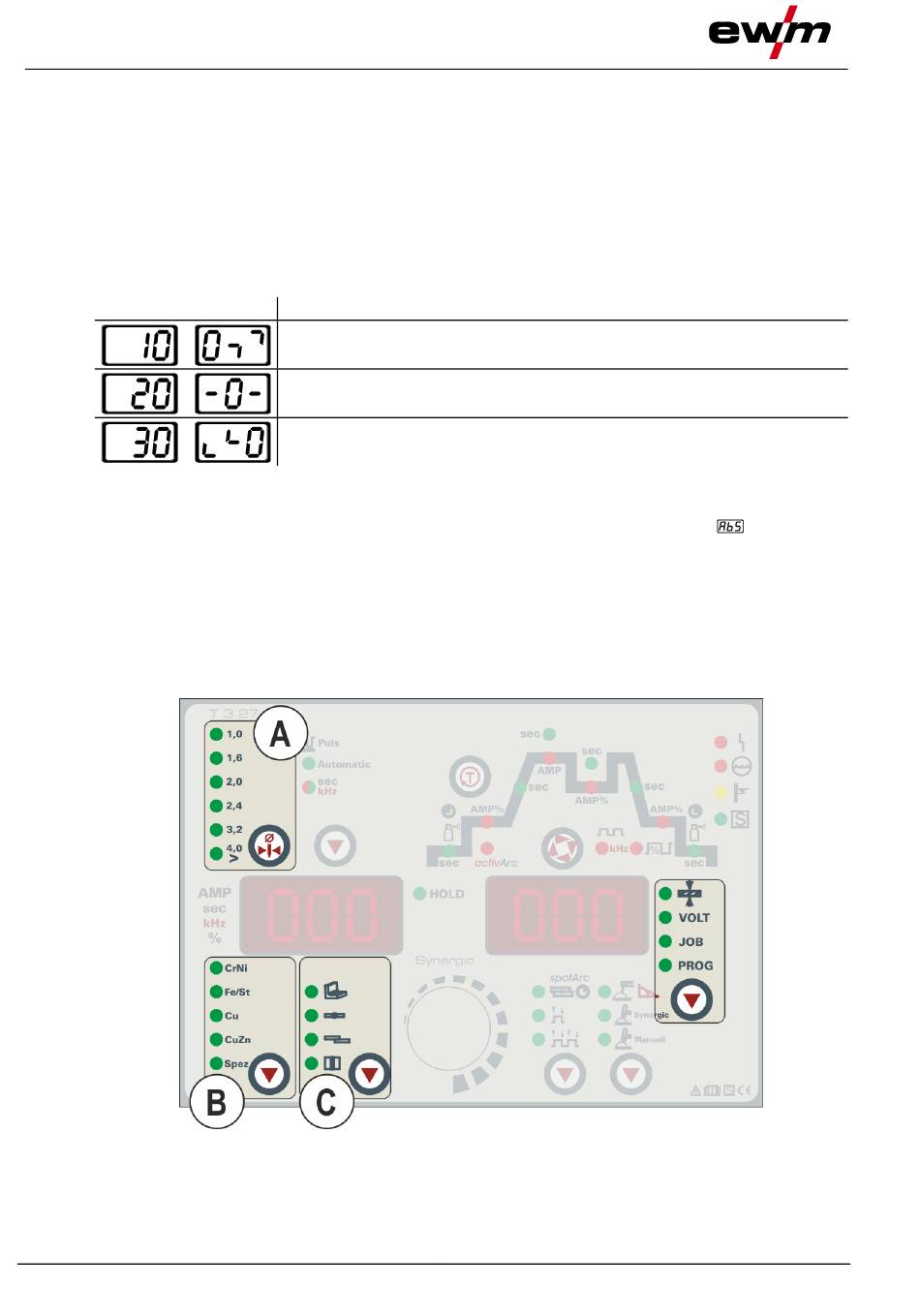

Displays, e.g. when setting the ignition current, and their meanings:
Display

5.2.10 Setting the welding current (absolute/percentage)

The welding current for the ignition, secondary, end and hot start current can be set as a percentage of
the main current AMP or as an absolute value. To select the display use the parameter
configuration menu <dg _ref_source_inline>Gerätekonfigurationsmenü</dg_ref_source_inline>.
> see 5.9 chapter

5.2.11 TIG welding task definition

The user defines the welding tasks using JOB numbers.
Each JOB number stores all the parameters relating to the welding task.
The user can either load an existing JOB, load an existing JOB and change it, or define a completely new
JOB via the various interfaces.
34
Meaning of the symbols shown in the right-hand display
Increase parameter value
Factory setting Parameter value is on the optimum setting
Reduce parameter value
Figure 5-13
To restore the factory settings.
To restore the factory settings.
in the
