The welding task or JOB is defined using the following parameters:
Basic parameters
The JOB number is defined by three basic welding parameters:
A: electrode diameter
B: material type
C: seam type
Program sequence
Other welding parameters, such as parameters for the start program, secondary program or end program
and the gas pre-flow time, slope times and many more are preset for a variety of applications, but can be
modified where required. On the various interfaces, the most important welding parameters are displayed
directly and can be modified where required.
Operating point
You can set the operating point, for example by means of a robot interface (RINT X12/BUSINT X11),
using up to 15 (PROG 1 to PROG 5) freely definable programs.
•
Welding current, operating mode and pulse function are saved for each program. You can define
these process parameters using the PC 300 welding parameter software. The program number is
selected by the robot control.
The digital system calculates the required process parameters, such as welding current, welding voltage
or pulse current, depending on the set operating point.
Operating mode
Non-latched or special non-latched (start, main and end program).
These parameters are predefined by the robot control via robot interface RINT X12 or BUSINT X11 (see
the relevant interface documentation).
Welding type
Pulse or standard welding.
This parameter setting is specified by the robot control via the RINT X12 or BUSINT X11 robot interface
(see documentation in the relevant interface description).

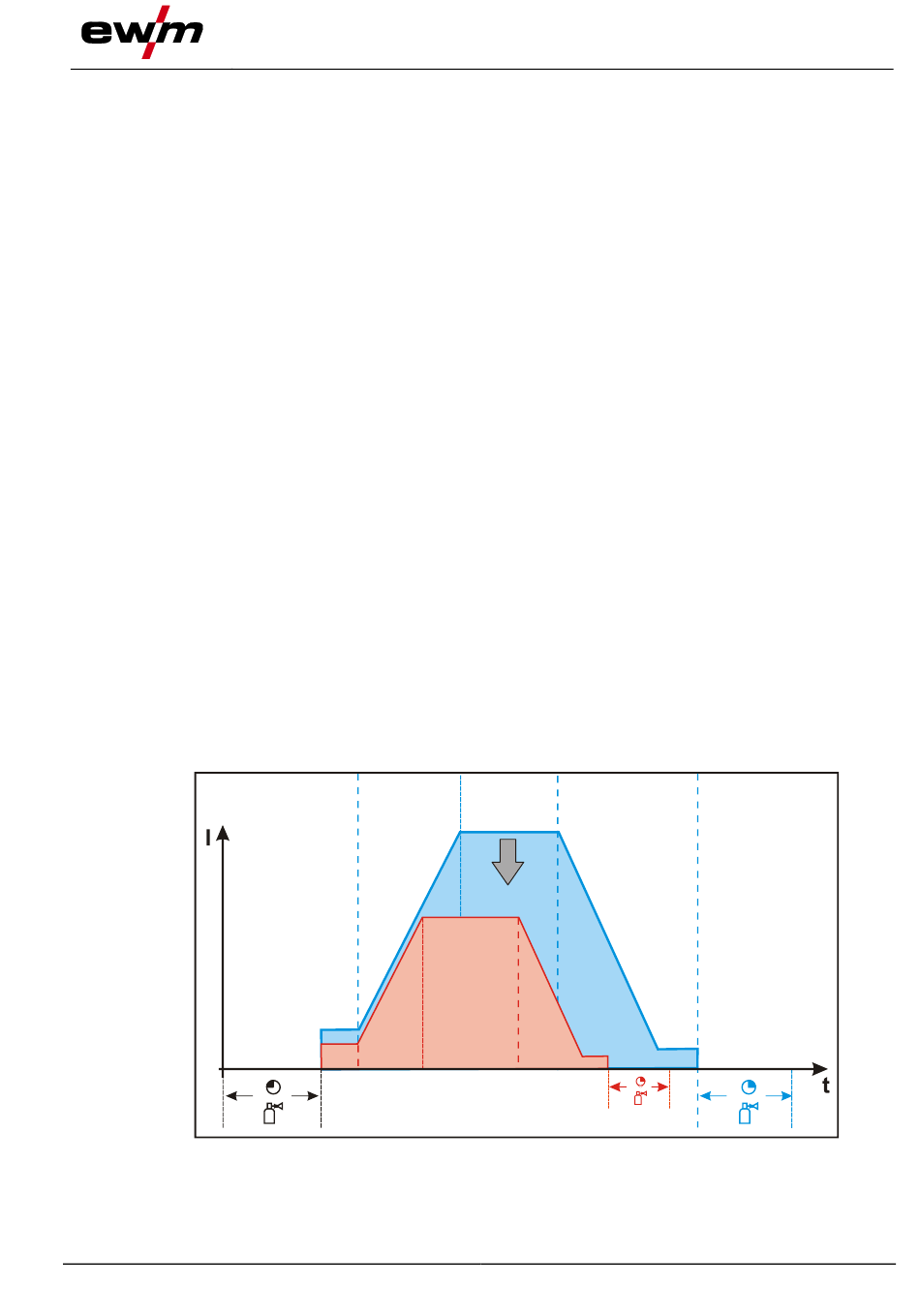

5.2.12 Synergic parameter setting in the functional sequence

When setting the welding current, all the necessary welding parameters are adjusted automatically during
the functional sequence > see 4.4.1 chapter with the exception of the gas pre-flow time. These welding
parameters can also be set in the conventional way if required (regardless of the welding
current) > see 5.2.13 chapter.
099-000141-EW501
20.11.2017
Design and function
Figure 5-14
TIG welding
