Design and function
TIG welding
5.2.6

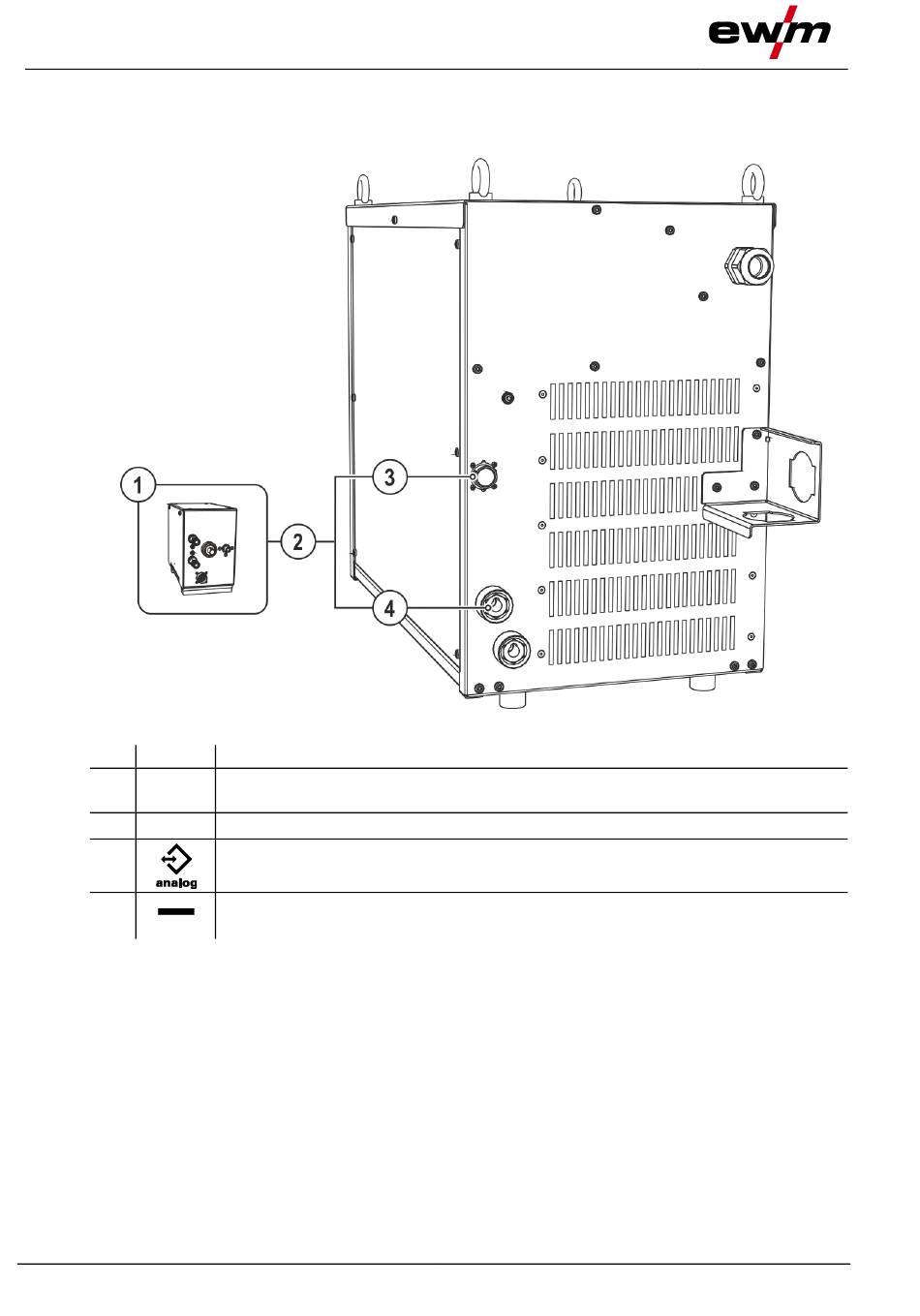

Connecting the TIG TORCH BOX to the power source

When using a TIG TORCH BOX the gas supply must be connected directly to the TIG TORCH BOX.
Gas monitoring can be configured using the Tool EWMConfig.Net.
Item Symbol
1
2
3
4
•
Plug the welding current lead plug into the welding current "-" connecting nipple and lock.
•
Insert the control cable plug into the 19-pole connection socket (analog) and secure with a crown nut.
(The plug can only be inserted in one position.)
32
Description 0
TIG TORCH BOX
Observe additional system documents!
Connecting hose package
19-pole connection socket (analogue)
Connection socket for analogue control signals (collision protection, etc.)
Connector plug (TIG)
Welding current, minus potential
Figure 5-11
