5.2.5

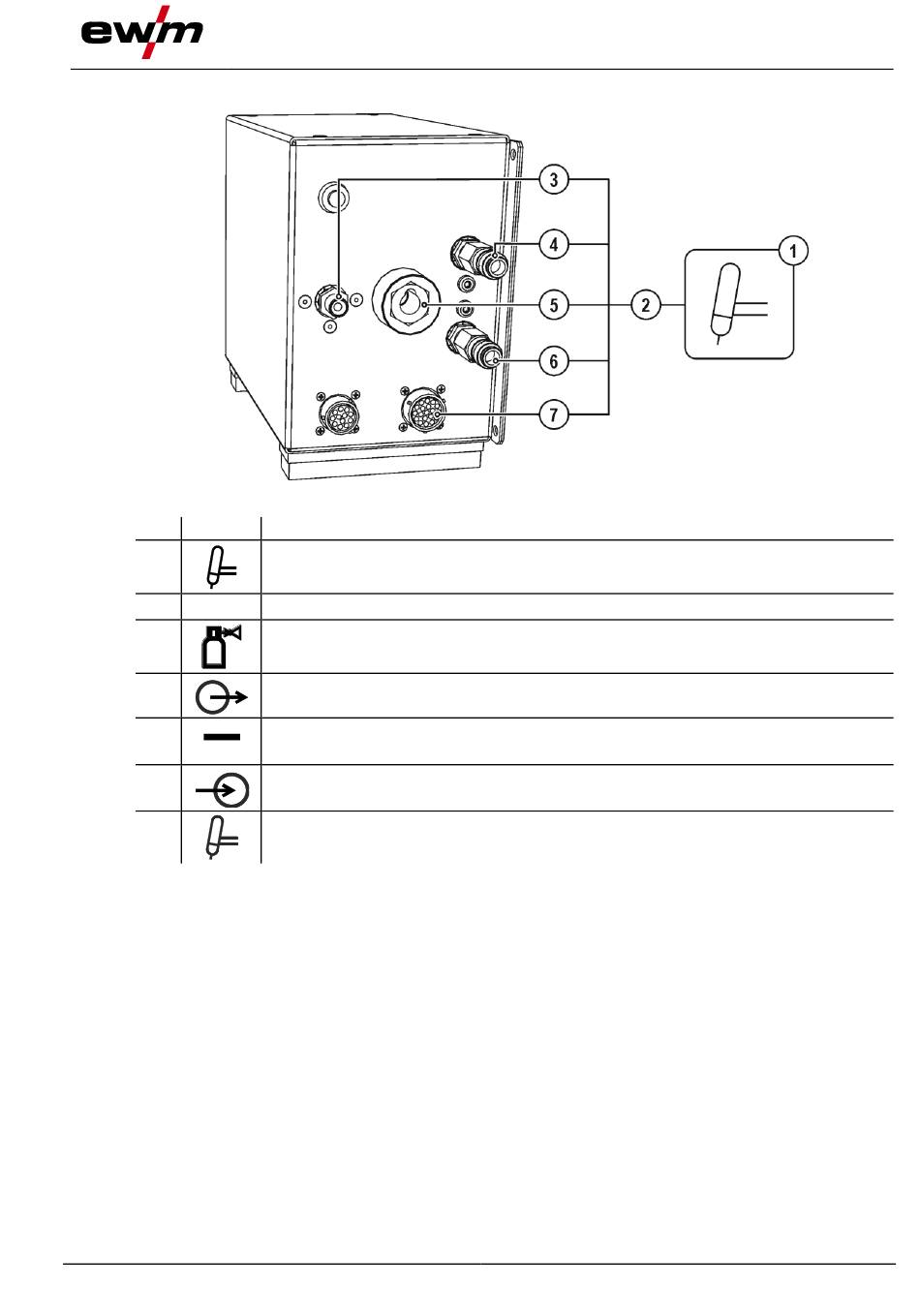

Connecting the welding torch to the TIG TORCH BOX

Item Symbol
1
2
3
4
5
6
7
•
Insert the plug on the welding current lead into the "-" welding current connection socket and lock.
•
Lock the connecting nipples on the cooling water hoses into place in the appropriate quick connect
couplings: Connect the red return line to the red quick connect coupling (coolant return) and the blue
supply line to the blue quick connect coupling (coolant supply).
•
Insert cable plug on the control lead into the 19-pole connection socket (digital) and secure with crown
nut (the plug can only be inserted into the connection socket in one position).
•
Connect the crown nut on the shielding gas lead to the G¼" connecting nipple, shielding gas
connection.
099-000141-EW501
20.11.2017
Description 0
Automated welding torch
Welding torch hose package
Connecting nipple G¼, shielding gas connection
Quick connect coupling (red)
coolant return
"-" Welding current connection socket
TIG welding torch welding current lead connection
Quick connect coupling (blue)
coolant supply
19-pole connection socket (analogue)
Mechanised welding torch connection
Design and function
Figure 5-10
TIG welding
31
