Design and function

Welding programs

5.4 Welding programs
Changes made to the other welding parameters during the course of the program have the
equivalent effect on all programs.
The change to the welding parameters is saved immediately in the JOB.
The welding machine has 16 programs, which you can change during welding.
In each selected welding task (JOB), > see 5.2.3 chapter, 16 programs can be set, saved and called up.
In program "0" (default setting) the welding current can be infinitely adjusted across the entire range. In
programs 1-15, 15 different welding currents (incl. operating mode and pulse function) are defined.
Example:
Program number
1
2
The operating mode cannot be changed during the welding process. If welding is started with program 1
(non-latched operating mode), program 2 controls the setting of ignition program 1 despite the latched
setting and is implemented to the end of the welding process.
The pulse function (pulses off, pulses on) and the welding currents are transferred from the correspond-
ing programs.
5.4.1

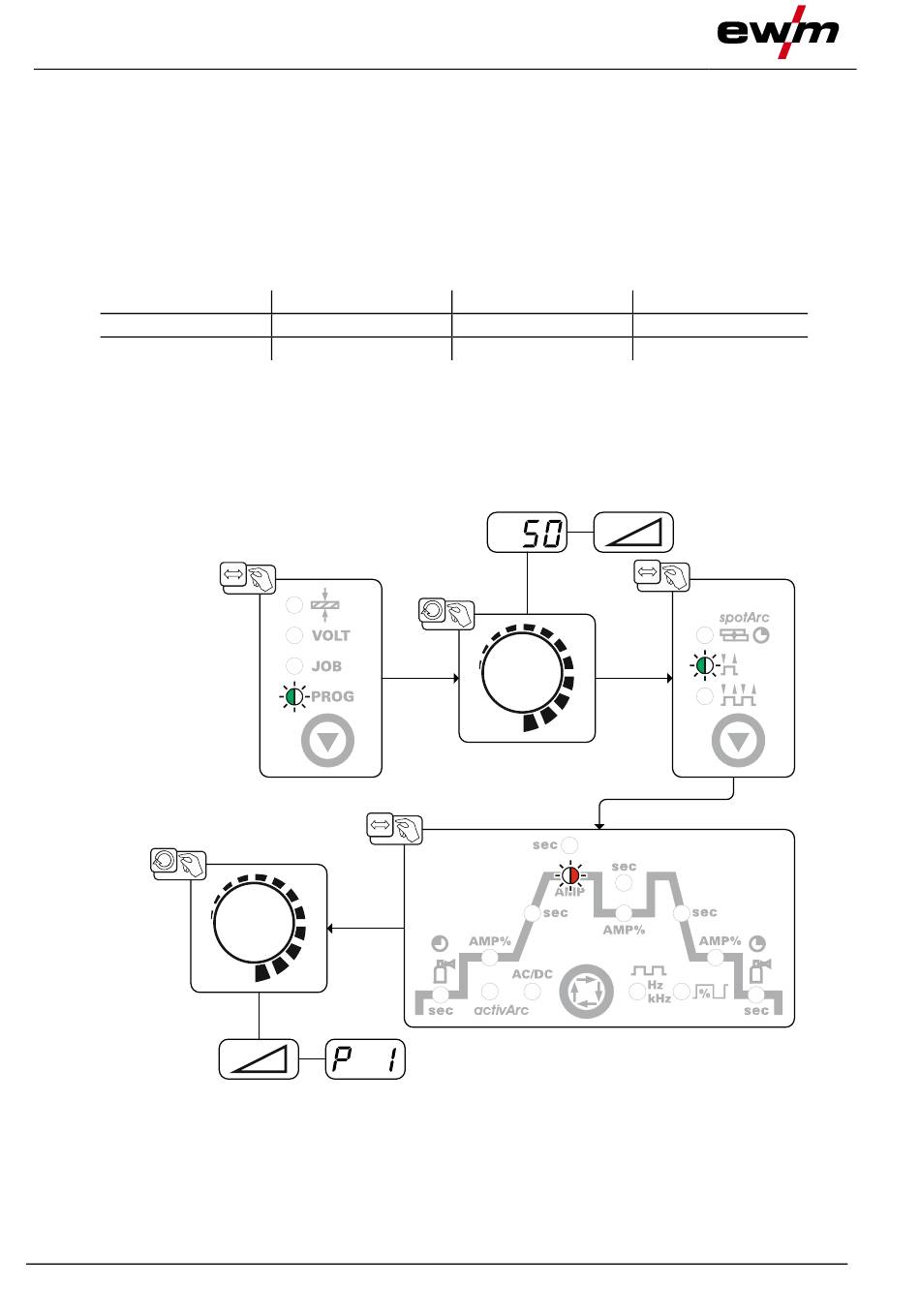

Selection and adjustment

When connecting a potentiometer torch or up/down torch or operating a standard torch in
up/down mode, the program changeover to the welding machine control is blocked!
56
Welding current
80A
70A
Figure 5-44
Operating mode
Non-latched
latched
Pulse function
Pulses on
Pulses off
