Design and function

TIG welding task definition

5.2.2

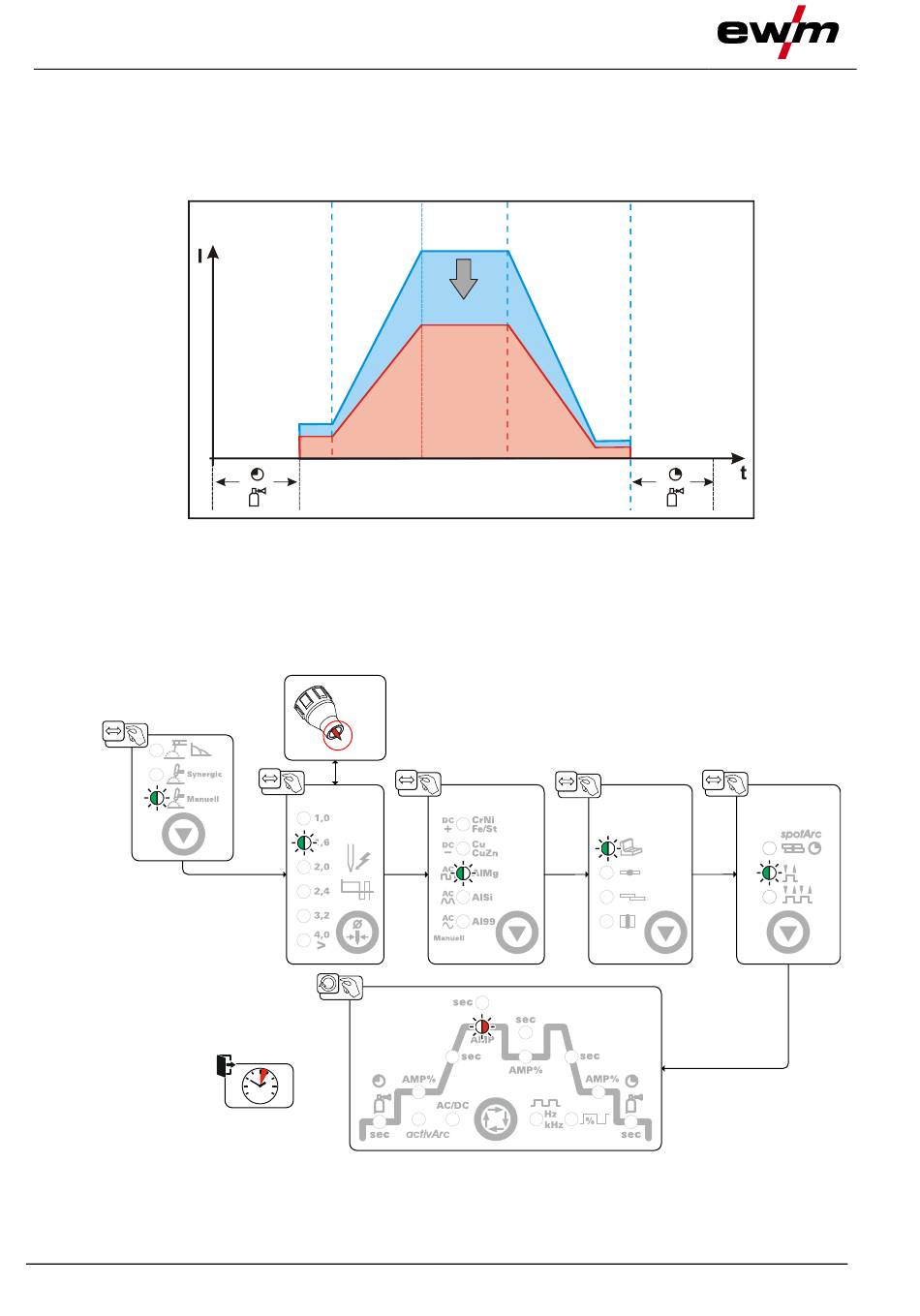

Conventional parameter setting in the functional sequence

All welding parameters in the functional sequence can also be adjusted, regardless of the welding current

set. This means that if the welding current is changed, the values for the down slope time or gas post-flow

time remain unchanged, for example. The welding task still needs to be selected as before using the

three basic parameters of tungsten electrode diameter, material type and seam type.

The parameters for the ignition, secondary and end currents can be set and displayed as

percentage values or absolute values > see 5.9 chapter.

5.2.3

The following welding task selection is an example of use. In general, the selection process always has

the same sequence. Signal lights (LED) will show the selected combination.

inch

4 s

Figure 5-17

Figure 5-18

099-000140-EW501

30.01.2024
