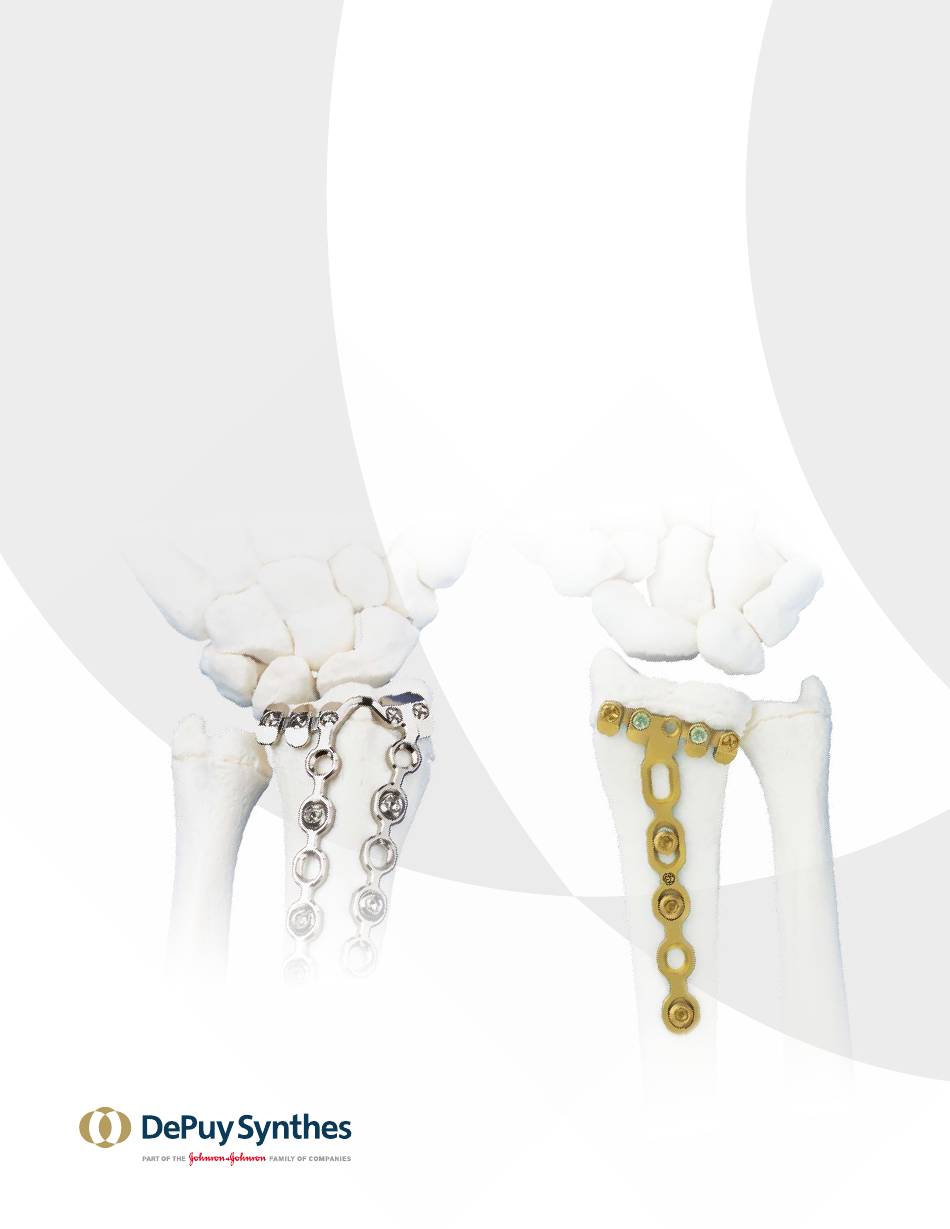

- Page 1 Distal Radius Plate Instrument and Implant Set Surgical Technique...
- Page 2 Threaded holes in the distal arms accept 1.8 mm buttress pins or 2.4 mm self-tapping cortex screws. DePuy Synthes Distal Radius Plate Instrument and Implant Set Surgical Technique...
- Page 3 18° angulation of distal plate arm provides • anatomic fit for radial inclination 10° angulation of threaded holes allows • more distal placement of the plate 10° Distal Radius Plate Instrument and Implant Set Surgical Technique DePuy Synthes...
- Page 4 MR environment. The safety of the Distal Radius Plate Instrument and Implant Set System in the MR environment is unknown. Scanning a patient who has this device may result in patient injury. DePuy Synthes Distal Radius Plate Instrument and Implant Set Surgical Technique...
- Page 5 7 to 12 cm. Open the extensor retinaculum using a longitudinal incision between the first and second extensor compartments as shown below. Extensor retinaculum Compartment 2 Incision Compartment 1 Distal Radius Plate Instrument and Implant Set Surgical Technique DePuy Synthes...
- Page 6 Note: If the fracture morphology dictates, use of the additionally available mini lengthening apparatus [394.08] will provide gentle indirect reduction of complex fractures and minimize soft tissue dissection. Mini Lengthening Apparatus 394.08 DePuy Synthes Distal Radius Plate Instrument and Implant Set Surgical Technique...
- Page 7 Underside of plate Cutting slot CORRECT: Underside of plate INCORRECT: Top of plate towards towards tip of pliers. Cut between tip of pliers. plate holes where handles interface. Distal Radius Plate Instrument and Implant Set Surgical Technique DePuy Synthes...
- Page 8 Contour proximal plate legs If needed, use the bending pliers to gently contour the proximal legs to better fit the distal shaft of the radius. Universal Bending Pliers 391.963 DePuy Synthes Distal Radius Plate Instrument and Implant Set Surgical Technique...
- Page 9 312.92 Note: The threaded drill guide must be used to ensure the proper drilling angle. Otherwise, the buttress pins may not thread into the plate holes. Distal Radius Plate Instrument and Implant Set Surgical Technique DePuy Synthes...
- Page 10 Using the cruciform screwdriver, push the buttress pin through the hole and turn until the threaded portion of the pin head locks into the plate. Cruciform Screwdriver Shaft with Holding Sleeve 314.67.97 DePuy Synthes Distal Radius Plate Instrument and Implant Set Surgical Technique...
- Page 11 Note: 2.4 mm drill bits are available for use when AO lag screw technique is desired. Distal Radius Plate Instrument and Implant Set Surgical Technique DePuy Synthes...
- Page 12 Insert the appropriate length 2.7 mm self-tapping cortex screw using the small hexagonal screwdriver. Note: 2.7 mm drill bits are available for use when AO lag screw technique is desired. DePuy Synthes Distal Radius Plate Instrument and Implant Set Surgical Technique...
- Page 13 Compartment 4 Extensor retinaculum Compartment 5 Compartment 3 Compartment 6 Extensor pollicis longus Compartment 2 Ulna Extensor carpi radialis brevis Extensor carpi radialis longus Compartment 1 Radius Cross-sectional view Distal Radius Plate Instrument and Implant Set Surgical Technique DePuy Synthes...
- Page 14 When direct visualization is required, it is accomplished by a dorsal arthrotomy or arthroscopy. DePuy Synthes Distal Radius Plate Instrument and Implant Set Surgical Technique...
- Page 15 Volar Plate Technique Follow dorsal surgical technique outlined in steps 1– 7. Use appropriate method for surgical closure of the incision. Distal Radius Plate Instrument and Implant Set Surgical Technique DePuy Synthes...
- Page 16 391.963 Universal Bending Pliers, 2 ea. Note: For additional information, please refer to package insert. For detailed cleaning and sterilization instructions, please refer to www.synthes.com/cleaning-sterilization sterilization instructions, if provided. DePuy Synthes Distal Radius Plate Instrument and Implant Set Surgical Technique...
- Page 17 Limited Warranty and Disclaimer: DePuy Synthes products are sold with a limited warranty to the original purchaser against defects in workmanship and materials. Any other express or implied warranties, including warranties of merchantability or fitness, are hereby disclaimed. Please also refer to the package insert(s) or other labeling associated with the devices identified in this surgical technique for additional information.
