How to operate the frequenc...
0-20 Display Line 1.1 Small, 0-21 Display Line 1.2 Small,
0-22 Display Line 1.3 Small, 0-23 Display Line 2 Large, and
0-24 Display Line 3 Large, which can be accessed via [QUICK
MENU], "Q3 Function Setups", "Q3-1 General Settings",
"Q3-11 Display Settings".
Each value/measurement readout parameter selected in
0-20 Display Line 1.1 Small to 0-24 Display Line 3 Large has
its own scale and number of digits after a possible decimal
point. Larger numeric values are displayed with few digits
after the decimal point.
Ex.: Current readout
5.25 A; 15.2 A 105 A.
Status display I
This read-out state is standard after start-up or initiali-
zation.
Use [INFO] to obtain information about the value/
measurement linked to the displayed operating variables
(1.1, 1.2, 1.3, 2, and 3).
See the operating variables shown in the display in this
illustration. 1.1, 1.2 and 1.3 are shown in small size. 2 and
3 are shown in medium size.
Status
799 RPM
1.1
1.2
Auto Remote Ramping
2
3

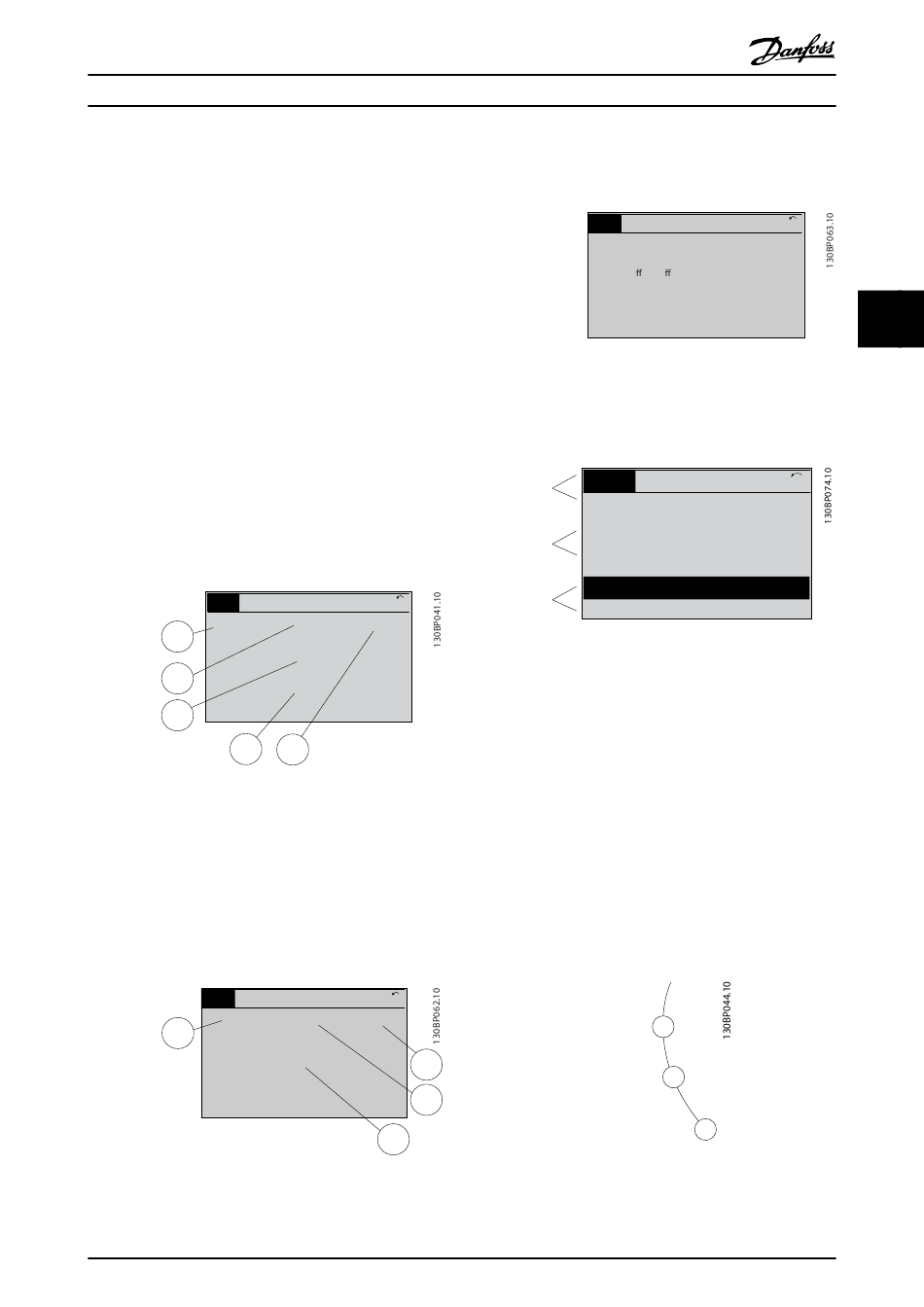

Illustration 4.2 Status Display I - Example
Status display II
See the operating variables (1.1, 1.2, 1.3, and 2) shown in
the display in Illustration 4.3.
In the example, Speed, Motor current, Motor power and
Frequency are selected as variables in the first and second
lines.
1.1, 1.2 and 1.3 are shown in small size. 2 is shown in large
size.
Status
207RPM
1.1
Auto Remote Running
Illustration 4.3 Status Display II - Example
VLT AQUA Drive FC 202 Operation Instructions
1 (1)
7.83 A 36.4 kw
0.000
53.2 %
1.3
1 (1)
5.25A 24.4 kW
6.9
Hz
1.3
1.2
2
MG20P402 - Rev. 2013-12-16
Status display III:
This state displays the event and action of the Smart Logic
Control.
Status
778 RPM
State: 0 o 0 (o )
When: -
Do: -
Auto Remote Running
Illustration 4.4 Status Display III - Example
Bottom section
always shows the state of the frequency converter in
Status mode.
Status
Top section
43 RPM
Middle section
! Pwr.card temp (W29)
Bottom section
Auto Remote Running
Illustration 4.5 Display Sections
Display contrast adjustment
Press [status] and [▲] for darker display
Press [status] and [▼] for brighter display
Indicator lights (LEDs):
If certain threshold values are exceeded, the alarm and/or
warning LED lights up. A status and alarm text appear on
the control panel.
The On LED is activated when the frequency converter
receives power from mains voltage, a DC bus terminal, or
an external 24 V supply. At the same time, the back light is
on.
•
Green LED/On: Control section is working.
•
Yellow LED/Warn.: Indicates a warning.
•
Flashing Red LED/Alarm: Indicates an alarm.
On
Warn.
Alarm
Illustration 4.6 Indicator Lights
1 (1)
0.86 A 4.0 kW
! 1(1)
5.44 A 25.3kW
1.4 Hz
2.9%
71
