2.

Installation

2.1

Installation site and ambient conditions

The ambient conditions at the installation site must meet the
requirements specified in the technical data.
Chapter 8.1 "Technical Data" The device is not suitable for use
in areas with an explosion hazard (Ex areas).
Cleaning the device front
The device front can be cleaned using warm or hot water
(possibly adding slightly acidic, neutral or slightly alkaline
cleaning agent). It has a limited resistance to organic solvents
(e. g. methylated spirits, white spirit, etc.). Do not use abrasive
or high-pressure cleaning equipment.
2.2

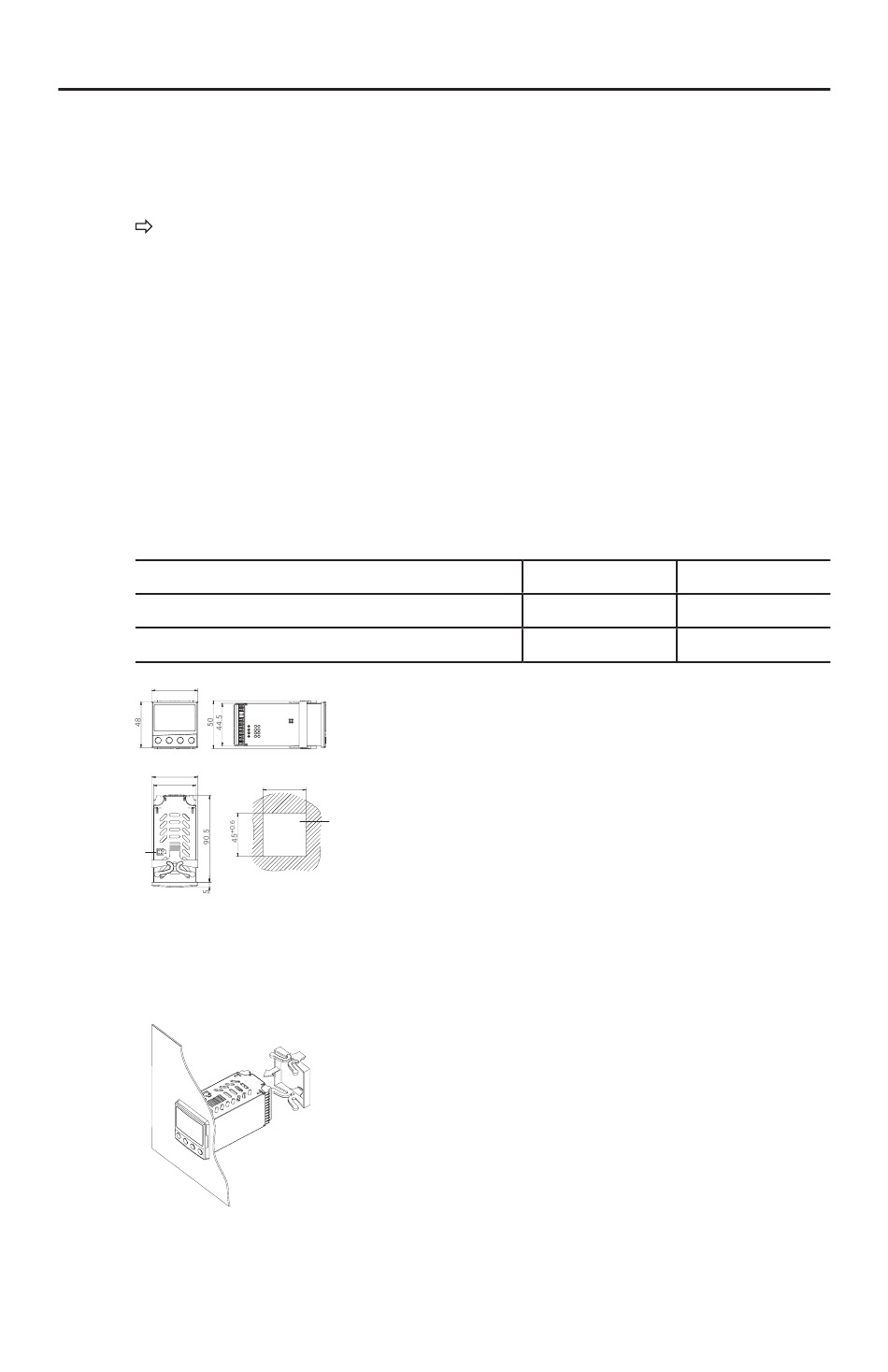

Dimensions

Close mounting
Minimum spacing of panel cut-outs
without setup plug
with setup plug
48
48
44.5
(1)
(1) Connection for PC interface adapter (setup plug)
(2) Panel cut-out
2.3 Installation
1. Insert the device from the front into the panel cut-out.
2. Push the fastening frame from the panel rear onto the device body and
press the springs against the panel rear until the lugs engage in their slots
and it is sufficiently fastened.
+0.6
45
(2)
horizontal vertical
> 8 mm > 8 mm
> 8 mm > 65 mm
nVent.com | 9
