Parameters
Set time t2
t2
(Timer follow-
up time)
Tolerance band
toLt
7.6

Outputs

The configuration of the device outputs is subdivided in binary
outputs (OutL) and analog outputs (OutA). Binary outputs are
relays and logic outputs. The switching states of the binary
outputs 1 to 4 are shown in the display (K1 to K4).
Binary outputs
Output 1 (Out1) = Relay
Output 2 (Out2) = Relay
Output 3 (Out3) = Logic output Output 4 (Out4) = Relay (option)
30 | nVent.com
Value /
Selection Description
-1... This time (in seconds) can be used to
0... transmit a time limited or acknowledgeable
+9999 signal after the timer time has elapsed.
0 = switched off
1...9999 = active for the set time
-1 = active until acknowledged
Acknowledgement:
For t2 = -1 the timer follow-up time is
infinite. Cancel the signal using a function
key or the binary signal.
0...9999 The set timer time only elapses when the
process value has reached the tolerance
band.
0 = Start without tolerance band

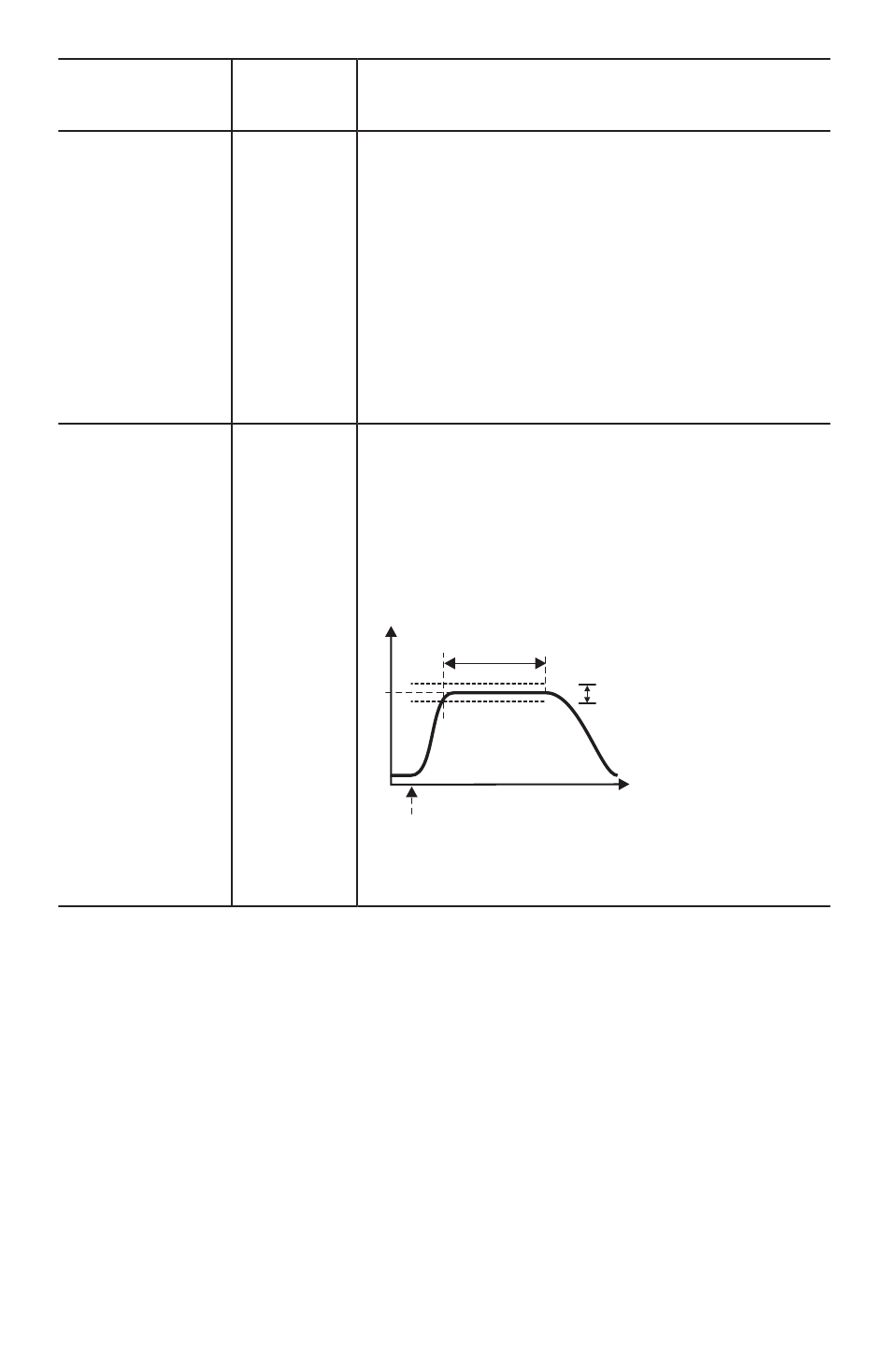

The tolerance band (in Kelvin) is
symmetrical in relation to the SP set point
value.
w/x
SP
(1) = Start via function key, binary input or
when power ON
t1
(1)
toLt
t
