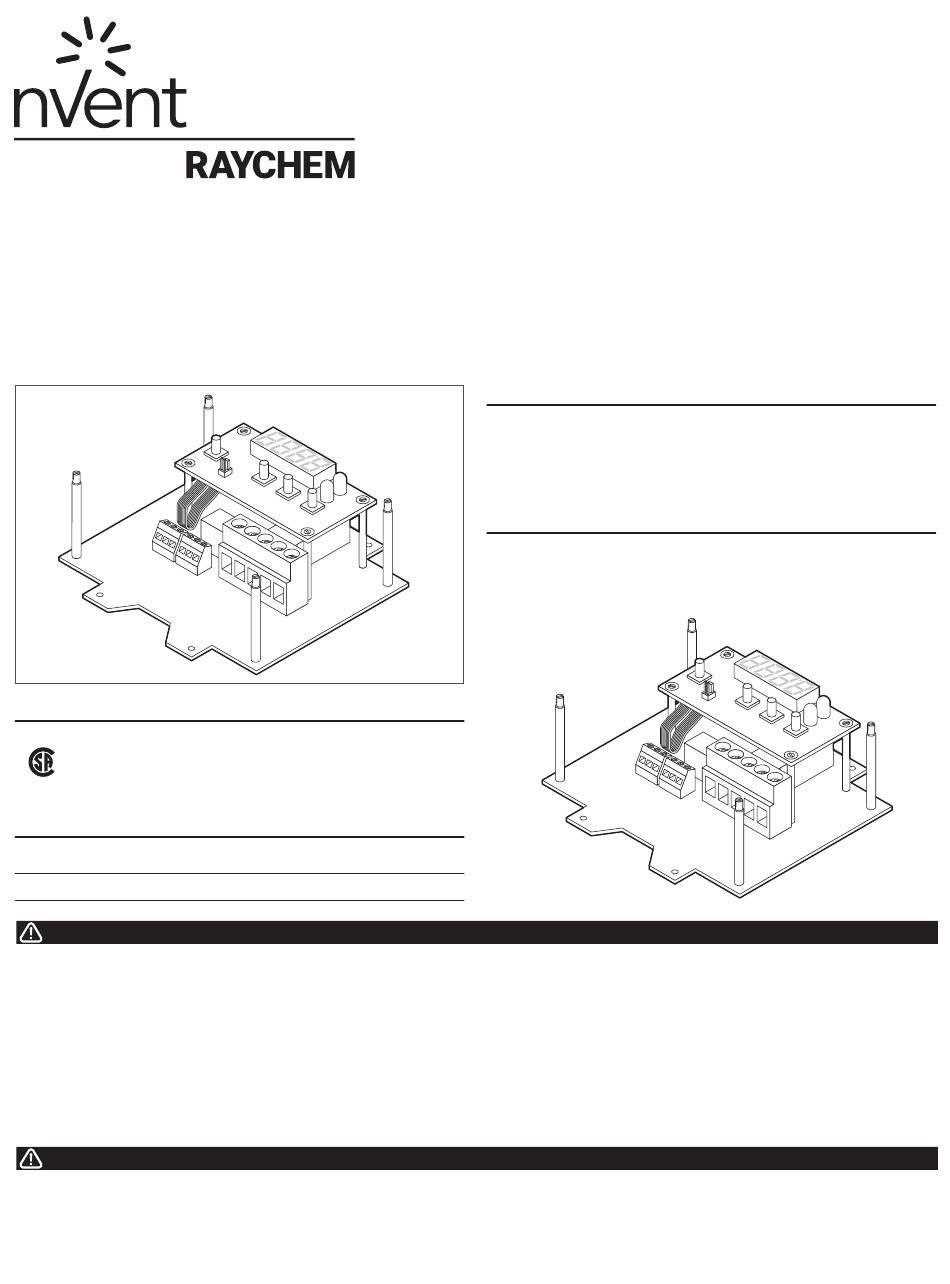

JBS-100-EC
Electronic Controller Replacement kit for JBS-100-ECP-A and
JBS-100-ECW-A Installation Instructions
APPROVALS
Nonhazardous locations
C US
KIT CONTENTS
Item Qty Description

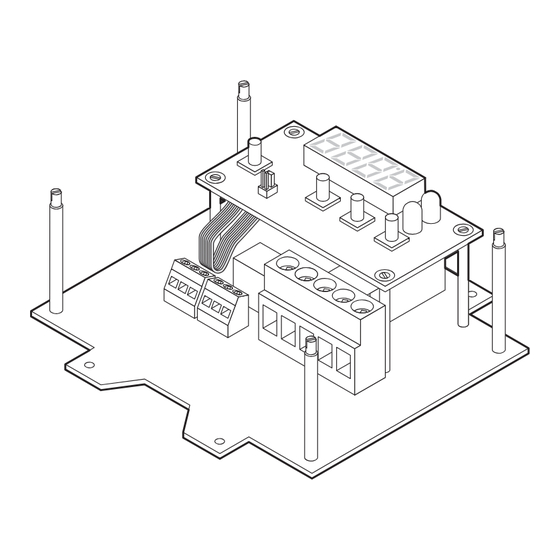

A 1 JBS-100-EC board
WARNING:
This component is an electrical device that must be installed correctly to ensure proper operation and to prevent shock or fire. Read these
important warnings and carefully follow all of the installation instructions.
• To minimize the danger of fire from sustained electrical arcing if the heating cable is damaged or improperly installed, and to comply with
the requirements of nVent, agency certifications, and the National Electrical Code, ground-fault equipment protection must be used. Arcing
may not be stopped by conventional circuit breakers.
• Component approvals and performance are based on the use of nVent-specified parts only. Do not use substitute parts or vinyl electrical tape.
• The black heating cable core and fibers are conductive and can short. They must be properly insulated and kept dry.
• Damaged bus wires can overheat or short. Do not break bus wire strands when scoring the jacket or core.
• Keep components and heating cable ends dry before and during installation.
• Use only fire resistant insulation materials, such as fiberglass wrap or flame-retardant foam.
CAUTION:
HEALTH HAZARD: Prolonged or repeated contact with the sealant in the core sealer may cause skin irritation. Wash hands thoroughly.
Overheating or burning the sealant will produce fumes that may cause polymer fume fever. Avoid contamination of cigarettes or tobacco.
Consult MSDS RAY5510 for further information.
CHEMTREC 24-hour emergency telephone:
(800) 424-9300
DESCRIPTION
The nVent RAYCHEM JBS-100-EC is a replacement kit that can
be used to replace the electronic controller used in the JBS-100-
ECP-A and the JBS-100-ECW-A.
For technical support call nVent at (800) 545-6258.
TOOLS REQUIRED
• Large slotted screwdriver
• Small slotted screwdriver
