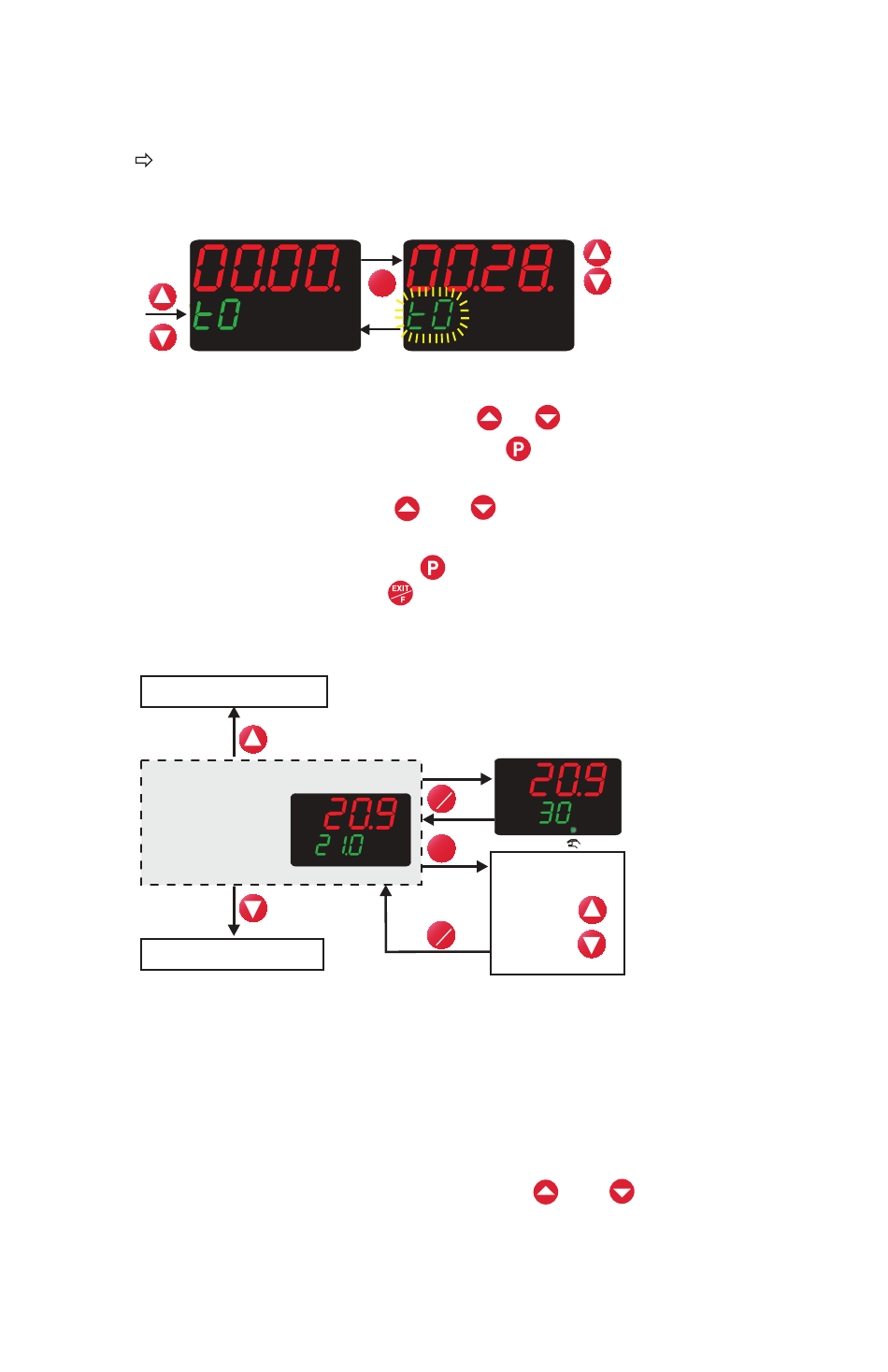

Time entry
A decimal place is mapped in the centre and on the right to
display times. The time unit can be configured.
Chapter 7.5 "Timer"
Select Parameter
(bottom - green)
1. Select parameter by pressing
2. Change to the entry mode using
(lower display blinks)
3. Change a value using
The value alters dynamically for as long as the key is kept pressed.
4. Take over the entry with
cancel the entry with
4.6

Controller

Increase set point value
Normal display:
Regulation to set
point value 21,0
Reduce set point value
Normal display
I n normal display, the controller regulates to the entered set point
value.
Changing the set point value
From the normal display:
1. Change the set point value using
automatically applied)
T he longer the key is kept pressed, the faster the set point
value changes.
Change value
(top - red)
P
Parameter flashes
or
and
or automatic return after 2 s or
the value will not be applied.
Manual mode:
Output value 30%
>2s
EXIT
F
P
P
Further levels:
1
USEr
1
OPr
EXIT
PArA
F
ConF
1
alternatively
and (the value will be
