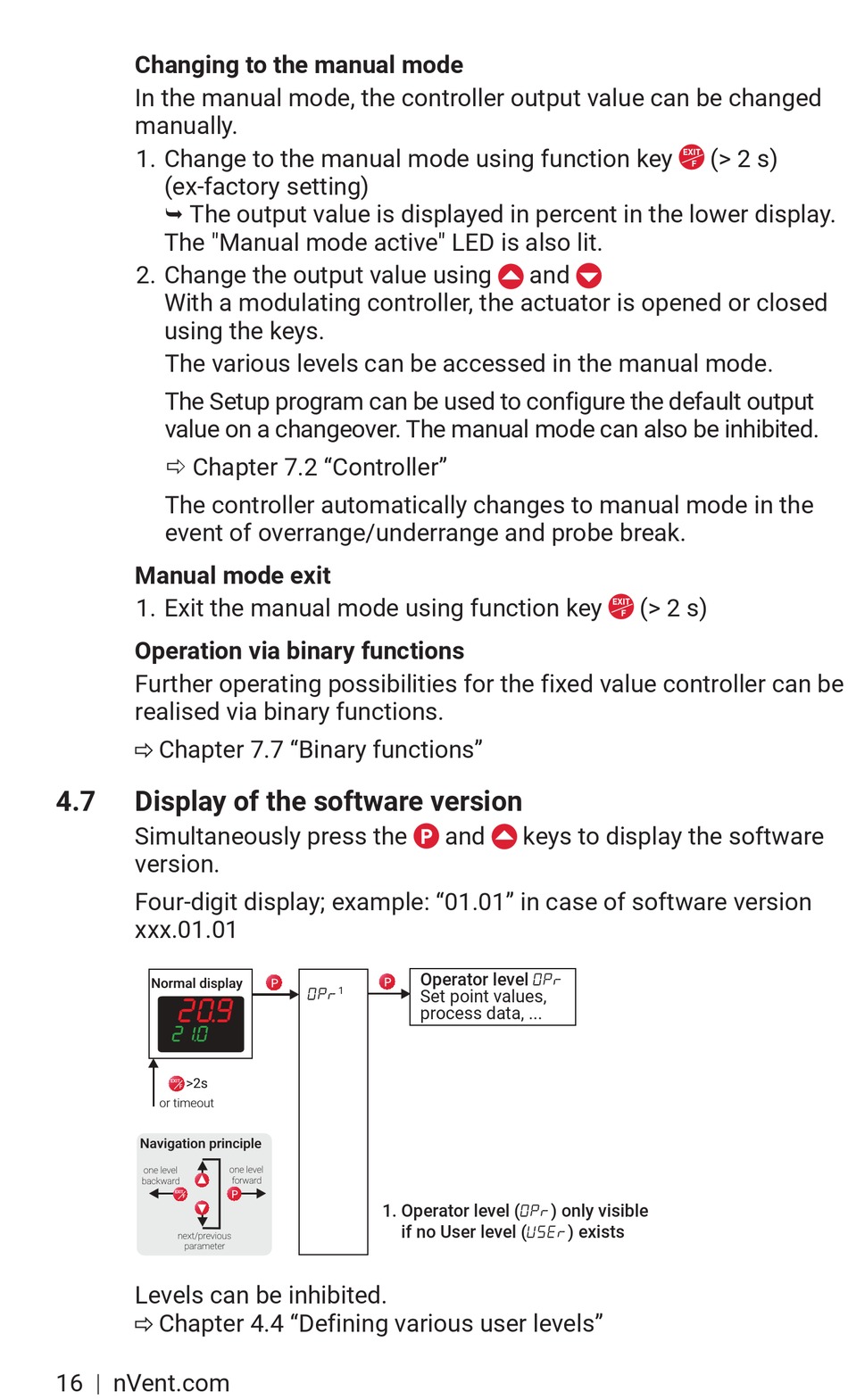

Display Of The Software Version - nvent raychem tcontrol-cont-03 Operating And Installation Manual

Changing to the manual mode
I n the manual mode, the controller output value can be changed
manually.
1. Change to the manual mode using function key
(ex-factory setting)
The output value is displayed in percent in the lower display.

The "Manual mode active" LED is also lit.
2. Change the output value using
With a modulating controller, the actuator is opened or closed
using the keys.
The various levels can be accessed in the manual mode.
T he Setup program can be used to configure the default output
value on a changeover. The manual mode can also be inhibited.
 Chapter 7.2 "Controller"
T he controller automatically changes to manual mode in the
event of overrange/underrange and probe break.
Manual mode exit
1. Exit the manual mode using function key
Operation via binary functions
F urther operating possibilities for the fixed value controller can be
realised via binary functions.
Chapter 7.7 "Binary functions"
4.7

Display of the software version

Simultaneously press the
version.
F our-digit display; example: "01.01" in case of software version
xxx.01.01
Normal display
>2s
EXIT
F
or timeout
Navigation principle
one level
backward
EXIT
F
next/previous
parameter
Levels can be inhibited.
Levels can be inhibited.
Chapter 4.4 „Defining various user levels"
Chapter 4.4 "Defining various user levels"
16 | nVent.com
1
OPr
one level
forward
1. Operator level (OPr) only visible
and
and keys to display the software
Operator level OPr
Set point values,
process data, ...
if no User level (USEr) exists
(> 2 s)
(> 2 s)
