Chapter 1. Introduction
1.5.2
Ethernet Network Ports

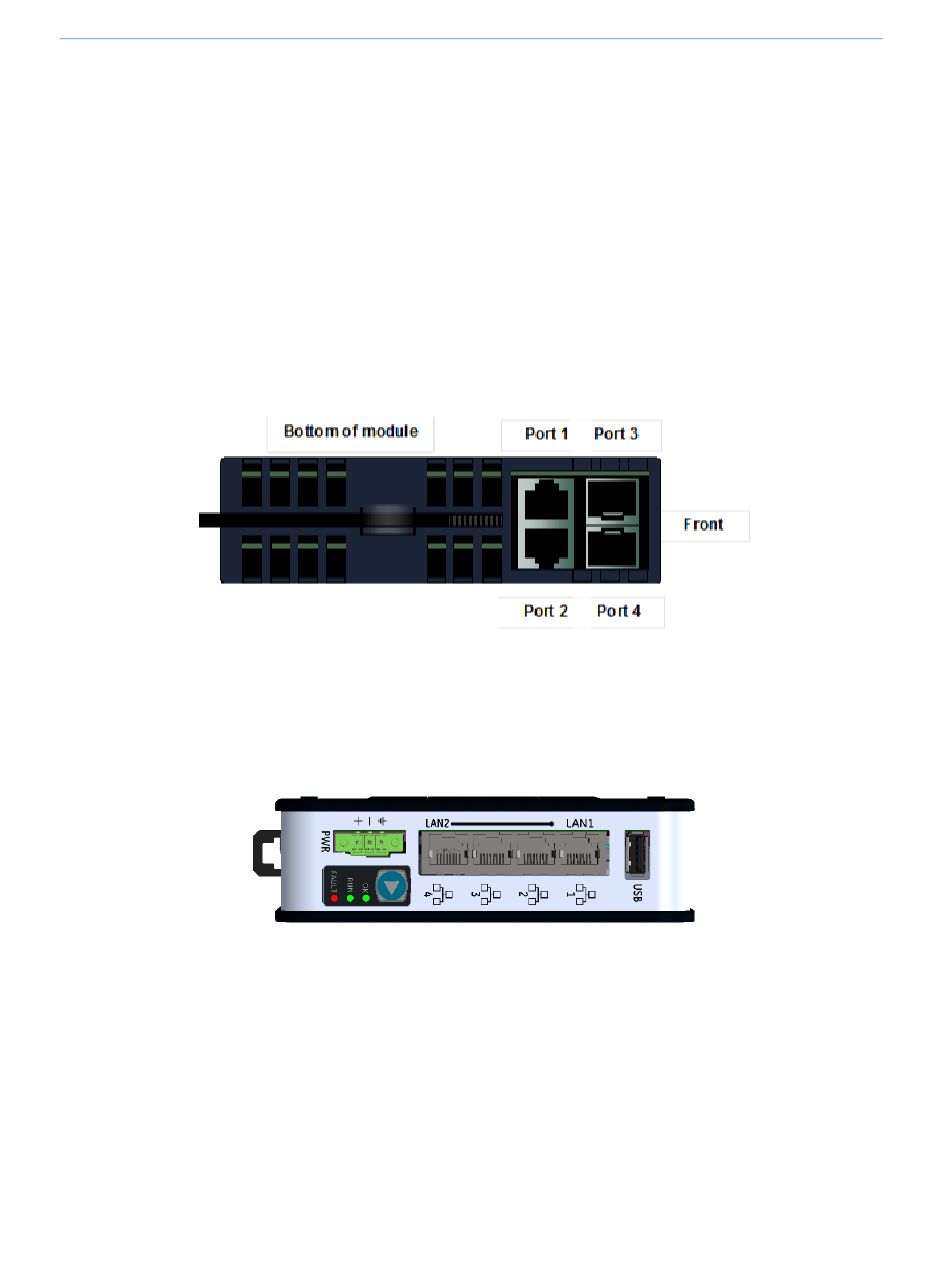

Figure 4 shows the underside of the PNC001 module.
•
Ports 1 and 2 are standard RJ45 connections.
•
Ports 3 and 4 offer Small Form-factor Pluggable (SFP) cages
The PROFINET Controller connects to a PROFINET network via one or more of its four external switch ports.
Two 8-conductor RJ45 shielded twisted pair 10/100/1000 Mbps copper interfaces and two SFP cages provide
flexibility in media selection and the ability to use redundant media for the PROFINET network. Use of
redundant media must first be set up in the module configuration. Chapter 6 provides additional information
about Redundant Media.
The PROFINET protocol supported by the PACSystems RX3i PROFINET modules can be sent and received over
any of the four external ports on PNC001.
The PNC001 module is assigned five Ethernet MAC addresses: one for each of the four external Ethernet ports
and one for the internal switch.
For the Embedded PROFINET LAN (LAN2), CPE400 and CPE330 both provide two RJ45 ports identical to those
shown as Port 1 and Port 2 in Figure 4. The operational behavior, configuration parameters and diagnostics are
also identical. Refer to the corresponding product documentation for further details.
Small Form-factor Pluggable (SFP) cages (like Port 3 and Port 4 in Figure 4) are not offered on CPE400, CPE330
nor on CPE100/CPE115.
Figure 5: CPE100/CPE115 Ethernet Ports Location and Type
The CPE100/CPE115 Embedded PROFINET LAN (LAN2) supports three switched 8-conductor RJ45 shielded
twisted pair 10/100 Mbps copper interfaces ports as shown in Figure 5. The operational behavior, configuration
parameters and diagnostics are identical to PROFINET port of CPE400. Refer to the corresponding product
documentation for further details.
CPE100/CPE115 LAN2 Port 2 and Port 3 have the ability to use redundant media for the PROFINET network.
Use of redundant media must first be set up in the module configuration. Chapter 6 provides additional
information about Redundant Media.
12
PACSystems* RX3i & RSTi-EP PROFINET IO-Controller User Manual
Figure 4: PNC001 Ethernet Ports Location and Type
GFK-2571N
