Configuring Sub-Modules of a Third-Party IO-Device

To configure the sub-modules of a third-party IO-Device, expand it in the Navigator. For example:

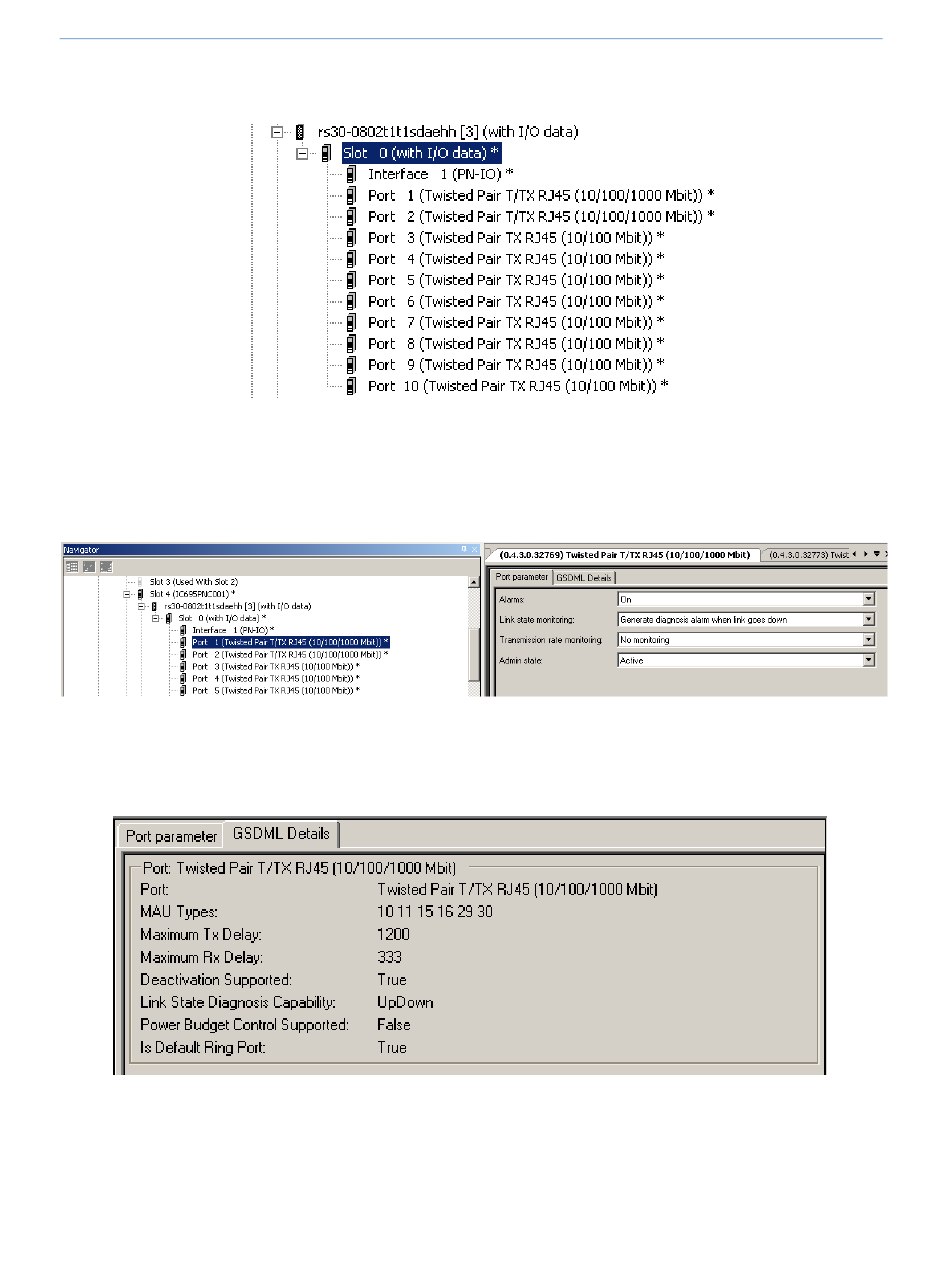

The device in Figure 79 is a switch. The parameters of its ports can be viewed and edited by either double-
clicking on a port, or selecting a port then right-clicking and selecting Configure from the menu.
For this IO-Device, the port parameters appear for editing (Figure 80).
Figure 80: Editing Port Parameters on Third-Party I/O Device
3.8.2.1 Sub-Module Parameters (GSDML Tab)
The GSDML Details tab displays the device's GSDML parameters, which cannot be edited.
78 PACSystems* RX3i & RSTi-EP PROFINET IO-Controller User Manual
Figure 79: Expand Third-Party I/O Device
Figure 81: Display of GSDML for Third-Party I/O Device
