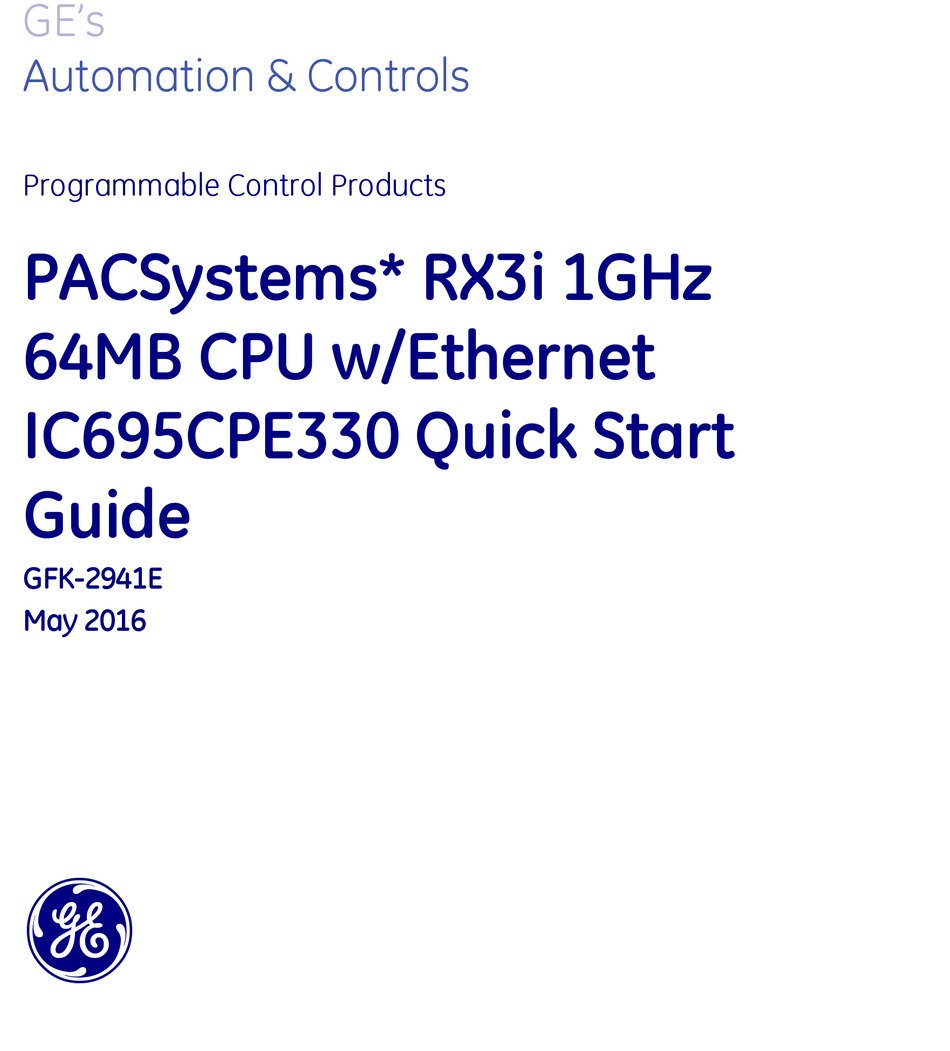

GE's
Automation & Controls
Programmable Control Products
PACSystems* RX3i 1GHz
64MB CPU w/Ethernet
IC695CPE330 Quick Start
Guide
GFK-2941E
May 2016
g

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PACSystems* RX3i and is the answer not in the manual?

Questions and answers

Related Manuals for GE PACSystems* RX3i

Summary of Contents for GE PACSystems* RX3i

  • Page 1 GE’s Automation & Controls Programmable Control Products PACSystems* RX3i 1GHz 64MB CPU w/Ethernet IC695CPE330 Quick Start Guide GFK-2941E May 2016...

  • Page 2: Table Of Contents

    3.5. Backward Compatibility with CPU320/CRU320/CPU315 ........13 3.6. Removable Data Storage Device (RDSD) ..............16 Periodic Maintenance ....................16 4.1. Real-Time Clock Battery ..................16 4.2. Spare Parts .......................16 Additional Information ....................17 PACSystems* RX3i 1GHz 64MB CPU w/Ethernet Quick Start Guide GFK-2941E...

  • Page 3: User Features

    1. User Features The PACSystems* RX3i CPE330 is a richly featured programmable controller CPU equipped with a 1GHz dual-core microprocessor, 64Mbytes of built-in program memory and two independent high-speed Ethernet interfaces. It is ideally suited for multi-tier communications and for synchronizing large amounts of data.
  • Page 4 • Supports up to 512 program blocks. Maximum size for a block is 128KB. • For supported I/O, Communications, Motion, and Intelligent modules, refer to the PACSystems RX3i System Manual, GFK-2314. Achilles Level 2 Communications Certification available in CPE330 R8.80 PACSystems* RX3i 1GHz 64MB CPU w/Ethernet Quick Start Guide GFK-2941E...

  • Page 5: Switches

    • Ability to display serial number and date code in PME Device Information Details. • Operating temperature range 0°C to 60°C (32 °F to 140 °F). 1.1. Switches The Run/Stop switch and RDSD UPLD and RDSD DNLD pushbuttons are located behind the protective front door.

  • Page 6: Light-Emitting Diode Indicators (Leds)

    Override is active on a bit reference. No Overrides active in I/O Reference Tables. RDSD On Green USB Device detected (No Activity) Blinking Port activity detected on USB Interface Green PACSystems* RX3i 1GHz 64MB CPU w/Ethernet Quick Start Guide GFK-2941E...

  • Page 7: Ethernet Ports

    LED State Operating State No port activity detected on USB Interface On Red RDSD Failure Blinking Target name mismatch: Press same RDSD pushbutton again to dismiss. SYS FLT On Red CPU is in Stop/Faulted mode: a fatal fault has occurred. No fatal faults detected.
  • Page 8 Any of the embedded Ethernet ports may be used to communicate with the PME programming software using the Service Request Transport Protocol (SRTP, a proprietary GE protocol, used primarily for communication with the programmer). To establish Ethernet communications between the PME programming and configuration software and the CPU, you first need to set an IP address.
  • Page 9 Figure 2: Typical Multi-tier LAN Application A typical application will take advantage of the two independent LANs. The dedicated LAN1 port will be used for communications with plant-level or supervisory layers. The switched LAN2 will typically be used to communicate with devices within the manufacturing cell or process, including local HMI devices and micro-controllers.

  • Page 10: Hardware Installation

    As the consignee, it is your responsibility to register a claim with the carrier for damage incurred during shipment. GE’s Automation & Controls will fully cooperate with you, however, should such action be necessary. After unpacking the RX3i equipment, record all serial numbers. Serial numbers are required if you should need to contact Customer Care during the warranty period.

  • Page 11: Installation In Hazardous Areas

    2.3. Installation in Hazardous Areas The following information is for products bearing the UL marking for Hazardous Areas or ATEX marking for explosive atmospheres: CLASS 1 DIVISION 2 GROUPS ABCD • This equipment is an open-type device and is meant to be installed in an enclosure suitable for the environment that is only accessible with the use of a tool.

  • Page 12: Module Start-Up

    Note: on lightly-loaded racks, use IC695PSA040H or later, or IC695PSA140D or later, otherwise power-up may be unsuccessful. Alternately, fill out the empty slots in the rack so as to draw more current. PACSystems* RX3i 1GHz 64MB CPU w/Ethernet Quick Start Guide GFK-2941E...

  • Page 13: Redundancy Configuration

    IC695ACC402 Quick Start Guide, GFK-2939. Secure the two retention flat-head screws with a very small slotted screwdriver. 3. Set the pair of hook tabs at top rear of the CPU module into two adjacent notches on the alignment rail of the RX3i rack backplane. This aligns the module with the intended slots in the main rack and with the right-side connector of this pair.

  • Page 14: Profinet Controller Configuration

    Hold down the RDSD UPLD button and turn power on to the CPE330. Continue to depress the RDSD UPLD button until the CPE330 powers up and displays one of the following patterns on the LEDs. PACSystems* RX3i 1GHz 64MB CPU w/Ethernet Quick Start Guide GFK-2941E...
  • Page 15 Blinking CPU Status Indicators CPE330 LED LED State Operating State CPU OK On Amber Normal mode. (Compatible with CPU320) FORCE On Amber RDSD On Red OUT EN SYS FLT On Red CPU OK On Amber CRU320 Compatibility mode. FORCE On Amber On Red RDSD OUT EN...
  • Page 16 When the compatibility setting is Normal (CPU320), the catalog number is listed as “IC695CPE330”. When the compatibility setting is CRU320 compatibility mode, the catalog number is listed as “IC695CPE330 CRU320 Compatibility Mode”. PACSystems* RX3i 1GHz 64MB CPU w/Ethernet Quick Start Guide GFK-2941E...

  • Page 17: Removable Data Storage Device (Rdsd)

    3.6. Removable Data Storage Device (RDSD) The CPE330 user program and/or memory contents may be saved to a USB device via the RDSD UPLD pushbutton or loaded into the CPU from a USB device via the RDSD DNLD pushbutton. Similarly, data can be selected and saved. In this way, an application may be cloned and copied from one device to another.

  • Page 18: Additional Information

    User manuals, product updates and other information sources are available on the Support website, under Controllers and IO, RX3i Controllers. www.geautomation.com GE’s Automation & Controls Contact Information Americas: 1-800-433-2682 or 1-434-978-5100 Global regional phone numbers are available on our web site www.geautomation.com...
